RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB5530B564RF FILTER BAND PASS 5.53GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 5.53GHz Center | 20MHz | Band Pass | 0.2dB | 1.75dB | Chassis Mount | 3.283" L x 3.283" W (83.40mm x 83.40mm) | 1.354" (34.40mm) |
|
|
AE60B11156RF FILTER BAND PASS 60MHZ 10DIP |
100 |
|
Datasheet |
- | 10-DIP Module | Box | Active | 60MHz Center | 10MHz | Band Pass | - | 2dB | Through Hole | 2.500" L x 1.000" W (63.50mm x 25.40mm) | 0.600" (15.24mm) |
|
AB829B1038RF FILTER BANDPASS 829MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 829MHz Center | 8MHz | Band Pass | - | 1.5dB | Chassis Mount | 8.750" L x 4.750" W (222.25mm x 120.65mm) | 2.090" (53.09mm) |
|
AB542B1314RF FILTER BANDPASS 542MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 542MHz Center | 52MHz | Band Pass | - | 1dB | Chassis Mount | 5.830" L x 2.760" W (148.08mm x 70.10mm) | 2.360" (59.94mm) |
|
AE2000SSH6549RF FILTER HIGH PASS 2GHZ MODULE |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 2GHz (Cutoff) | 11GHz | High Pass | - | 2dB | Chassis Mount | 2.205" L x 1.417" W (56.00mm x 36.00mm) | 0.406" (10.30mm) |
|
|
LPH-1800-NRF FILTER LOW PASS 18GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 18GHz (Cutoff) | - | Low Pass | - | 0.7dB | Chassis Mount | 1.732" L x 0.500" W (44.00mm x 12.70mm) | 0.512" (13.00mm) |
|
AE164B11875RF FILTER BANDPASS 162MHZ MODULE |
100 |
|
- |
- | Module | Box | Active | 162MHz Center | 24MHz | Band Pass | - | - | Chassis Mount | - | - |
|
AE1000H9910RF FILTER HIGH PASS 1GHZ MODULE |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 1GHz (Cutoff) | 5GHz | High Pass | - | 2dB | Chassis Mount | 4.016" L x 1.535" W (102.00mm x 39.00mm) | 0.394" (10.00mm) |
|

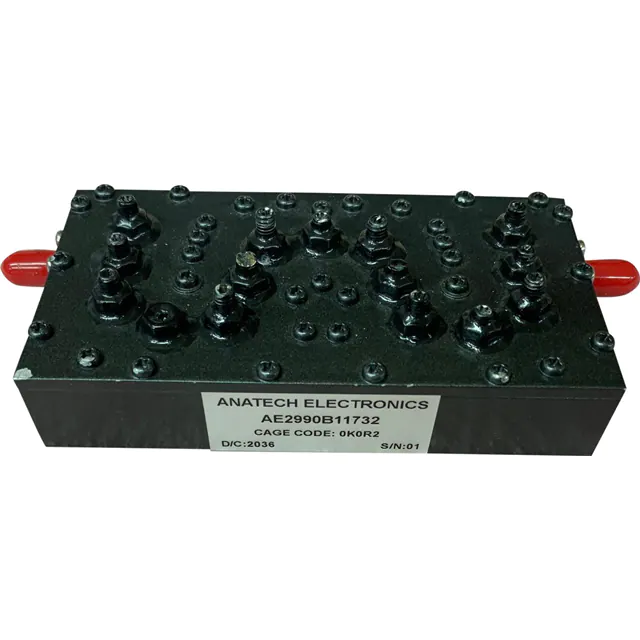

AE2990B11732RF FILTER BAND PASS 2.99GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.99GHz Center | 240MHz | Band Pass | - | 2dB | Chassis Mount | 4.252" L x 2.205" W (108.00mm x 56.00mm) | 1.181" (30.00mm) |
|
|
PE8702RF FILTER BANDPASS 5.8GHZ MODULE |
42 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 5.8GHz Center | 150MHz | Band Pass | - | 1dB | Chassis Mount | 1.902" L x 0.701" W (48.30mm x 17.80mm) | 0.531" (13.50mm) |
|
|
AE20B9600RF FILTER BAND PASS 20MHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 20MHz Center | 2MHz | Band Pass | - | 2dB | Chassis Mount | 2.500" L x 1.125" W (63.50mm x 28.58mm) | 0.762" (19.35mm) |
|

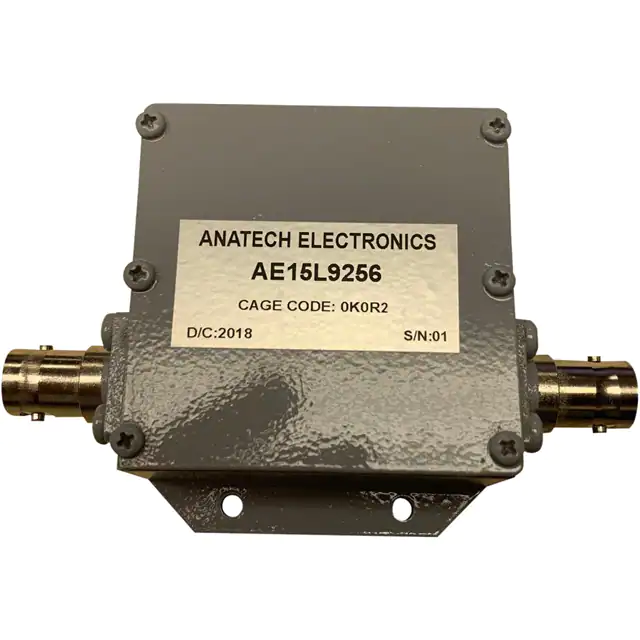

AE15L9256RF FILTER LOW PASS 15MHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 15MHz (Cutoff) | - | Low Pass | - | 0.5dB | Chassis Mount | 2.000" L x 2.000" W (50.80mm x 50.80mm) | 1.612" (40.94mm) |
|
|
AE1200B8926RF FILTER BANDPASS 1.2GHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 1.2GHz Center | 40MHz | Band Pass | 0.2dB | 1dB | Chassis Mount | 1.800" L x 1.000" W (45.72mm x 25.40mm) | 0.380" (9.66mm) |
|
|
AB1685B910RF FILTER BAND PASS 1.685GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 1.685GHz Center | 30MHz | Band Pass | - | 3dB | Chassis Mount | 3.701" L x 2.362" W (94.00mm x 60.00mm) | 1.339" (34.00mm) |
|
|
AB1775B1236RF FILTER BAND PASS 1.775GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.775GHz Center | 150MHz | Band Pass | - | 2dB | Chassis Mount | 3.110" L x 1.850" W (79.00mm x 47.00mm) | 1.575" (40.00mm) |
|
AE2200B11704RF FILTER BANDPASS 2.2GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.2GHz Center | 30MHz | Band Pass | - | 1dB | Chassis Mount | 4.125" L x 1.500" W (104.78mm x 38.10mm) | 1.000" (25.40mm) |
|
AE2202B11714RF FILTER BANDPASS 2.2025GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.2025GHz Center | 15MHz | Band Pass | - | 2dB | Chassis Mount | 4.125" L x 1.500" W (104.78mm x 38.10mm) | 1.000" (25.40mm) |
|

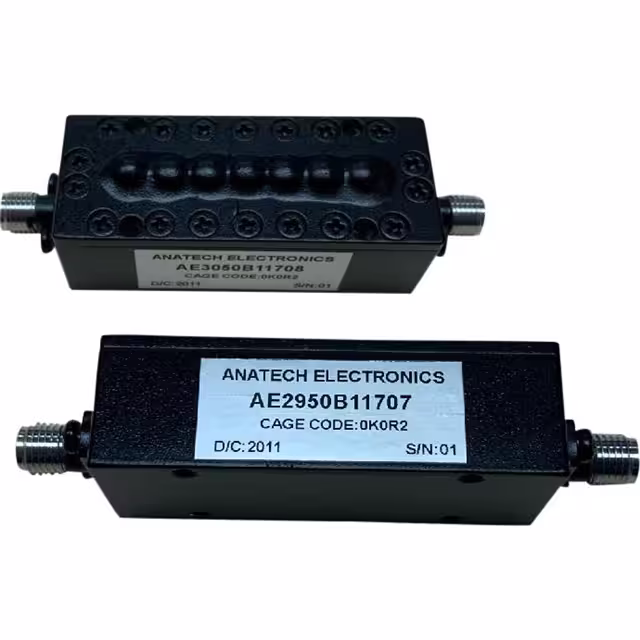

AE2950B11707RF FILTER BAND PASS 2.95GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.95GHz Center | 100MHz | Band Pass | - | 0.7dB | Chassis Mount | 1.969" L x 0.787" W (50.00mm x 20.00mm) | 0.748" (19.00mm) |
|
AE18000SSH6577RF FILTER HIGH PASS 18GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 18GHz (Cutoff) | 10GHz | High Pass | - | 2dB | Chassis Mount | 0.709" L x 0.630" W (18.00mm x 16.00mm) | 0.394" (10.00mm) |
|
AB6480B1242RF FILTER BAND PASS 6.48GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 6.48GHz Center | 130MHz | Band Pass | - | 1dB | Chassis Mount | 4.724" L x 1.980" W (120.00mm x 50.30mm) | 0.866" (22.00mm) |
RF Filters Electronic Components
Explore RF Filters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
