RF Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB2350B890RF FILTER BAND PASS 2.35GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.35GHz Center | 100MHz | Band Pass | 0.5dB | 1.5dB | Chassis Mount | 3.996" L x 1.575" W (101.50mm x 40.00mm) | 1.402" (35.60mm) |
|
AE1B9592RF FILTER BAND PASS 1MHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 1MHz Center | 400kHz | Band Pass | - | 2dB | Chassis Mount | 2.500" L x 1.125" W (63.50mm x 28.58mm) | 0.750" (19.05mm) |
|
AE3500B11586RF FILTER BANDPASS 3.5GHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 3.5GHz Center | 1.6GHz | Band Pass | - | 1.5dB | Chassis Mount | 2.835" L x 1.102" W (72.00mm x 28.00mm) | 0.445" (11.30mm) |
|
AE600L7838RF FILTER LOW PASS 600MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 600MHz (Cutoff) | - | Low Pass | - | 0.3dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.762" (19.35mm) |
|
|
AB5785B741RF FILTER BAND PASS 5.785GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 5.785GHz Center | 100MHz | Band Pass | - | 2dB | Chassis Mount | 3.780" L x 2.835" W (96.00mm x 72.00mm) | 1.272" (32.30mm) |
|
|
AE460B11815RF FILTER BANDPASS 460MHZ MODULE |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 460MHz Center | 20MHz | Band Pass | - | 1dB | Chassis Mount | 5.827" L x 2.756" W (148.00mm x 70.00mm) | 2.677" (68.00mm) |
|
|
AB2340B876RF FILTER BAND PASS 2.34GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.34GHz Center | 30MHz | Band Pass | 0.1dB | 1dB | Chassis Mount | 1.750" L x 1.000" W (44.45mm x 25.40mm) | 0.500" (12.70mm) |
|
AE800H9821RF FILTER HI PASS 800MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 800MHz (Cutoff) | 1.4GHz | High Pass | - | 2dB | Chassis Mount | 2.500" L x 0.750" W (63.50mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AE4550B10927RF FILTER BAND STOP 4.55GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 4.55GHz Center | 200MHz | Band Stop | - | 1dB | Chassis Mount | 5.750" L x 4.500" W (146.05mm x 114.30mm) | 1.050" (26.67mm) |
|
|
AE19000SSL1026RF FILTER LOW PASS 19GHZ MODULE |
100 |
|
- |
- | Module, SMA Connectors | Box | Active | 19GHz (Cutoff) | - | Low Pass | - | 3dB | Chassis Mount | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.406" (10.30mm) |
|
AE450B10322RF FILTER BANDPASS 450MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 450MHz Center | 10MHz | Band Pass | - | 1.5dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AE1764B9812RF FILTER BAND PASS 1.764GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.764GHz Center | 2MHz | Band Pass | - | 4dB | Chassis Mount | 4.500" L x 1.750" W (114.30mm x 44.45mm) | 1.000" (25.40mm) |
|
|
AE5550B11695RF FILTER BAND PASS 5.55GHZ MOD |
100 |
|
Datasheet |
- | Module | Box | Active | 5.55GHz Center | 902MHz | Band Pass | - | 1dB | Chassis Mount | 6.449" L x 0.984" W (163.80mm x 25.00mm) | 0.878" (22.30mm) |
|

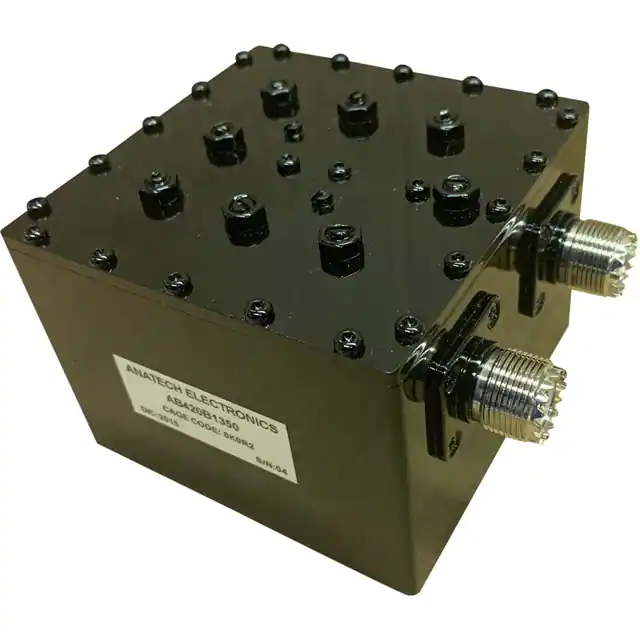

AB420B1350RF FILTER BANDPASS 420MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 420MHz Center | 20MHz | Band Pass | - | 1dB | Chassis Mount | 3.602" L x 3.602" W (91.50mm x 91.50mm) | 2.913" (74.00mm) |
|
|
AE783B10957RF FILTER BANDPASS 783MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 783MHz Center | 20MHz | Band Pass | - | 1dB | Chassis Mount | 3.307" L x 2.055" W (84.00mm x 52.20mm) | 2.362" (60.00mm) |
|
|
AE30L9122RF FILTER LOW PASS 30MHZ MODULE |
100 |
|
Datasheet |
- | Module | Box | Active | 30MHz (Cutoff) | 29MHz | Low Pass | - | 1dB | Chassis Mount | 6.000" L x 2.000" W (152.40mm x 50.80mm) | 1.512" (38.40mm) |
|
AE400H9032RF FILTER HI PASS 400MHZ MODULE |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 400MHz (Cutoff) | 5.6GHz | High Pass | 0.1dB | 1dB | Chassis Mount | 0.750" L x 0.625" W (19.05mm x 15.88mm) | 0.500" (12.70mm) |
|
|
AE05B9591RF FILTER BAND PASS 500KHZ BNC |
100 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 500KHz Center | 60kHz | Band Pass | - | 2dB | Chassis Mount | 2.500" L x 1.125" W (63.50mm x 28.58mm) | 0.750" (19.05mm) |
|
|
AB2412B498RF FILTER BAND PASS 2.412GHZ MOD |
100 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.412GHz Center | 11MHz | Band Pass | - | 1.5dB | Chassis Mount | 3.110" L x 2.165" W (79.00mm x 55.00mm) | 1.073" (27.25mm) |
|
|
AE3750N2263RF FILTER BAND STOP 3.75GHZ MOD |
100 |
|
- |
- | Module | Box | Active | 3.75GHz Center | 900MHz | Band Stop | - | - | Chassis Mount | - | - |
RF Filters Electronic Components
Explore RF Filters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
