RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2195846-8FPC ANT, MHF4L, 200MM, 698-7125 |
1,078 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 4 | - | 4.99dBi | - | Cable - 200mm | MHF4L | - | - | - | Adhesive, Chassis Mount | - | 4G, LTE, GNSS |
|
2344657-4FPC ANTENNA, CABLE, MHF, WI-FI T |
4,730 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2.7 | - | 5.3dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.007" (0.19mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1461850050RF ANT 892MHZ/1.9GHZ FLAT PATCH |
2,509 |
|
Datasheet |
146185 | Bulk | Active | Cellular, WiFi | Wide Band | 892MHz, 1.9GHz, 4.5GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3GHZ ~ 6GHz | Flat Patch | 3 | - | -6dB | 4.2dB | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | WLAN |
|
W2P15X7W04-U100D3B0AANT ASSY, WLAN2 04 100 D0230 |
1,690 |
|
Datasheet |
- | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.5GHz, 6.525GHz | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 2 | - | -9dB, -7.3dB | 4.3dBi, 3.9dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Wi-Fi |
|
2118909-1WLAN TRIPLE BAND ANT MHF CABLE 1 |
1,577 |
|
Datasheet |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.5GHz, 5.5125GHz, 6.525GHz | 2.3GHz ~ 2.7GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2, 2.5 | - | 4.2dBi, 4.2dBi, 4.2dBi | - | Cable - 120mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1461860150RF ANT 1.561/1.575GHZ FLAT 150MM |
2,578 |
|
Datasheet |
146186 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | Flat Patch | 5 | - | -10dB | 2.85dBi, 3.75dBi, 4.5dBi | 2 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|

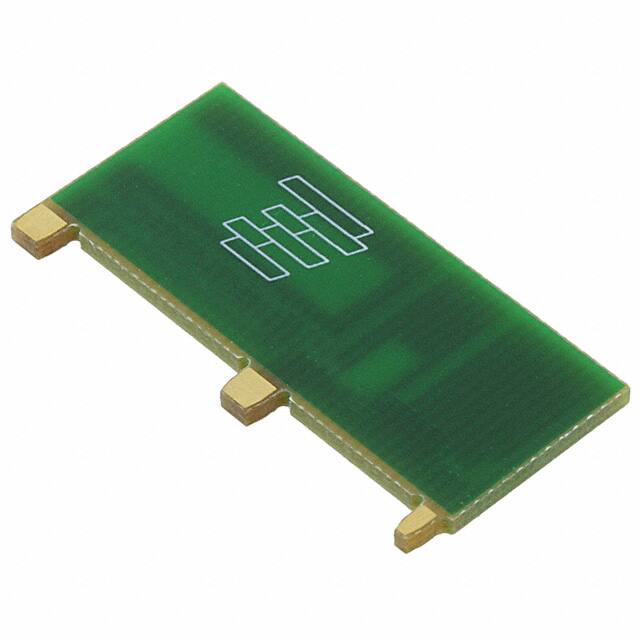

1513273-1RF ANT 850MHZ/900MHZ PCB TRACE |
3,565 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 2 | 3 | - | 2dBi | 10 W | - | Solder | - | - | - | Through Hole | 0.595" (15.11mm) | CDMA, GSM, LTE, ZigBee™ |
|
APAKN2504-S2448-TRF ANT 2.4GHZ CER PATCH SLDR SMD |
2,486 |
|
Datasheet |
APAK | Tray | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.412GHz ~ 2.484GHz | Ceramic Patch | 1 | - | -10dB | 7dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
1513353-1RF ANT 2.4GHZ PCB TRACE SLDR SMD |
5,372 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2 | - | 2dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.78mm) | Bluetooth, WLAN, Zigbee™ |
|
|
1-2118909-2PCB ANT, MHF, 100MM, WI-FI 6E TR |
2,843 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | - | 4.2dBi | - | Cable - 100mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
RFMTA310819IMAB701RF ANT 2.4GHZ STAMPED MET IPEX |
3,014 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | -10dB | 5.8dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.331" (8.40mm) | ISM |
|
UWC.403~5GHZ ULTRA-WIDE BAND (UWB) SMD |
1,831 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 3.49GHz, 3.985GHz, 3.99GHz, 4.49GHz | 3.1GHz ~ 4.75GHz | Chip | 4 | 2.5, 2.8, 3.8, 2.8 | -7.5dB, -6.5dB, -5dB, -5dB | 3.5dBi, 4.5dBi, 4dBi, 4dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | General Purpose |
|
1462000011RF ANT CER PATCH SOLDER SMD |
8,592 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Ceramic Patch | 2 | - | -5dB | 0.5dBi, 3.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | LTE |
.jpg)
|
ANT-418-PW-RARF ANT 418MHZ WHIP TILT SCREW-MT |
377 |
|
Datasheet |
RA | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 409MHz ~ 427MHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | Screw-Mount | - | - | - | Panel Mount | 5.180" (131.57mm) | Alarms, ISM, Remote Control, Security Systems |
|
|
SR4L069ALLANI SMD 5G CELLULAR ANTENNA |
1,720 |
|
Datasheet |
lamiiANT® | Tape & Reel (TR) | Active | Cellular | Wide Band | 720.5MHz, 892MHz, 1.94GHz, 2.35GHz, 2.595GHz, 3.55GHz | 617MHz ~ 698MHz, 824MHz ~ 803MHz, 1.71GHz ~ 894MHz, 2.3GHz ~ 1.518GHz, 2.5GHz ~ 1.661GHz, 3.3GHz ~ 2.2GHz, | Flat Bar | 6 | 2.2, 2.3, 2.4, 3.3, 3.6 | -8.5dB, -8dB, -7.7dB, -5.5dB, -5dB | -0.2dBi, 1.6dBi, 4.1dBi, 3.4dBi, 5.1dBi, 5.4dBi | - | - | - | - | - | - | Surface Mount | 0.130" (3.30mm) | 4G, 5G, DCS, GSM, LTE, WCDMA |
|
|
1-2118909-4PCB ANT, MHF, 200MM, WI-FI 6E TR |
2,644 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | - | 4.3dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ANT-LPC-FPC-150RF ANT LTE CBRS FLEX ADHES UFL |
1,731 |
|
Datasheet |
FPC | Bag | Active | 802.15.4, Bluetooth, General ISM, Navigation, WiFi | Wide Band | 750MHz, 876MHz, 1.58GHz, 1.96GHz, 2.35GHz, 2.44GHz, 2.59GHz, 3.55GHz | 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Flat Patch | 8 | 8.2, 4.8, 1.7, 4.9, 3.5, 2.7, 3.1, 2 | - | 0.1dBi, 3.7dBi, 3.3dBi, 2.2dBi, 3.3dBi, 3.9dBi, 5dBi, 5.7dBi | 2 W | Cable - 150mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.008" (0.20mm) | General Purpose |
|
1462200100RF ANT 1.561/1.575GHZ PCB 100MM |
724 |
|
Datasheet |
146220 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | PCB Trace | 5 | - | -8dB | 2.4dBi, 2.9dBi, 3.5dBi, 3.8dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.032" (0.81mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|
W2P15X7W04-H100D3B0AANT ASSY, WLAN2 04 100 D0230 |
910 |
|
Datasheet |
W | Box | Active | WiFi | SHF (f > 4GHz) | 5.5GHz, 6.525GHz | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 2 | - | -9dB, -7.3dB | 4.3dBi, 3.9dBi | - | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.016" (0.40mm) | Wi-Fi |
|
W1697ANT EXT 0.617-3.8GHZ RPSMA |
291 |
|
Datasheet |
Stubby Antenna | Tray | Active | Cellular | Wide Band | 788.5MHz, 2.2GHz, 3.6GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Whip, Straight | 3 | - | -5dB, -4dB | -0.5dBi, 1dBi, 0dBi | 5 W | - | RP-SMA Male | IP42 | - | - | Connector Mount | 1.953" (49.60mm) | LTE |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
