| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT1204LL08R0870ARF ANT 870MHZ CHIP SOLDER SMD |
5,951 |
|
Datasheet |
1204 | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 870MHz | 853MHz ~ 887MHz | Chip | 1 | 1.92 | -10dB | 1.51dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | - |
|
ANT-315-SPRF ANT 315MHZ CHIP SOLDER SMD |
197 |
|
Datasheet |
Splatch® | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 315MHz | 312MHz ~ 317MHz | Chip | 1 | 1.9 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Alarms, ISM, Remote Control, Security Systems |
|
2195846-6FPC ANT, MHF4L, 100MM, 698-7125 |
1,282 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 4 | - | 4.99dBi | - | Cable - 100mm | MHF4L | - | - | - | Adhesive, Chassis Mount | - | 4G, LTE, GNSS |
|
2344655-2WLAN DUAL BAND ANTENNA PCB H 100 |
3,375 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 2dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
W3917B0100RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
1,791 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 4dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
ANT-2.4-JJB-RARF ANT 2.4GHZ DOME SLD TH 7MM |
400 |
|
Datasheet |
JJB | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.39GHz ~ 2.48GHz | Whip, Right Angle | 1 | 2 | - | 3.3dBi | - | - | Solder | - | - | - | Through Hole | 0.571" (14.50mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
SRFC011-150RF ANT 892MHZ/1.9GHZ FLAT PATCH |
473 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 2 | 2.2 | -12dB | 4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, WCDMA |
|
2195846-7FPC ANT, MHF4L, 150MM, 698-7125 |
1,368 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 4 | - | 4.99dBi | - | Cable - 150mm | MHF4L | - | - | - | Adhesive, Chassis Mount | - | 4G, LTE, GNSS |
|
2195846-4FPC ANT, MHF, 200MM, 698-7125 MH |
706 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 4 | - | 4.99dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive, Chassis Mount | - | 4G, LTE, GNSS |
|
W2F15X7W01-U100D3B0CANT ASSY, WLAN2 04 100 D0230 |
657 |
|
Datasheet |
W | Box | Active | WiFi | SHF (f > 4GHz) | 5.5GHz, 6.525GHz | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 2 | - | -9dB, -7.3dB | 4.3dBi, 3.9dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Wi-Fi |
|
W3100BANT HELICAL COIL 868MHZ |
880 |
|
Datasheet |
Helix Coil | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Helical | 1 | 2 | - | 0dBi | 2 W | - | Solder | - | - | - | Solder | 0.386" (9.80mm) | ISM |
|
APAKN1804-C2G-TRF ANT 1.575/1.602GHZ CER PATCH |
2,525 |
|
Datasheet |
APAK | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | - | -10dB, -10dB | 2.8dBi, 2.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Galileo, GLONASS, GNSS, GPS |
|
2118439-3RF ANT 2.44/5.387GHZ PCB TRACE |
1,758 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.387GHz | 2.4GHz ~ 2.483.5GHz, 4.9GHz ~ 5.875GHz | PCB Trace | 2 | - | - | - | - | Cable - 160mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.065" (1.65mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
APAGM2525-S2450RF ANT 2.4GHZ RHCP WIFI/BL PATCH |
735 |
|
Datasheet |
APAG | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | 1.5 | -10dB | 4.5dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
ABR3407I8-0100SRF ANT 868MHZ PCB IPEX |
333 |
|
Datasheet |
- | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 868MHz ~ 870MHz | PCB Trace | 1 | - | -21.66dB | 1.28dBi | - | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.031" (0.80mm) | ISM, LoRa, LPWAN, Sigfox |
|
ANT-W63-FPC-SH100M4ANT WIFI6 FPC 25X20 100MM MHF4 |
1,858 |
|
Datasheet |
ANT-W63-FPC-SH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.5, 1.6, 1.8 | - | 4.7dBi, 7.8dBi, 8.5dBi | 2 W | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/-c/ax, Bluetooth, ISM, U-NII, Wi-Fi, Zigbee™ |
|
2344655-7WLAN DUAL BAND ANTENNA PCB H 150 |
1,958 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|

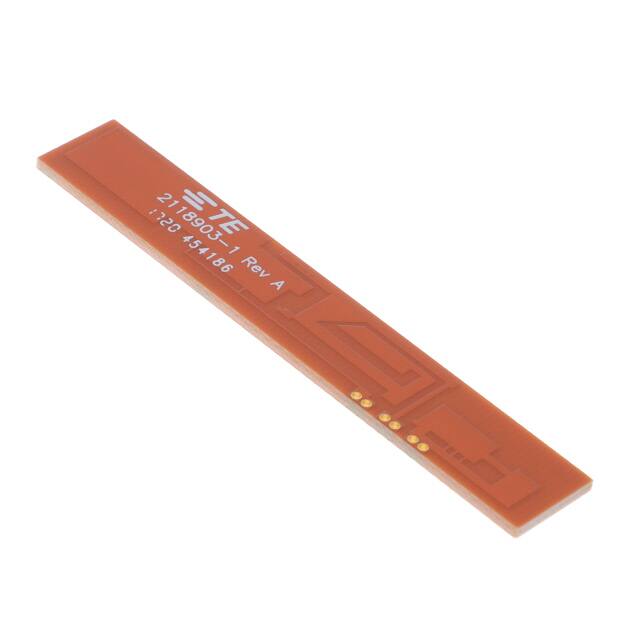

2118903-1LTE/CELL BAND ANTENNA |
970 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MH, 1.94GHz, 2.045GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 4 | 3 | -7dB | 2.65dBi, 2.87dBi, 3.76dBi | - | - | Solder | - | - | - | Surface Mount | 0.065" (1.64mm) | LTE, UMTS, WCDMA |
|
ANT-ELE-S01-011RF ANT 2.4GHZ DOME M5 CONN MAG |
106 |
|
Datasheet |
MAG | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 2 | - | - | - | - | M5 | - | - | - | Magnetic | 1.020" (25.91mm) | - |
|
ANT-868-PW-RARF ANT 868MHZ WHIP TILT SCREW-MT |
500 |
|
Datasheet |
RA | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 780MHz ~ 960MHz | Whip, Tilt | 1 | 1.9 | - | 4dBi | - | - | Screw-Mount | - | - | - | Panel Mount | 3.898" (99.00mm) | ISM, LoRa, Sensor Networks, SigFox |
