RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3312B0100RF ANT 892MHZ PCB TRACE U.FL ADH |
3,765 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 892MHz | 863MHz ~ 928MHz | PCB Trace | 2 | - | -8dB | 0.8dBi | 2 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.044" (1.13mm) | ISM |
|
EFF6060A3S-15MHF1REVIE 600 5G CAT M1 NB-IOT ANT |
215 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Adhesive | - | - |
|

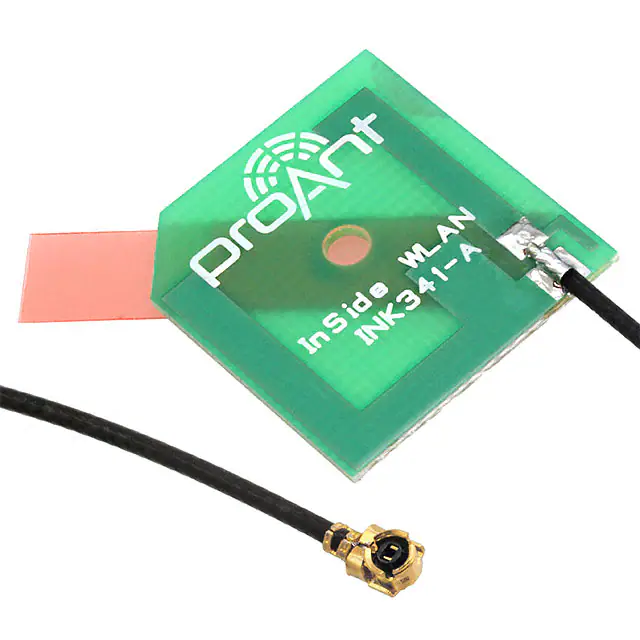

PRO-IS-432RF ANT 2.4/5.5GHZ PCB TRACE CAB |
2,907 |
|
Datasheet |
Embedded Antenna | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.18GHz ~ 5.875GHz | PCB Trace | 2 | - | - | 3dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | WLAN |
|
P822602RF ANT 700MHZ/750MHZ FLAT BAR |
4,845 |
|
Datasheet |
Prestta™ | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz | 700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Flat Bar | 8 | 2.5 | - | 1.1dBi, 1.7dBi, 1.8dBi, 2.2dBi, 3.9dBi, 3.8dBi, 3.4dBi, 3.6dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|
WAP3015W08-U100D3B0AANTENNA ASSY, WI-FI LEFT, 100 D0 |
866 |
|
Datasheet |
- | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8.4dB, 8.7dB | 3dBi, 6.7dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.031" (0.80mm) | Wi-Fi |
|
ANT-ELE-S01-006RF ANT 892MHZ/1.795GHZ WHIP STR |
239 |
|
Datasheet |
MAG | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Whip, Straight | 2 | 1.5 | - | 0.5dBi, 3.7dBi | - | - | M5 | - | - | - | Magnetic | 9.180" (233.17mm) | - |
|
|
2118907-3PCB ANT. MHF, 100MM, WI-FI 6E TR |
2,957 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.2dBi | - | Cable - 100mm | MHF | - | - | - | Adhesive | 0.013" (0.34mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
SRFL061-150LUTOSA LTE ANTENNA+150MM CABLE |
534 |
|
Datasheet |
FlexiiANT® | Bulk | Active | Cellular | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.47GHz, 1.955GHz, 2.35GHz, 2.595GHz, 3.55GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.42GHz ~ 1.52GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Flat Patch | 8 | 2.9, 3.1, 1.6, 1.7, 2.1, 1.5, 2, 2.4 | - | -4.2dBi, -3.2dBi, -2.3dBi, -2.2dBi, -2.1dBi, -1.8dBi, -1.9dBi, -2.2dBi | - | Cable - 150mm | I-PEX MHF | - | - | - | Adhesive | 0.006" (0.15mm) | 5G |
|
1001932FT-AA10L0200ANTENNA ASSY, WLAN 200 |
1,145 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 4.4dBi | 500 mW | Cable - 200mm | U.FL | - | - | - | Adhesive | 0.063" (1.60mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W1P35X8W04-H100D3B0AANTENNA ASSY, WLAN1 04 100 |
936 |
|
Datasheet |
W | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz | 2.4GHz ~ 2.48GHz | PCB Trace | 1 | - | -15dB | 2.8dBi | - | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
2118907-8PCB ANT. MHF4L, 150MM, WI-FI 6E |
356 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 150mm | MHF4L | - | - | - | Adhesive | 0.013" (0.34mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W1028BRF ANT 5.5GHZ WHIP TILT RP-SMA |
408 |
|
Datasheet |
- | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.386" (136.80mm) | WLAN |
|
|
2118907-9PCB ANT. MHF4L, 200MM, WI-FI 6E |
6,582 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 3.7dBi | - | Cable - 200mm | MHF4L | - | - | - | Adhesive | 0.013" (0.34mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ANT-GHEL2R-SMARF ANT 920MHZ/1.8GHZ WHIP RA |
166 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 920MHz, 1.8GHz | 890MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Whip, Right Angle | 2 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.323" (59.00mm) | General Purpose |
|
FLEXI-M4-433RF ANT 433MHZ WHIP STR |
337 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | - | - | - | - | - | Screw-Mount | - | - | - | Through Hole | 6.417" (163.00mm) | - |
|
20848201002.4/5GHZ MIMO 2X2 FLEXIBLE ANTEN |
2,865 |
|
Datasheet |
208482 | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8dB, -9dB, -13dB | 2.9dBi, 3.4dBi, 5dBi, 5.9dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.16mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
1461850100RF ANT 892MHZ/1.9GHZ FLAT 100MM |
1,062 |
|
Datasheet |
146185 | Bulk | Active | Cellular, WiFi | Wide Band | 892MHz, 1.9GHz, 4.5GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3GHZ ~ 6GHz | Flat Patch | 3 | - | -6dB | 4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | WLAN |
|
SRFC025-150RF ANT 892MHZ/1.9GHZ FLAT 150MM |
705 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 2 | 2.2 | -17dB | 5.4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, WCDMA |
|
GP.1575.15.4.B.02RF ANT 1.575GHZ CER PATCH PIN |
1,832 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 1.5 | -10dB | 1dBic | - | - | Pin | - | - | - | Adhesive | 0.177" (4.50mm) | GPS |
|
AEACAQ190012-S2400RF ANT 2.4GHZ WHIP STR IPEX MHF |
1,401 |
|
Datasheet |
AEAC | Bulk | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Whip, Straight | 1 | 2 | - | 5dBi | 10 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 7.480" (190.00mm) | ISM, Wi-Fi |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
