| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APAKN2504-C2G-TRF ANT 1.575/1.602GHZ CER PATCH |
1,923 |
|
Datasheet |
APAK | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | - | -10dB, -10dB | 3.6dBi, 3.6dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Galileo, GLONASS, GNSS, GPS |
|
W3213RF ANT 1.575GHZ CER PATCH PIN |
843 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.6 | - | -1.5dBic | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
W3230RF ANT 2.45GHZ CER PATCH PIN ADH |
182 |
|
Datasheet |
Ceramic Patch Antenna | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | - | -4dB | 6dBi | 5 W | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Bluetooth, Wi-Fi |
|
W3F35X8W01-U100D3B0CANTENNA ASSY, WLAN 04 100 F |
785 |
|
Datasheet |
W | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | -15dB, -10dB, -6dB | 2.3dBi, 5dBi, 2.5dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
1-2118909-1PCB ANT, MHF, 50MM, WI-FI 6E TRI |
2,775 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | - | 5dBi | - | Cable - 50mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
AFAG7020-S824RF ANT 2G/3G/GSM FLEX PCB |
1,147 |
|
Datasheet |
AFAG | Bulk | Active | Cellular | Wide Band | 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.2GHz | 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.71GHz ~ 1.99GHz, 1.85GHz ~ 2.69GHz | PCB Trace | 5 | 3 | - | 2dBi, 3.5dBi | 10 W | Cable - 120mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | 2G, 3G, DCS, GSM, PCS, UMTS |
|
|
YCGS004AACERAMIC ANTENNA,GNSS,SMD,9*9*4 |
956 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.576GHz | Ceramic Patch | 1 | 2 | - | -6.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | BeiDou, Galileo, GNSS, GPS |
|
7488910043RF ANT 433MHZ CHIP SOLDER SMD |
1,306 |
|
Datasheet |
WE-MCA | Tape & Reel (TR) | Active | Bluetooth, Cellular, WiFi | UHF (300MHz ~ 1GHz) | 433MHz | 423MHz ~ 443MHz | Chip | 1 | 2 | - | -4dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, GSM, WLAN |
|
RFPCA460611IMAB301RF ANT 2.4GHZ PCB TRACE IPEX MAL |
399 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | -10dB | 3.8dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.051" (1.30mm) | ISM |
|
PCS.66.AREACH PCS.66.A WIDEBAND 5G/4G SM |
3,263 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular, WiFi | Wide Band | 788.5MHz, 1.4725GHz, 1.85GHz, 2.045GHz, 2.45GHz, 2.6GHz, 4.15GHz, 5.55GHz | 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 5GHz, 5.25GHz ~ 5.85GHz | Module | 8 | 3 | - | 1.3dBi, 2.5dBi, 3.2dBi, 3.5dBi, 3.5dBi, 5.7dBi, 5.5dBi, 3.5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | CDMA, GSM, HSPA, LTE, UMTS, Wi-Fi |
|

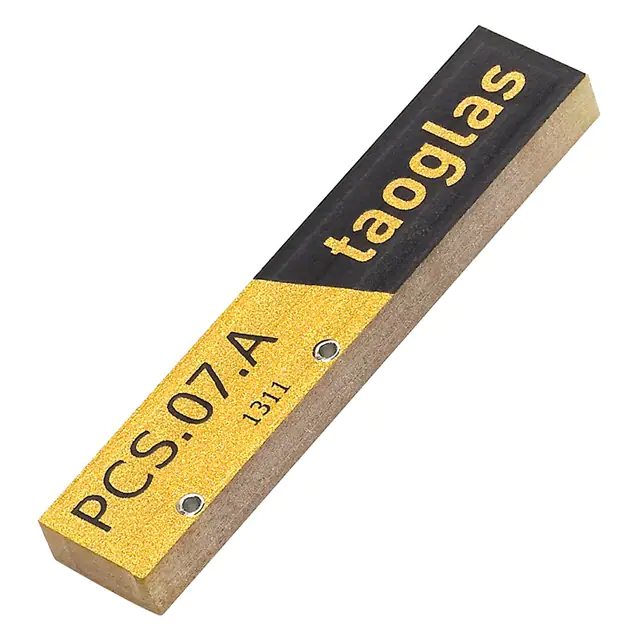

PCS.07.ARF ANT 850MHZ/900MHZ CHIP SLD |
2,768 |
|
Datasheet |
Nemesis | Tape & Reel (TR) | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 5 | - | -3dB, -4dB, -5dB, -7dB, -6dB | -1.96dBi, 1.77dBi, 2.9dBi, 2.83dBi, 2.57dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA |
|
PCS.46.A5G/4G WIDEBAND 400-6000MHZ SMD A |
748 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular, WiFi | Wide Band | 440MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz | 400MHz ~ 480MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Chip | 9 | - | - | -0.5dBi, 1.6dBi, 2.6dBi, 2.5dBi, 3.6dBi, 5.6dBi, 5.6dBi, 4.8dBi, 4.5dBi | 20 W | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | 3G, 4G, 5G, LTE, Wi-Fi |
|
|
ANT-5GW-FPC-LH100M4ANT 5G FPC 120X20 100MM MHF4 |
929 |
|
Datasheet |
ANT-5GW-FPC-LH | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.947GHz, 2.495GHz, 3.75GHz, 4.7GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Flat Patch | 9 | 1.6, 1.7, 1.8, 1.9, 2, 2.5, 2.7, 4.7 | - | 5dBi, 5dBi, 5.5dBi, 6dBi, 5.2dBi, 5.1dBi, 7dBi, 6.2dBi, 6.8dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 2G, 3G, 4G, 5G, LTE |
|
2047740001RF ANT CHIP SOLDER SMD |
8,896 |
|
Datasheet |
204774 | Tape & Reel (TR) | Active | - | Wide Band | - | 790MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Chip | 2 | - | -6dB | 4.84dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | - |
|
W3216RF ANT 1.575/1.602GHZ CER PATCH |
131 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 2 | 1.4, 2.3 | - | -2dBi | - | - | Pin | - | - | - | Adhesive | 0.218" (5.53mm) | GLONASS, GPS |
|
|
EFF6060A3S-10MHF1REVIE 600 5G CAT M1 NB-IOT ANT |
815 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Adhesive | - | - |
|
1001039ANTENNA |
1,127 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | - | -20dB | 5.3dBic | - | - | Pin | - | - | - | Adhesive | 0.177" (4.50mm) | GPS |
|
W3513RF ANT 2.4GHZ/5GHZ PCB TRACE SMD |
1,351 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 2dBi | - | Cable - 250mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.035" (0.90mm) | Wi-Fi, WLAN |
|
RFPCA500609IMAB301RF ANT 2.4GHZ PCB TRACE IPEX MAL |
369 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | -10dB | 4.5dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.087" (2.20mm) | - |
|
2118907-1WLAN TRIPLE BAND ANTENNA ASSEMBL |
226 |
|
Datasheet |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 1.8 | - | 4.4dBi, 4.4dBi, 4.4dBi | - | Cable - 120mm | MHF | - | - | - | Adhesive | 0.013" (0.34mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
