RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

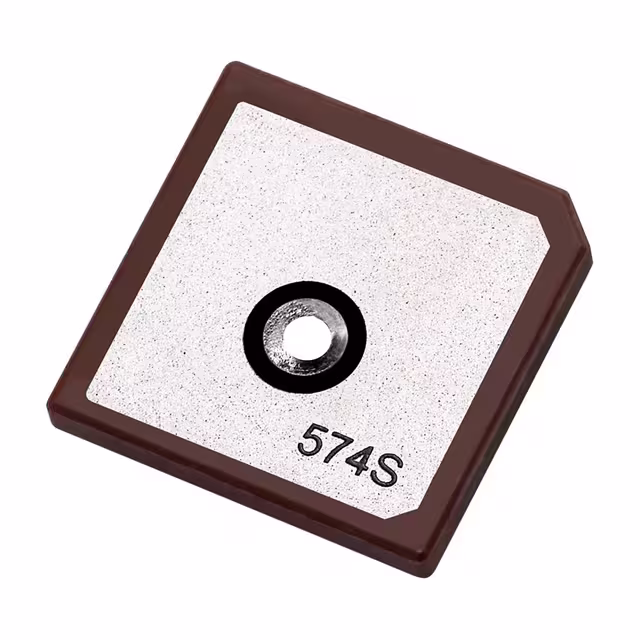

GP.1575.18.2.A.02RF ANT 1.575GHZ CER PATCH PIN |
195 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.5 | -10dB | -0.5dBic | - | - | Pin | - | - | - | Adhesive | 0.079" (2.00mm) | GPS |
|
APAE868R2540JBDB2-TRF ANT 868MHZ CER PATCH PIN ADH |
1,962 |
|
Datasheet |
APAE | Tray | Active | Navigation | UHF (300MHz ~ 1GHz) | 868MHz | 867MHz ~ 869MHz | Ceramic Patch | 1 | 1.5 | - | 4.5dBic | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GPS |
|
W3554B0140TPCB WITH ADHESIVE ANTENNA NPB |
8,082 |
|
Datasheet |
Internal PCB Antenna | Bulk | Active | - | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 5 | - | -4dB, -6dB | 1.9dBi, 3.2dBi | 5 W | Cable - 143mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.008" (0.20mm) | General Purpose |
|
W6114B0100ANTENNA FLEX FPC 5G 617-7125 MHZ |
1,742 |
|
Datasheet |
W6114 | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.0585GHz, 3.75GHz, 4.7GHz, 5.5375GHz, 6.5625GHz | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 6GHz ~ 7.125GHz | Flat Patch | 6 | - | -5dB, -6dB, -5dB, -6dB, -5dB, -4dB | 1.5dBi, 3.8dBi, 4.6dBi, 5.8dBi, 5dBi, 4.8dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF | - | - | - | Adhesive | 0.006" (0.15mm) | 4G, 5G |
|
PRO-IS-573ANT GSM/NB-IOT 60MM MHF |
352 |
|
Datasheet |
Embedded Antenna | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 875.5MHz, 1.795GHz | 791MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | PCB Trace | 2 | - | -4dB, 5dB | 4dBi | - | Cable - 60mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
ANT-GNFPC-SHL1100M4RF ANT GNSS FPC L1 100MM MHF4 |
794 |
|
Datasheet |
ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
GP.1575.12.4.A.02RF ANT 1.575GHZ CER PATCH PIN |
391 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | 2 | -10dB | -0.5dBic | - | - | Pin | - | - | - | Adhesive | 0.177" (4.50mm) | GPS |
|
|
ANT-20287EB56RF ANT, 4G&3G&2G&NB-IOT, OMNI-DI |
109 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | 5, 10 | -1.5dB, -3.5dB | -4.5dBi, 4dBi, 0dBi, 4dBi | 25 W | - | SMA Male | - | - | - | Connector Mount | 2.028" (51.50mm) | 2G, 3G |
|
ANT-2.4-FPC-SAH50M4ANT 2.4 FPC 12X8 50MM CBL MHF4 |
936 |
|
Datasheet |
ANT-2.4-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 4.1 | - | 0.1dBi | 2 W | Cable - 50mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
SWDP.2458.15.4.A.02SWDP.2458.15.4.A.02 5DBI 15MM EM |
217 |
|
Datasheet |
- | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.2GHz, 5.675GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.5GHz, 5.5GHz ~ 5.85GHz | Ceramic Patch | 3 | - | - | 5.7dBi, 5.29dBi, 4.03dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Wi-Fi |
|
1052620002RF ANT 866MHZ/915MHZ FLAT 150MM |
697 |
|
Datasheet |
105262 | Tray | Active | - | UHF (300MHz ~ 1GHz) | 866MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | - | -11dB, -13dB | 0.3dBi, 1.3dBi | 2 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
|
ANT-2.4-FPC-SAH100M4ANT 2.4 FPC 12X8 100 CBL MHF4 |
961 |
|
Datasheet |
ANT-2.4-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 4.1 | - | 0.1dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
ANT-W63-FPC-SAH100UFANT WIFI6/6E FPC SQR 100MM UFL |
1,941 |
|
Datasheet |
ANT-W63-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 2.4, 3.4 | - | 0.6dBi, 7.2dBi, 6.3dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/-c/ax, Bluetooth, ISM, U-NII, Wi-Fi, Zigbee™ |
|
|
PRO-IS-589INSIDE GSM/NB-IOT ADHESIVE MHF4 |
145 |
|
Datasheet |
Embedded Antenna | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 875.5MHz, 1.795GHz | 791MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | PCB Trace | 2 | - | -4dB, 5dB | 4dBi | - | Cable - 60mm | I-PEX MHF4 | - | - | - | Adhesive | 0.031" (0.80mm) | EDGE, GPRS, GSM, LTE, UMTS |
|
|
ANT-190061B77RF ANT, 4G/3G/2G, OMNI-DIRECTION |
213 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 892MHz, 2.2GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 2 | 2.8, 4.5 | -4dB, -6.5dB | -3.5dBi, 0.5dBi, 2dBi, 5dBi | 5 W | Cable - 101mm | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | 2G, 3G, 4G, LPWA |
|
1003893FT-AA10L0075ANTENNA ASSY, WLANB FT AA10 0075 |
798 |
|
Datasheet |
- | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | 1.5 | - | 3.3dBi | 500 mW | Cable - 75mm | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | WLAN |
|
|
1003893FT-AA10L0200ANTENNA ASSY, WLANB FT AA10 0200 |
114 |
|
Datasheet |
- | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | 1.5 | - | 3.3dBi | 500 mW | Cable - 200mm | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | WLAN |
|
W5I-BO-07RF ANT 2.4GHZ PCB TRACE CAB ADH |
270 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | PCB Trace | 1 | 1.9 | -22.36dB | 2.5dBi | - | Cable - 130mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|

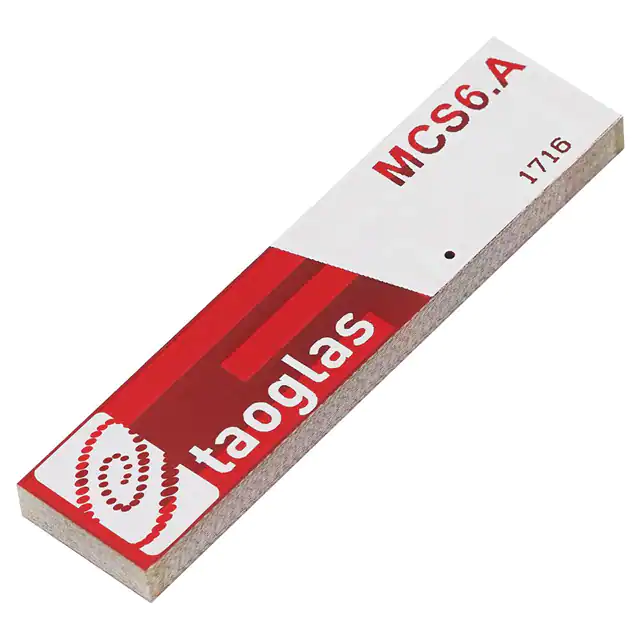

MCS6.ACAT M1 PENTA-BAND CELLULAR LOW P |
7,358 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 707.5MHz, 737.5MHz, 1.733GHz, 1.88GHz, 1.96GHz, 2.133GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 6 | - | -10dB | -0.02dBi, -1.05dBi, 2.76dBi, 3.11dBi, 3.26dBi, 3.75dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | CDMA, EDGE, DCS, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA |
|
|
YE0038AATERMINAL ANT DB WIFI SMA MALE |
295 |
|
Datasheet |
- | Bag | Active | Cellular, WiFi | Wide Band | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Right Angle | 2 | 2 | - | 2dBi, 2dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 7.677" (195.00mm) | Wi-Fi |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
