RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2108784-25G/4G/3G/2G, NB-IOT, CAT-M, GNSS |
10,425 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.5945GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.614GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Chip | 5 | 3 | - | 4dBi, 0.98dBi, 1.93dBi, 2.3dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.125" (3.18mm) | CDMA, GSM, LTE |
|
2108783-1PCB ANTENNA, SMD, 617-3800MHZ |
5,006 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 780MHz, 1.515GHz, 2.2GHz, 3.55GHz | 698MHz ~ 862MHz, 1.42GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | PCB Trace | 4 | 2 | - | 4.9dBi, 2dBi, 2.5dBi, 3.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.125" (3.18mm) | CDMA, GSM, LTE |
|
AN01DL25C00R3200METAL SMD ANT 2.4/5GHZ |
2,777 |
|
Datasheet |
AN01DL25C00 | Tape & Reel (TR) | Active | Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2, 2.5 | - | - | - | - | - | - | - | - | Surface Mount | 0.079" (2.00mm) | Bluetooth, Wi-Fi |
|
W3315B0100MHF1WIFI ANTENNA |
942 |
|
Datasheet |
Internal Antenna | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 2dBi, 5dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | Bluetooth, DSRC, Wi-Fi, Zigbee™ |
|
APAE1575R1540AZDB2F-TRF ANT 1.575GHZ CER PATCH PIN |
6,982 |
|
Datasheet |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.575GHz ~ 1.579GHz | Ceramic Patch | 1 | 1.5 | -15dB | 1.2dBic | - | - | Pin | - | - | - | Adhesive | 0.185" (4.70mm) | GPS |
|
2344654-5WLAN DUAL BAND ANTENNA PCB V 50 |
6,627 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
2344655-5WLAN DUAL BAND ANTENNA PCB H 50 |
2,494 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
YP0009CAEMBEDDED CELLULAR ANTENNA |
509 |
|
Datasheet |
- | Bag | Not For New Designs | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | PCB Trace | 8 | 1.96, 2.1, 2.19, 2.2, 2.31, 4.5 | - | 0.51dBi, 2.4dBi, 4.5dBi, 3.8dBi, 3.9dBi, 2.3dBi | - | Cable - 188.5mm | I-PEX MHF4 | - | - | - | Adhesive | 0.037" (0.95mm) | 6G |
|
YF0017BAEMBEDDED CELLULAR ANTENNA |
433 |
|
Datasheet |
- | Bag | Not For New Designs | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Flat Patch | 8 | 1.6, 1.7, 1.9, 2, 2.1, 2.6 | - | 1.5dBi, 2.8dBi, 2.8dBi, 4.1dBi, 3.6dBi, 4.4dBi, 3dBi | - | Cable - 193mm | I-PEX MHF4 | - | - | - | Surface Mount | 0.005" (0.13mm) | 6G |
|
|
APAE1575R2540AADBE-TRF ANT 1.575GHZ CER PATCH PIN |
235 |
|
Datasheet |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.569GHz ~ 1.577GHz | Ceramic Patch | 1 | 2.32 | - | 4.5dBic | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GPS |
|
PRO-OB-468RF ANT 850MHZ/900MHZ STAMPED MET |
16,706 |
|
Datasheet |
Embedded Antenna | Tape & Reel (TR) | Not For New Designs | Cellular | Wide Band | 850MHz, 900MHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Stamped Metal | 2 | - | -6dB | - | - | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | GSM, UMTS |
|
2195846-3FPC ANT, MHF, 150MM, 698-7125 MH |
9,542 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 4 | - | 4.99dBi | - | Cable - 150mm | MHF | - | - | - | Adhesive, Chassis Mount | - | 4G, LTE, GNSS |
|
|
YC0001AAPCB ANTENNA LTE SMD 35X8.5 |
1,352 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 2 | 4 | - | 3dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | LTE |
|

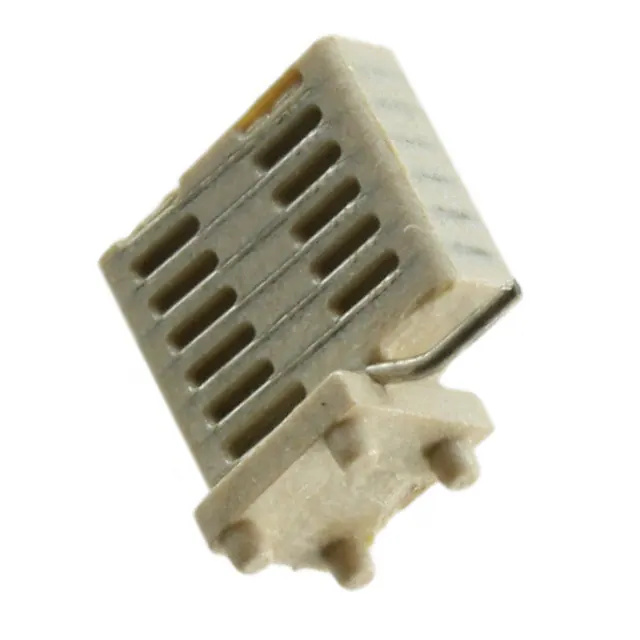

W3112ARF ANT 900MHZ HELICAL SOLDER SMD |
3,053 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 902MHz ~ 928MHz | Helical | 1 | - | -10dB | 0.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.315" (8.00mm) | - |
|

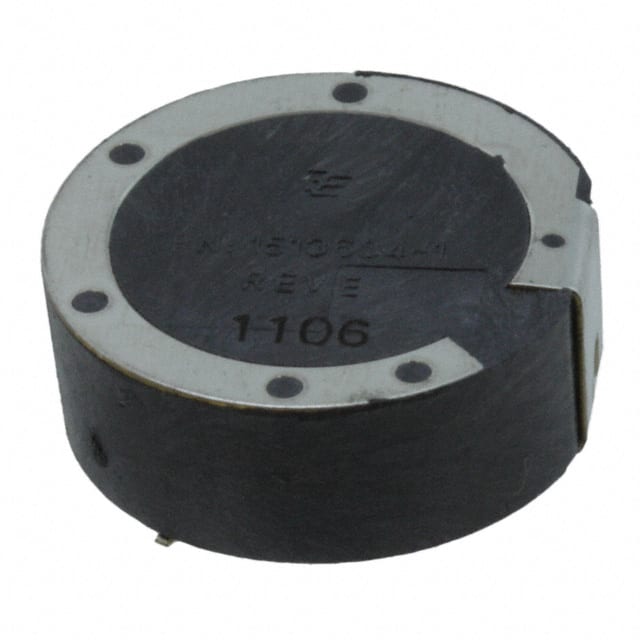

1513634-1RF ANT 1.575GHZ PUCK SOLDER SMD |
450 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Puck | 1 | 3 | - | 0dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.238" (6.05mm) | GPS |
|
|
ACG0301UUWB ANT 6.22GHZ- 8.2GHZ SMD CHIP |
2,846 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | Wide Band | 7.2GHz | 6.2GHz ~ 8.2GHz | Chip | 1 | 2 | - | - | - | Filter | - | - | - | - | Surface Mount | 0.047" (1.20mm) | UWB |
|
2118439-2RF ANT 2.44/5.387GHZ PCB TRACE |
5,662 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.387GHz | 2.4GHz ~ 2.483.5GHz, 4.9GHz ~ 5.875GHz | PCB Trace | 2 | - | - | - | - | Cable - 310mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.065" (1.65mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1002295RF ANT 2.4GHZ STAMPED MET SLD |
5,053 |
|
Datasheet |
Prestta™ | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | 2.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.382" (9.70mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
AN01ML27C00R2400METAL SMD ANT 2.4/5/6GHZ |
2,396 |
|
- |
AN01ML27C00 | Tape & Reel (TR) | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Stamped Metal | 3 | 2 | - | - | - | - | - | - | - | - | Surface Mount | 0.079" (2.00mm) | Wi-Fi |
|
W3012RF ANT 900MHZ CHIP SOLDER SMD |
3,701 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 902MHz ~ 928MHz | Chip | 1 | - | -6dB | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | - |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
