RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP.25C.07.0080ARF ANT 1.575GHZ CER PATCH CAB |
0 |
|
Datasheet |
- | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2 | - | 2dBic | - | Cable - 80mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.327" (8.30mm) | GPS |
|

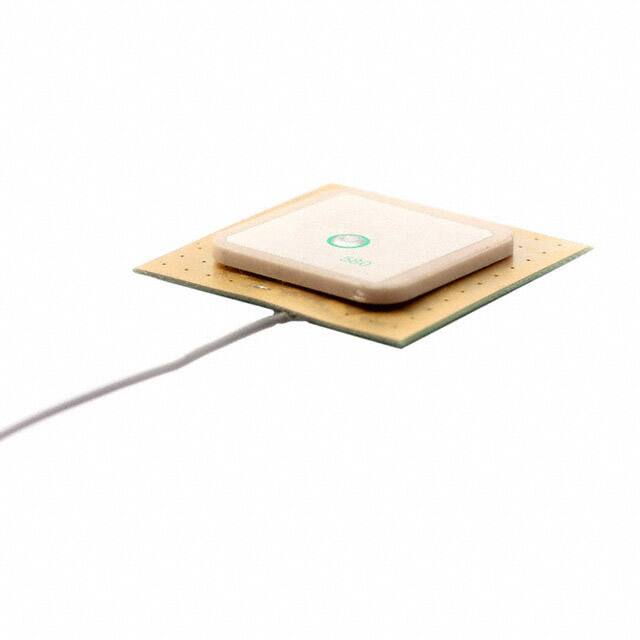

AP.25B.07.0052ARF ANT 1.575GHZ CER PATCH IPEX |
0 |
|
Datasheet |
- | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -1.5dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
AP.17A.07.0040ARF ANT 1.575GHZ CER PATCH IPEX |
0 |
|
Datasheet |
- | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 1dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.248" (6.30mm) | GPS |
|
AP.17B.07.0040ARF ANT 1.575GHZ CER PATCH IPEX |
0 |
|
Datasheet |
- | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 1dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.307" (7.80mm) | GPS |
|
AP.12B.07.0057ARF ANT 1.575GHZ CER PATCH CAB |
0 |
|
Datasheet |
- | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2 | - | 1.5dBic | - | Cable - 46mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.236" (6.00mm) | GPS |
|
AP.10A.07.0050BRF ANT 1.575GHZ CER PATCH IPEX |
0 |
|
Datasheet |
- | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -3dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
AP.10B.07.0050BRF ANT 1.575GHZ CER PATCH IPEX |
0 |
|
Datasheet |
- | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -3dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|

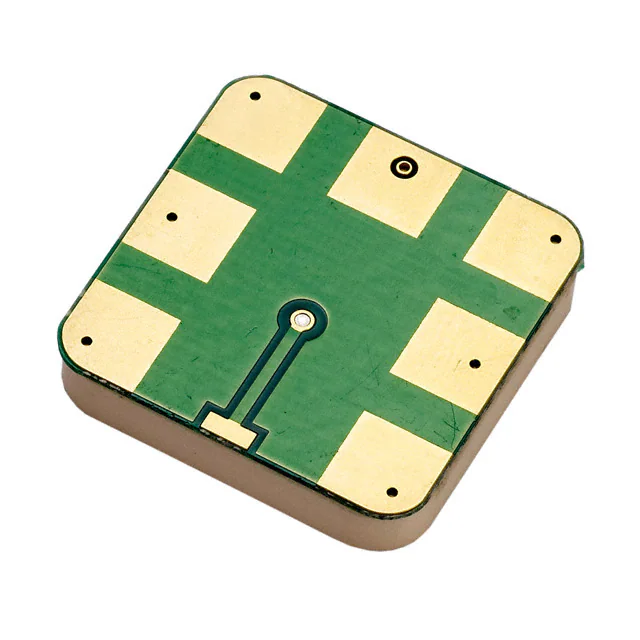

SGP.1575.25.4.C.02RF ANT 1.575GHZ CER PATCH SLD |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.571GHz ~ 1.579GHz | Ceramic Patch | 1 | 1.5 | - | 2dBic | - | - | Solder | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
|
GSA.8822.A.301111RF ANT 850MHZ/900MHZ FLAT BAR |
0 |
|
Datasheet |
- | Bag | Obsolete | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Bar | 5 | 2 | - | 3dBi | 10 W | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 0.256" (6.50mm) | CDMA, DCS, GSM, PCS, UMTS, WCDMA |
|
PC24.07.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
0 |
|
Datasheet |
TheStripe™ | Bag | Obsolete | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 4 | 2 | -12dB, -25dB, -12dB, -10dB | 0dBi | 10 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Chassis Mount | 0.031" (0.80mm) | AMPS, DCS, GSM, PCS |
|

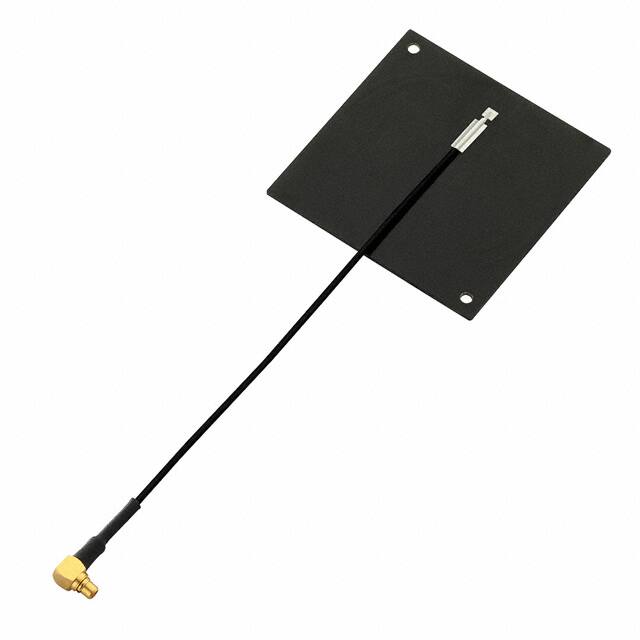

PC24.09.0100ARF ANT 892MHZ/1.9GHZ FLAT PATCH |
0 |
|
Datasheet |
TheStripe™ | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 2 | 2 | -25dB, -12dB | 0dBi | 10 W | - | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
FXP100.07.0100ARF ANT 2.3GHZ/2.5GHZ FLAT PATCH |
0 |
|
Datasheet |
- | Bag | Obsolete | WiFi | Wide Band | 2.3GHz, 2.5GHz, 3.5GHz | 2.1GHz ~ 4.32GHz | Flat Patch | 1 | 2 | - | 3.2dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | WiMax™ |
|
FXP400.07.0100ARF ANT 815MHZ/2.4GHZ FLAT PATCH |
0 |
|
Datasheet |
- | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), SHF (f > 4GHz) | 815MHz, 2.4GHz | 690MHz ~ 940MHz, 1.72GHz ~ 3.13GHz | Flat Patch | 2 | 2 | -6dB | 4dBi | 10 W | Cable - 85mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | LTE |
|
WS.01.B.305151RF ANT 3.8GHZ DOME RP-SMA MALE |
0 |
|
Datasheet |
Hercules | Bag | Obsolete | 802.15.4, Bluetooth, WiFi | Wide Band | 3.8GHz | 2.4GHz ~ 5.2GHz | Dome | 1 | 1.6 | -15dB | - | - | - | RP-SMA Male | IP69K | - | - | Panel Mount | 1.142" (29.00mm) | Bluetooth, WLAN, Zigbee™ |
|
PA.15RF ANT 2.4GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | -21dB | -3.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | Bluetooth, 802.11a/b/g |
|
FXP240.07.0100ARF ANT 434MHZ FLAT PATCH MHFII |
0 |
|
Datasheet |
- | Bag | Obsolete | - | UHF (300MHz ~ 1GHz) | 434MHz | 433MHz ~ 435MHz | Flat Patch | 1 | 2 | -20dB | 0dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
FXP245.07.0100ARF ANT 450MHZ FLAT PATCH CAB ADH |
0 |
|
Datasheet |
- | Bag | Obsolete | - | UHF (300MHz ~ 1GHz) | 450MHz | 450MHz ~ 457MHz | Flat Patch | 1 | 2 | -20dB | 0dBi | 5 W | Cable - 100mm | I-PEX MHF2 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
FXP270.07.0100ARF ANT 783MHZ FLAT PATCH MHFII |
0 |
|
Datasheet |
- | Bag | Obsolete | - | UHF (300MHz ~ 1GHz) | 783MHz | 779MHz ~ 787MHz | Flat Patch | 1 | 2 | -20dB | 1.4dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
MA301.A.AB.001RF ANT 1.4GHZ MODULE SMA ML ADH |
0 |
|
Datasheet |
- | Bag | Obsolete | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 1.4GHz | 824MHz ~ 1.99GHz | Module | 1 | 1.92 | - | 28dBic | - | LNA | SMA Male | IP65 | - | - | Adhesive | 0.681" (17.30mm) | CDMA, GPS, GSM, UMTS |
|
SA.PANEL.20RF ANT 5.4GHZ PANEL N FEM BRKT |
0 |
|
Datasheet |
- | Box | Obsolete | WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.9GHz | Panel | 1 | - | -14dB | 17dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 2.756" (70.00mm) | Wi-Fi |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
