RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GPSANT1RF ANT 1.575GHZ FLAT PATCH SMA |
0 |
|
- |
- | Bulk | Obsolete | - | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.525GHz ~ 1.625GHz | Flat Patch | 1 | - | - | - | - | - | SMA Male | - | - | - | - | - | - |
|
DC-ANT-24DP-10RF ANT 2.4GHZ WHIP TILT 10PC |
0 |
|
Datasheet |
- | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 1.8dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.500" (88.90mm) | Wi-Fi |
|
|
DC-ANT-24DP-25RF ANT 2.4GHZ WHIP TILT 25PC |
0 |
|
Datasheet |
- | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 1.8dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.500" (88.90mm) | Wi-Fi |
|
|
DC-ANT-24DP-50RF ANT 2.4GHZ WHIP TILT 50PC |
0 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 1.8dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.500" (88.90mm) | Wi-Fi |
|
|
DC-ANT-24DT-10RF ANT 2.4GHZ WHIP STR CAB 10PC |
0 |
|
Datasheet |
- | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | - | 1.8dBi | - | Cable - 500mm | RP-SMA Male | - | - | - | Magnetic | 4.134" (105.00mm) | Wi-Fi |
|
|
DC-ANT-24DT-25RF ANT 2.4GHZ WHIP STR CAB 25PC |
0 |
|
Datasheet |
- | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | - | 1.8dBi | - | Cable - 500mm | RP-SMA Male | - | - | - | Magnetic | 4.134" (105.00mm) | Wi-Fi |
|
|
DC-ANT-24DT-50RF ANT 2.4GHZ WHIP STR CAB 50PC |
0 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | - | 1.8dBi | - | Cable - 500mm | RP-SMA Male | - | - | - | Magnetic | 4.134" (105.00mm) | Wi-Fi |
|
ACH2-AT-DP004RF ANT 2.4GHZ WHIP/TILT PANEL MT |
0 |
|
Datasheet |
Airborne™ | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 5dBi | - | Cable - 1.37m | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 7.618" (193.50mm) | - |
|
|
ACH2-AT-DP005-GRF ANT 2.4GHZ CORNER REFL RP-SMA |
0 |
|
- |
Airborne™ | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Corner Reflector | 1 | - | - | 15dBi | - | - | RP-SMA Male | - | - | - | Panel Mount | - | - |
|
|
ACH2-AT-DP007-GRF ANT 2.4GHZ WHIP STR N CONN |
0 |
|
- |
Airborne™ | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | - | - | 8.5dBi | - | - | N Type | - | - | - | Surface Mount | - | - |
|
|
ACH2-AT-DP008-GRF ANT 2.4GHZ FLAT PATCH RP-SMA |
0 |
|
- |
Airborne™ | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Flat Patch | 1 | - | - | 10dBi | - | - | RP-SMA Male | - | - | - | Surface Mount | - | - |
|
W1028RF ANT 5.5GHZ WHP TILT RP-SMA 5" |
0 |
|
Datasheet |
- | Bulk | Obsolete | 802.15.4, WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | Whip, Tilt | 1 | 1.9 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.913" (150.20mm) | WLAN, Zigbee™ |
|

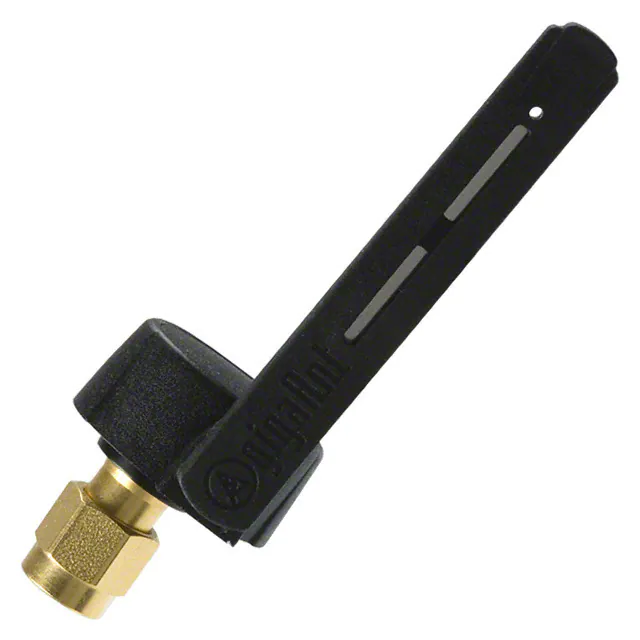

B6090RF ANT 2.4GHZ BLADE SMA MALE |
0 |
|
Datasheet |
Titanis | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Blade | 1 | 1.2 | - | 4.1dBi | - | - | SMA Male, Reverse Thread | - | - | - | Connector Mount | 1.902" (48.30mm) | Bluetooth, Wi-Fi, WiMedia™, Zigbee™ |
|
B5771RF ANT 2.4GHZ BLADE SMA MALE SNP |
0 |
|
Datasheet |
Picea | Bulk | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Blade | 1 | 2 | - | 4.1dBi | - | - | SMA Male | - | - | - | Snap-In | 1.902" (48.30mm) | Bluetooth, Wi-Fi, WiMedia™, Zigbee™ |
|
1020B5743-01RF ANT 2.4GHZ MOLDED SMA MALE |
0 |
|
Datasheet |
Flavus | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Molded | 1 | 1.5 | - | 4dBi | - | - | SMA Male | - | - | - | Snap-In | 0.236" (6.00mm) | Bluetooth, Wi-Fi, WiMedia™, Zigbee™ |
|
B5812-01RF ANT 800MHZ/900MHZ MOLDED SMA |
0 |
|
Datasheet |
Flavus | Tray | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 800MHz, 900MHz, 1.8GHz, 1.9GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Molded | 4 | 1.2, 1.2, 1 | - | - | - | - | SMA Male | - | - | - | Snap-In | 0.152" (3.85mm) | GSM |
|
|
B5812-04RF ANT 800MHZ/900MHZ MOLDED SMA |
0 |
|
Datasheet |
Flavus | Tray | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 800MHz, 900MHz, 1.8GHz, 1.9GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Molded | 4 | 1.2, 1.2, 1 | - | - | - | - | SMA Male | - | - | - | Snap-In | 0.152" (3.85mm) | GSM |
|

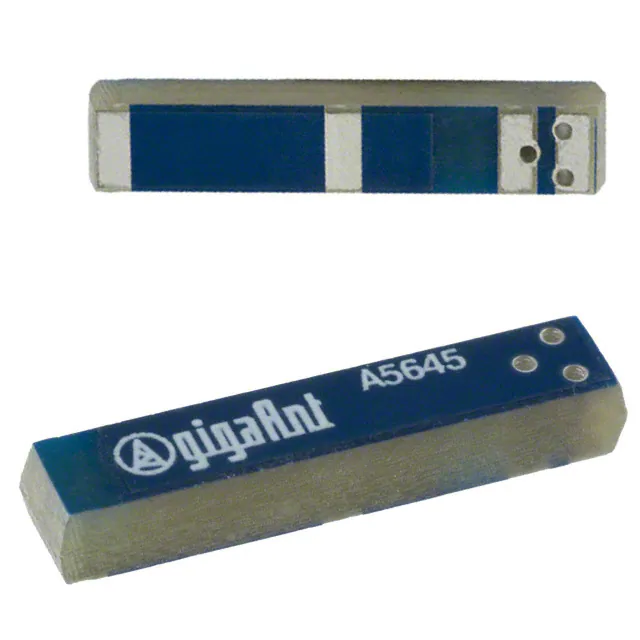

A5645RF ANT 2.4GHZ PCB TRACE SLDR SMD |
0 |
|
Datasheet |
Mica | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.5 | - | 1.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | Bluetooth, WiMedia™, WLAN, Zigbee™ |
|

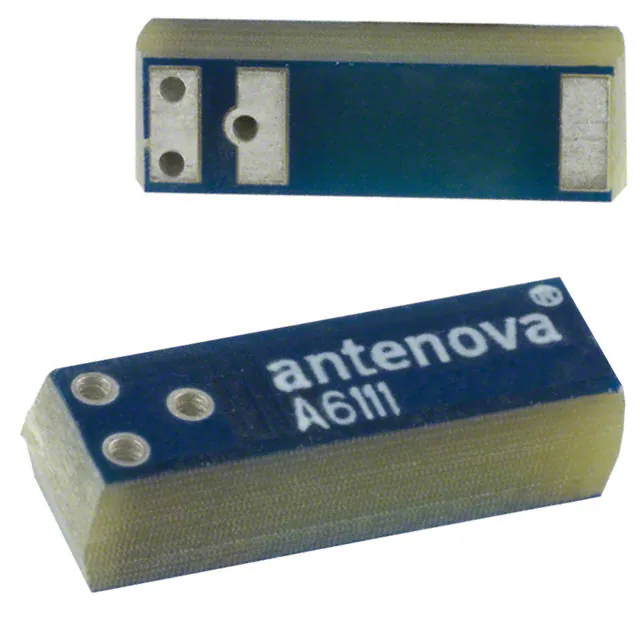

A6111RF ANT 2.4GHZ PCB TRACE SLDR SMD |
0 |
|
Datasheet |
Comata | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | Bluetooth, WiMedia™, WLAN, Zigbee™ |
|

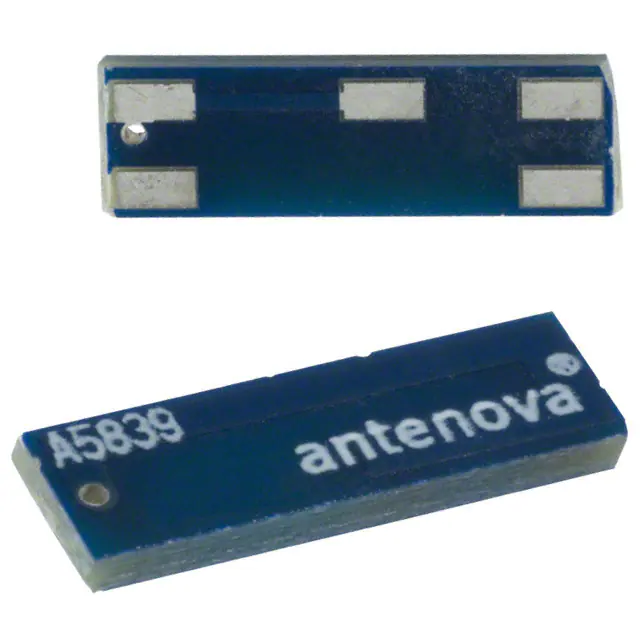

A5839RF ANT 2.4GHZ PCB TRACE SLDR SMD |
0 |
|
Datasheet |
Rufa | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.8 | -11dB | 2.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Bluetooth, Wi-Fi, Zigbee™ |
