RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1513712-1RF ANT 2.5GHZ/3.6GHZ MODULE CAB |
0 |
|
Datasheet |
- | Bulk | Obsolete | 802.15.4, Bluetooth, WiFi | Wide Band | 2.5GHz, 3.6GHz, 5.4GHz | 2.3GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 5.875GHz | Module | 3 | 2.5 | - | 0dBi, 3dBi, 2dBi | 10 W | Cable - 800mm | QSL Type 4 | - | - | - | - | 0.931" (23.65mm) | Bluetooth, WiMax™, WLAN, Zigbee™ |
|
ANCW12G45SAA117RD3ANTENNA DIELECTRIC 2450MHZ SMD |
0 |
|
Datasheet |
- | Cut Tape (CT) | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.45GHz | - | - | 1 | 2.5 | - | - | - | - | - | - | - | - | Surface Mount | 0.079" (2.00mm) | - |
|
MB450-RFS433RF ANT 433MHZ WHIP STR BNC BRKT |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | - | - | 3dBi | - | Cable - 2m | BNC | - | - | - | Bracket Mount | 19.291" (490.00mm) | GSM |
|
ANT-24G-DPL-FPRF ANT 2.4GHZ WHP CTR F-P ML ADH |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Center-Fed Double | 1 | 2 | -10dB | 2.1dBi | - | Cable - 2.5m | F-P Male | - | - | - | Adhesive | 6.181" (157.00mm) | - |
|
AH122F245001-TRF ANT 2.4GHZ CHIP SOLDER SMD |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, Navigation, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.037" (0.95mm) | Bluetooth, GPS, UWB, WiMax™, WLAN, Zigbee™ |
|
AH042F525001-TRF ANT 5GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | SHF (f > 4GHz) | 5GHz | 5.15GHz ~ 5.35GHz | Chip | 1 | 2 | - | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | Bluetooth, WLAN |
|

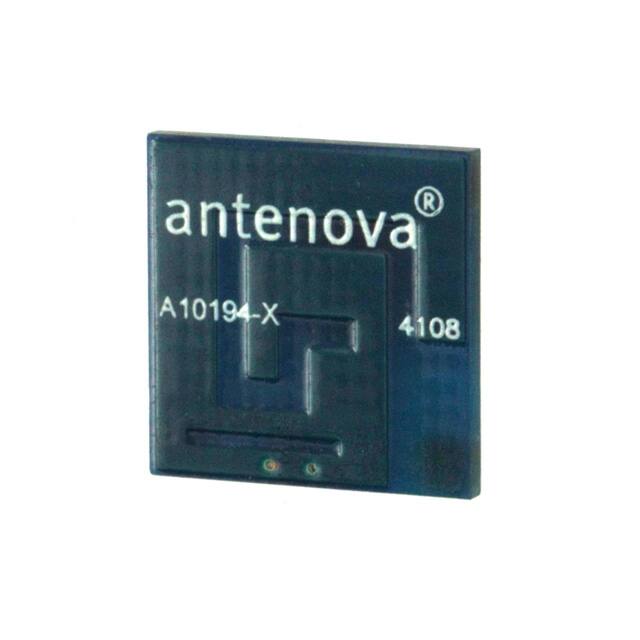

A10194RF ANT 2.4GHZ/5GHZ PCB TRACE SLD |
0 |
|
Datasheet |
Mixtus | Tape & Reel (TR) | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5GHz | PCB Trace | 2 | 1.4, 1.8 | -11dB, -15dB | 1.8dBi, 4.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | WLAN |
|
A10204RF ANT 1.575GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
Brevis | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | 1.4 | -17dB | 0dBi | - | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | GPS |
|
VJ6040M011SXISRA0RF ANT CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | UHF (300MHz ~ 1GHz) | - | 470MHz ~ 860MHz | Chip | 1 | - | - | -2dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
AT00047A-GRF ANT 1.575GHZ MOD SMA MALE ADH |
0 |
|
- |
- | Bulk | Obsolete | - | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 1.5 | - | 4dBi | - | - | SMA Male | - | - | - | Adhesive | 0.512" (13.00mm) | - |
|

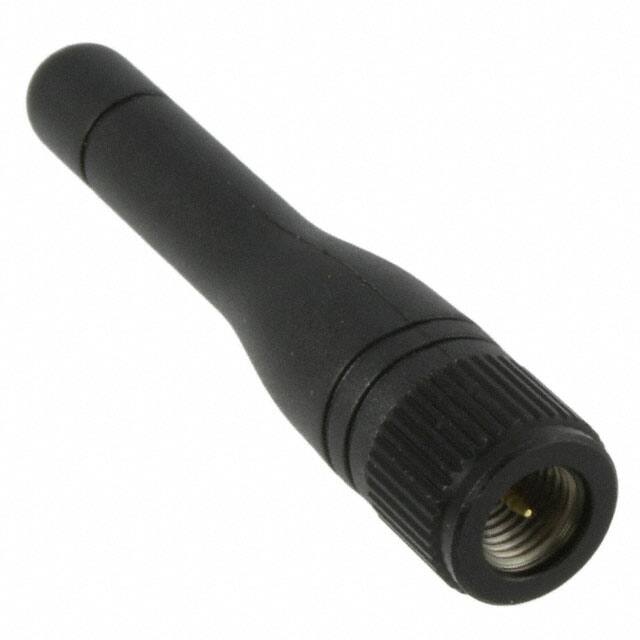

T321AT-GDPRF ANT WHIP STR SMA MALE CONN MT |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | Whip, Straight | 3 | - | - | - | - | - | SMA Male | - | - | - | Connector Mount | - | - |
|
|
W3030RF ANT 2.1GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.1GHz | 2.11GHz ~ 2.17GHz | Chip | 1 | - | -10dB | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | - |
|
|
W3032RF ANT 900MHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz) | 900MHz | 925MHz ~ 960MHz | Chip | 1 | - | -5dB | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GSM |
|
|
W3017RF ANT 2.3GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.3GHz | 2.32GHz ~ 2.345GHz | Chip | 1 | - | -12dB | 2.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | - |
|
|
W1049B070RF ANT 2.4GHZ WHIP/TILT CONN MT |
0 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 2dBi | - | Cable - 178mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 3.248" (82.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
W3029RF ANT 2GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (1GHz ~ 2GHz) | 2GHz | 1.93GHz ~ 1.99GHz | Chip | 1 | - | -10dB | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | - |
|
|
W3028RF ANT 1.8GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (1GHz ~ 2GHz) | 1.8GHz | 1.805GHz ~ 1.88GHz | Chip | 1 | - | -9dB | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | - |
|
|
W3040RF ANT 2.1GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 2.1GHz | 1.92GHz ~ 2.17GHz | Chip | 1 | - | -10dB | 2.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | WCDMA |
|

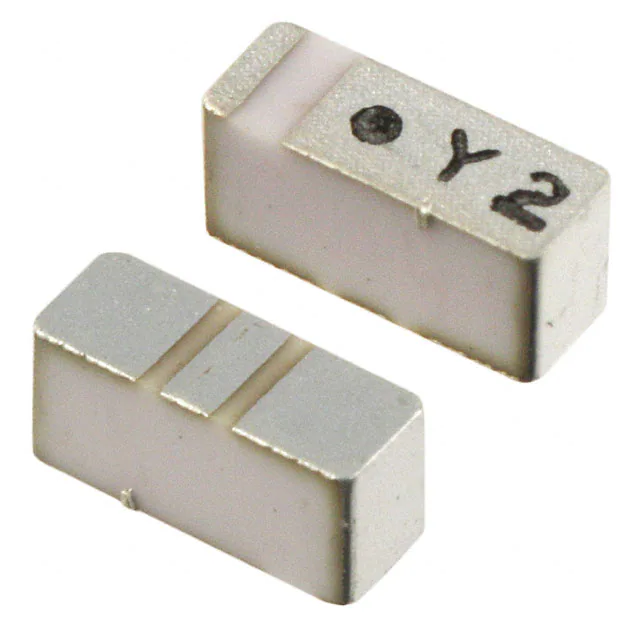

ANT040015CCS2442MA1RF ANT 2.4GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | Chip | 1 | 3.5 | - | 2.32dBi | - | - | Solder | - | - | - | Surface Mount | 0.073" (1.85mm) | - |
|
AA.160.301111RF ANT 1.575GHZ/1.602GHZ MODULE |
0 |
|
Datasheet |
- | Bag | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.609GHz | Module | 1 | 1.5 | - | 4dBic | - | Cable - 3m, LNA | SMA Male | - | - | - | Magnetic | 0.689" (17.50mm) | GLONASS, GPS |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
