RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG-ANT-20CB-AGRF ANT 2.4GHZ/5.4GHZ FLAT SGL PK |
0 |
|
- |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Flat Patch | 2 | 2.5 | - | 2dBi | 10 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.950" (24.13mm) | - |
|
|
DG-ANT-20DP-BGRF ANT 2.4GHZ WHIP TILT RP-SMA |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 2dBi | 2 W | - | RP-SMA Male | - | - | - | Connector Mount | 3.500" (88.90mm) | - |
|
|
DG-ANT-50DP-AG-BRF ANT 2.4GHZ/5GHZ WHIP TILT |
0 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Whip, Tilt | 2 | 2 | -10dB | 5dBi | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 5.256" (133.50mm) | Wi-Fi |
|
FXP14.11.0100BRF ANT 850/900MHZ FLAT PATCH GSC |
0 |
|
Datasheet |
- | Bag | Obsolete | Cellular | Wide Band | 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 6 | 2.5 | -7dB, -12dB, -8dB, -9dB, -9dB, -8dB | 2dBi, 1.5dBi, 3dBi, 2.5dBi, 2dBi, 2.5dBi | - | - | GSC | - | - | - | Adhesive | 0.004" (0.10mm) | CDMA, GSM |
|
0479501001RF ANT 2.4/5GHZ PCB TRC CAB .34" |
0 |
|
Datasheet |
47950 | Tray | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483.5GHz, 4.8GHz ~ 5.9GHz | PCB Trace | 2 | - | -10dB, -9dB | 3dBi, 2.7dBi, 3.7dBi | 2 W | Cable - 150mm | SMT Male | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN, Zigbee™ |
|
0479502001RF ANT 2.4/5GHZ PCB TRC CAB .34" |
0 |
|
Datasheet |
47950 | Tray | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483.5GHz, 4.8GHz ~ 5.9GHz | PCB Trace | 2 | - | -10dB, -9dB | 2.9dBi, 5dBi | 2 W | Cable - 200mm | SMT Male | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN, Zigbee™ |
|

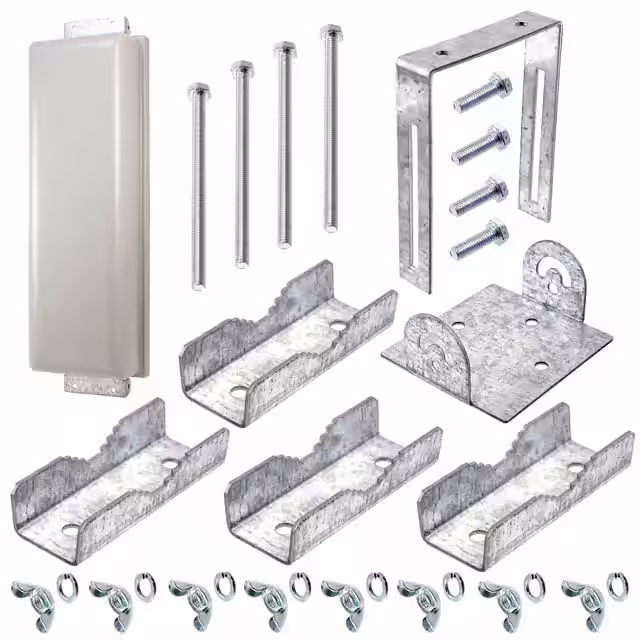

ANT-24G-PNL14RF ANT 2.4GHZ PANEL N FEM BRKT |
0 |
|
- |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Panel | 1 | 2 | - | 14dB | - | - | N Type Female | - | - | - | Bracket Mount | - | - |
|

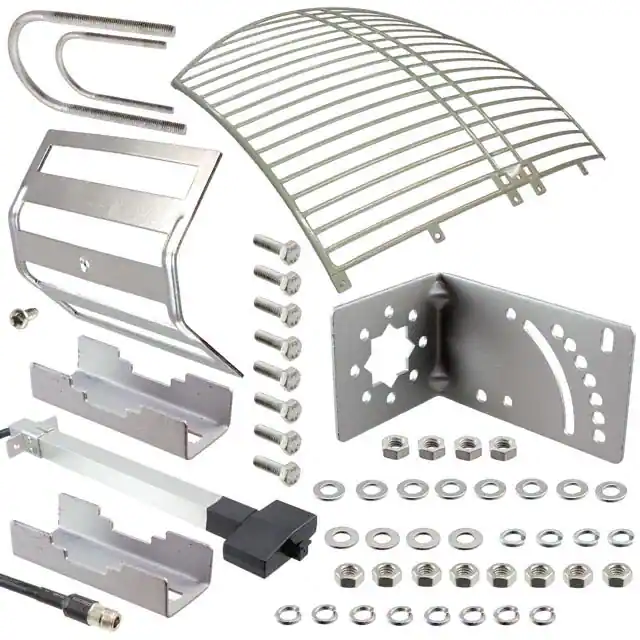

ANT-24GRID24RF ANT 2.4GHZ GRID N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Parabolic Grid | 1 | 2 | - | 24dB | 50 W | - | N Type Female | - | - | - | Bracket Mount | 15.748" (400.00mm) | WLAN |
|
ANT-24G-YAG16RF ANT 2.4GHZ YAGI N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Yagi | 1 | 2 | - | 16dB | 200 W | - | N Type Female | - | - | - | Bracket Mount | 30.315" (770.00mm) | WLAN |
|
ANT-GSMGPSPUKARF ANT 800MHZ/900MHZ PUCK CAB |
0 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 800MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz | - | Puck | 5 | 2 | - | 0dBi, 27dB | - | Cable - 3m | SMA Male (2) | - | - | - | Adhesive | 0.689" (17.50mm) | CDMA, GPS, GSM |
|
ANT-IBARQB-SMARF ANT 850MHZ/900MHZ FLAT BAR |
0 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz | Flat Bar | 4 | - | - | 3dBi | - | Cable - 3m | SMA Male | - | - | - | Adhesive | 0.157" (4.00mm) | GSM |
|
FLEXI-M4-315RF ANT 315MHZ WHIP STR |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 315MHz | - | Whip, Straight | 1 | 2 | - | - | - | - | Screw-Mount | - | - | - | Through Hole | 6.299" (160.00mm) | - |
|

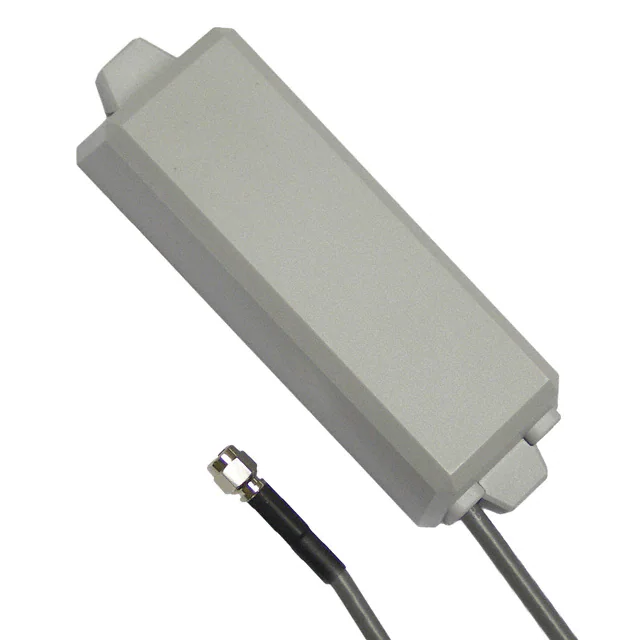

OUTSIDE-TFMERF ANT 433MHZ/868MHZ MODULE CAB |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 433MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz | - | Module | 5 | 4 | - | 3dB | - | Cable - 3m | FME Female | - | - | - | Chassis, Panel Mount | 1.063" (27.00mm) | GSM, UMTS |
|
|
OUTSIDE-TSMARF ANT 433MHZ/868MHZ MODULE CAB |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 433MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz | - | Module | 5 | 4 | - | 3dB | - | Cable - 3m | SMA Male | - | - | - | Chassis, Panel Mount | 1.063" (27.00mm) | GSM, UMTS |
|
|
OUTSIDE-WFMERF ANT 433MHZ/868MHZ MODULE CAB |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 433MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz | - | Module | 5 | 4 | - | 3dB | - | Cable - 3m | FME Female | - | - | - | Chassis Mount | 1.024" (26.00mm) | GSM, UMTS |
|
PU-M4-315RF ANT 315MHZ HELICAL SCREW-MNT |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 315MHz | - | Helical | 1 | - | - | - | - | - | Screw-Mount | - | - | - | Through Hole | 2.835" (72.00mm) | - |
|
|
RO2404NMRF ANT 2.4GHZ WHIP STR N MALE |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | Whip, Straight | 1 | 2 | - | 4dBi | 20 W | - | N Type Male | - | - | - | Connector Mount | 11.496" (292.00mm) | - |
|
|
SLPT698NMORF ANT 829MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
Shadow | Bulk | Active | Cellular, WiFi | UHF (300MHz ~ 1GHz) | 829MHz | 698MHz ~ 960MHz | Dome | 1 | 2 | - | 4.5dBi | 10 W | - | NMO | IP67 | - | - | Base Mount | 3.000" (76.20mm) | LTE, WLAN |
|
A10415RF ANT 1.575GHZ STAMPED MET SLD |
0 |
|
Datasheet |
Acuta | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.577GHz | Stamped Metal | 1 | 2 | -10dB | 0.4dB | - | - | Solder | - | - | - | Surface Mount | 0.268" (6.80mm) | GPS |
|
TRF1002RF ANT 2.4GHZ WHIP/TILT PANEL MT |
0 |
|
Datasheet |
- | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | 1 | - | - | 5dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 6.850" (174.00mm) | MiWi, Wi-Fi, Zigbee™ |
