RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VJ5601M868MXBSRRF ANT 868MHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | UHF (300MHz ~ 1GHz) | 868MHz | 800MHz ~ 940MHz | Chip | 1 | - | -3dB | 1.73dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
|
VJ5601M915MXBSRRF ANT 915MHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | UHF (300MHz ~ 1GHz) | 915MHz | 835MHz ~ 995MHz | Chip | 1 | - | -3dB | 1.73dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
VJ5301M915MXBSRRF ANT 915MHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | UHF (300MHz ~ 1GHz) | 915MHz | 835MHz ~ 995MHz | Chip | 1 | - | -3dB | 4.73dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
|
VJ5301M868MXBSRRF ANT 868MHZ CHIP SOLDER SMD |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | - | UHF (300MHz ~ 1GHz) | 868MHz | 820MHz ~ 920MHz | Chip | 1 | - | -3dB | -1.96dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|

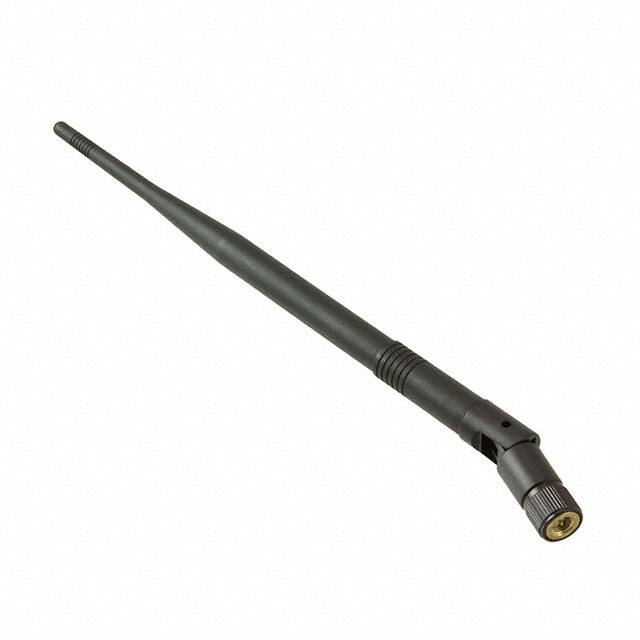

DC-ANT-DBDP3RF ANT 850MHZ/900MHZ WHIP RA |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Right Angle | 5 | - | - | 3dBi | - | - | - | - | - | - | Connector Mount | 9.134" (232.00mm) | - |
|
PA2400RF ANT 2.4GHZ FLAT PATCH MMCX |
0 |
|
- |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Flat Patch | 1 | 1.9 | - | 6dBi | - | - | MMCX | - | - | - | Chassis Mount | - | - |
|
PA2410RF ANT 2.4GHZ FLAT PATCH MMCX |
0 |
|
- |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Flat Patch | 1 | 1.9 | - | 2dBi | - | - | MMCX | - | - | - | Chassis Mount | - | - |
|
|
A24003-OCRF ANT 2.4GHZ WHIP STR NMO 5.4" |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 200 W | - | NMO | - | - | - | Base Mount | 5.394" (137.00mm) | - |
|
|
CAF28871ANT MMCXP DUCK COAXIAL |
0 |
|
- |
WCP | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CAF29177ANT WXE DIPOLE TNCM 2.4GHZ 5.5" |
0 |
|
- |
WXE | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CAF94101(IO2450-SM12)RF ANT 2.4GHZ MOD SMA CLIP 12" |
0 |
|
Datasheet |
Sphere™ | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Module | 1 | 1.5 | - | 3dBi | 50 W | Cable - 305mm | SMA Male | - | - | - | Clip | 0.669" (17.00mm) | - |
|
|
CAF94117(IDN2450-RT07)RF ANT 2.4GHZ MODULE CAB BRKT 7" |
0 |
|
Datasheet |
Terrace Diversity™ | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Module | 1 | 2 | - | 5dBi | 50 W | Cable - 178mm | RP-TNC (2) | - | - | - | Bracket Mount | 0.984" (25.00mm) | - |
|
|
CAF94120(IO2450-RN12)RF ANT 2.4GHZ MOD CAB CLIP 12" |
0 |
|
Datasheet |
Sphere™ | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Module | 1 | 1.5 | - | 3dBi | 50 W | Cable - 305mm | RP-N Female | - | - | - | Clip | 0.669" (17.00mm) | WLAN |
|
|
CAF94191(IO850-NF36)RF ANT 850MHZ MOD CAB BRKT 36" |
0 |
|
Datasheet |
Sphere™ | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 850MHz | 824MHz ~ 896MHz | Module | 1 | 2 | - | 3dBi | 50 W | Cable - 914mm | N Type Female | - | - | - | Bracket Mount | 2.008" (51.00mm) | - |
|
|
CAF94377(WID2452-SM)RF ANT 2.4GHZ/5.5GHZ STAMPED MET |
0 |
|
Datasheet |
D-Puck | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | Stamped Metal | 2 | 2.5 | - | 3dBi, 4dBi | - | - | SMA Female | - | - | - | Surface Mount | 0.236" (6.00mm) | WiMax™ |
|
|
CAF94503ANT NANOBLADE EMBEDDED IPX |
0 |
|
- |
NanoBlade | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CAF94526(WIP2450-I)RF ANT 2.4GHZ MODULE |
0 |
|
Datasheet |
- | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Module | 1 | 2 | - | 4dBi | - | - | - | - | - | - | - | 0.315" (8.00mm) | Bluetooth, WiMax™ |
|
|
CAF94568(IGO2450-RT12)RF ANT 2.4GHZ WHIP STR BRKT 12" |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 5dBi | 50 W | Cable - 305mm | RP-TNC | - | - | - | Bracket Mount | 1.260" (32.00mm) | - |
|
|
CAF94585(IDD5250-RS36)RF ANT 5GHZ MODULE CAB BRKT 36" |
0 |
|
Datasheet |
Terrace Diversity™ | Bulk | Active | - | SHF (f > 4GHz) | 5GHz | 4.9GHz ~ 6GHz | Module | 1 | 2 | - | 5dBi | 50 W | Cable - 914mm | RP-SMA (2) | - | - | - | Bracket Mount | 1.063" (27.00mm) | - |
|
|
CAF94675(IFD2450-RT60)RF ANT 2.4GHZ MODUL CAB BRKT 60" |
0 |
|
Datasheet |
Microsphere™ | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Module | 1 | 2 | - | 3dBi | 50 W | Cable - 1.5m | RP-TNC (2) | - | - | - | Bracket Mount | 0.433" (11.00mm) | - |
