BOM Upload
RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HLP-3003CRF ANT LOG PERIODIC N FEM CHASS |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | Wide Band | - | 30MHz ~ 3GHz | Log Periodic | 1 | 2 | - | 6dBi | 100 W | - | N Type Female | - | - | - | Chassis Mount | 27.165" (690.00mm) | - |
|
FMWAN1160SPCL WG ANTENNA 1.85MM JACK 6-67 |
0 |
|
Datasheet |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 36.5GHz | 6GHz ~ 67GHz | Horn | 1 | 1.5 | - | 13dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 1.85mm Female | - | - | - | Bracket Mount | 1.340" (34.04mm) | General Purpose |
|
|
FMWAN1500-10NFWR-1500 WAVEGUIDE STANDARD GAIN |
0 |
|
- |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 620MHz | 490MHz ~ 750MHz | Horn | 1 | 1.5 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 19.690" (500.00mm) | General Purpose |
|
PBA-2030RF ANT 160MHZ BICONICAL N FEM |
0 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 160MHz | 20MHz ~ 300MHz | Biconical | 1 | 2.5 | - | - | 100 W | - | N Type Female | - | - | - | Bracket Mount | 28.346" (720.00mm) | - |
|
MBA-2060RF ANT BICONICAL SMA ML BRKT MT |
0 |
|
- |
MB | Bulk | Active | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | - | 20MHz ~ 600MHz | Biconical | 1 | 2.5 | - | - | - | - | SMA Male | - | - | - | Bracket Mount | 10.827" (275.00mm) | - |
|
|
1499.00.00041499.00.0004 |
0 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | Wide Band | 1.488GHz, 1.584GHz, 2.45GHz, 3.902GHz, 5.5GHz | 617MHz ~ 1.61GHz, 1.559GHz ~ 2.36GHz, 1.88GHz ~ 2.5GHz, 2.4GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz | Module | 5 | - | - | - | - | - | - | IP69 | - | - | Bracket Mount | 3.307" (84.00mm) | 802.11ac/n, BeiDou, CDMA, Galileo, GLONASS, GNSS, GPS, HSPA+, LTE, WCDMA, Wi-Fi |
|
|
1499.00.00011499.00.0001 |
0 |
|
- |
SENCITY® | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 1.44885GHz, 1.5845GHz, 2.48GHz, 3.9025GHz, 5.5GHz | 617MHz ~ 1.61GHz, 1.559GHz ~ 2.36GHz, 2.4GHz ~ 2.5GHz, 1.88GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz | Module | 5 | - | - | - | - | - | - | IP69 | - | - | Surface Mount | 3.307" (84.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
|
1499.00.00051499.00.0005 |
0 |
|
- |
- | Bulk | Active | Cellular, WiFi | Wide Band | 1.584GHz, 2.45GHz, 2.808GHz, 5.5GHz | 617MHz ~ 1.61GHz, 1.559GHz ~ 2.5GHz, 2.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz | Module | 4 | - | - | - | - | - | - | IP69 | - | - | Bracket Mount | 3.307" (84.00mm) | 802.11ac/n, BeiDou, CDMA, Galileo, GLONASS, GNSS, GPS, HSPA+, LTE, WCDMA, Wi-Fi |
|
|
1499.00.00021499.00.0002 |
0 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | Wide Band | 1.584GHz, 2.45GHz, 2.705GHz, 2.808GHz, 5.5GHz | 617MHz ~ 1.61GHz, 1.559GHz ~ 2.5GHz, 1.71GHz ~ 3.7GHz, 2.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz | Module | 5 | - | - | - | - | - | - | IP69 | - | - | Bracket Mount | 3.307" (84.00mm) | 802.11ac/an, BeiDou, CDMA, Galileo, GLONASS, GNSS, GPS, LTE, WCDMA, Wi-Fi |
|
HBA-2030RF ANT 160MHZ BICONICAL CONN |
0 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 160MHz | 20MHz ~ 300MHz | Biconical | 1 | 2.5 | - | - | 3500 W | - | 7/16 Female | - | - | - | Bracket Mount | 54.331" (138.00cm) | - |
|
|
85154296GPSOF - OSM (1X8) |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FMWAN2300-10NFWR-2300 WAVEGUIDE STANDARD GAIN |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBCN8MISCACC,VHF/UHF |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2225NWANTENNA ASSEMBLY, WAAS, L1/L2/L5 |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.227GHz, 1.575GHz | - | Dome | 3 | 1.5, 2 | - | 5dBic , -9dBic , -9dBic | - | LNA | N Type Female, N Type Male | - | - | - | - | 24.122" (612.70mm) | GNSS |
|
2195768-1GNSS ACTIVE/ GPSH212N-N3-13-A |
50 |
|
Datasheet |
- | Box | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.577GHz | Ceramic Patch | 1 | - | -10dB | 19dBi | - | Cable - 83mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.250" (6.35mm) | GNSS, GPS |
|
ANT-868-CW-HDRF ANT 868MHZ WHIP STR SMA FEM |
0 |
|
Datasheet |
HD | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 868MHz | 820MHz ~ 900MHz | Whip, Straight | 1 | 2 | - | -0.3dBi | - | - | SMA Female | - | - | - | Connector Mount | 2.953" (75.00mm) | - |
|
|
4313-213-06158RF ANT 5.3GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Bulk | Obsolete | WiFi | SHF (f > 4GHz) | 5.3GHz | 5.16GHz ~ 5.37GHz | Chip | 1 | 2 | - | 5dBi | - | - | Solder | - | - | - | Surface Mount | 0.094" (2.40mm) | WLAN |
|

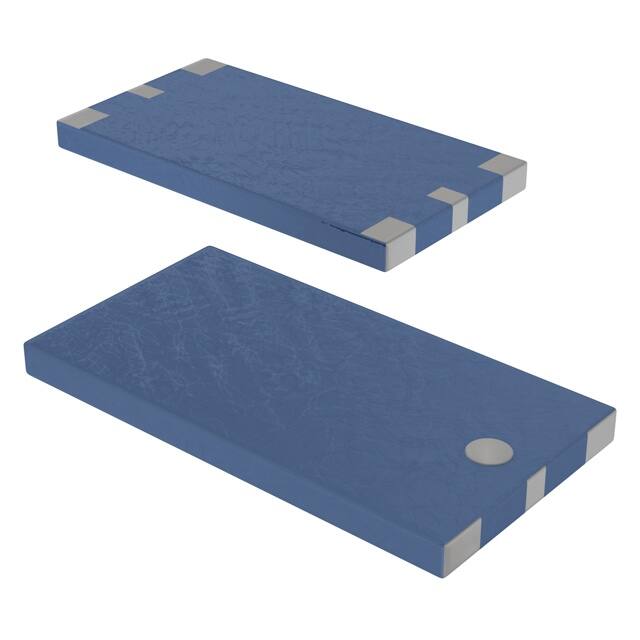

CAN4313114001581BANTENNA GPS LP-MODE CERAMIC SMD |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.529GHz ~ 1.629GHz | Chip | 1 | 2 | - | 1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | - |
|
CAN4313118009181BANTENNA EGSM/DCS DUAL BAND SMD |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 920MHz, 1.8GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Chip | 2 | 2.7 | - | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | - |
|
ANT-2.4-YG6-NRF ANT 2.4GHZ YAGI N FEM BRKT MT |
0 |
|
Datasheet |
YG | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.409GHz ~ 2.491GHz | Yagi, 5-Element | 1 | 1.5 | - | 9.5dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 14.370" (365.00mm) | - |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
