RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YG0062AAGNSS RF ANTENNA |
1,998 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.572GHz ~ 1.578GHz, 1.599GHz ~ 1.605GHz | Ceramic Patch | 2 | 3.5 | - | 2dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | GNSS |
|
|
YF0028AAFLEX PCB ANT LTE 150MM UFL |
1,938 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Flat Patch | 2 | 4 | - | 4.84dBi, 4.84dBi | - | Cable - 150mm | I-PEX MHF | - | - | - | Adhesive | 0.005" (0.12mm) | LTE |
|
|
YCGA001AAPATCH, GNSS L1, PIN MNT, 10X10 |
1,886 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 1 | - | - | - | - | - | - | - | - | - | Adhesive | 0.157" (4.00mm) | GNSS, GPS |
|
|
YF0007KAEMBEDDED, 600960, 1427.91495.9, |
1,612 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 780MHz, 1.46GHz, 1.94GHz, 2.5GHz | 600MHz ~ 960MHz, 1.43GHz ~ 1.49GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 4 | - | - | - | - | Cable - 75mm | I-PEX-1 | - | - | - | Adhesive | 0.033" (0.85mm) | 4G, LTE |
|
|
YF0017GAEMBEDDED, 11006000, 5G, FPC WITH |
1,566 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 3.55GHz | 1.1GHz ~ 6GHz | Flat Patch | 1 | - | - | - | - | Cable - 201mm | I-PEX4 | - | - | - | Adhesive | 0.005" (0.13mm) | 5G |
|
|
YG0043AAPATCH, GNSS L1, PIN MNT, 15X15 |
967 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | 2.53 | - | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
YF0020EAEMBEDDED, 6006000, 5G, FPC WITH |
914 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 3.3GHz | 600MHz ~ 6GHz | Flat Patch | 1 | - | - | - | - | Cable - 202mm | I-PEX4 | - | - | - | Adhesive | - | 5G |
|
|
YG0005AAGNSS RF ANTENNA |
566 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.6GHz | 1.597GHz ~ 1.603GHz | Ceramic Patch | 2 | - | -20dB | - | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | GPS |
|
|
YFGA006AAGNSS FPC ANTENNA L1/L2/L5 1176.4 |
460 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.22GHz, 1.58GHz | 1.16GHz ~ 1.27GHz, 1.56GHz ~ 1.61GHz | Flat Patch | 2 | - | - | - | - | Cable - 143mm | I-PEX-1 | - | - | - | Adhesive | 0.010" (0.25mm) | GNSS |
|
W3334B0100FPC ANTENNA 2.4/5.XGHZ/DSRC |
1,411 |
|
Datasheet |
Internal Antenna | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.45GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | PCB Trace | 2 | 2, 2.5 | - | 4dBi, 5.5dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, DSRC, Wi-Fi, Zigbee™ |
|
|
YF0022AAFLEX PCB ANTENNA, LTE 75MM UFL |
3,215 |
|
Datasheet |
- | Bag | Not For New Designs | Cellular | Wide Band | - | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | PCB Trace | 9 | 2.78, 2.54, 1.76, 1.27, 2.21, 2.71, 2.41, 1.74, 1.12 | - | 1.53dBi, 0.95dBi, 3.77dBi, 4.12dBi, 2.94dBi, 4.45dBi, 3.22dBi, 3.83dBi, 2.9dBi | - | Cable - 75mm | - | - | - | - | Adhesive | 0.079" (2.00mm) | LTE |
|
|
YF0006PAEMBEDDED, 690960, 17102170, 2300 |
2,000 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 1.69GHz | 700MHz ~ 2.69GHz | Flat Patch | 1 | - | - | - | - | Cable - 90mm | I-PEX-1 | - | - | - | Adhesive | 0.005" (0.13mm) | 4G, LTE |
|
YE0031AAWIFI/BT ANTENNA |
718 |
|
Datasheet |
- | Bag | Not For New Designs | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Straight | 2 | 2.5, 3 | - | 3.85dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 2.047" (52.00mm) | Wi-Fi |
|

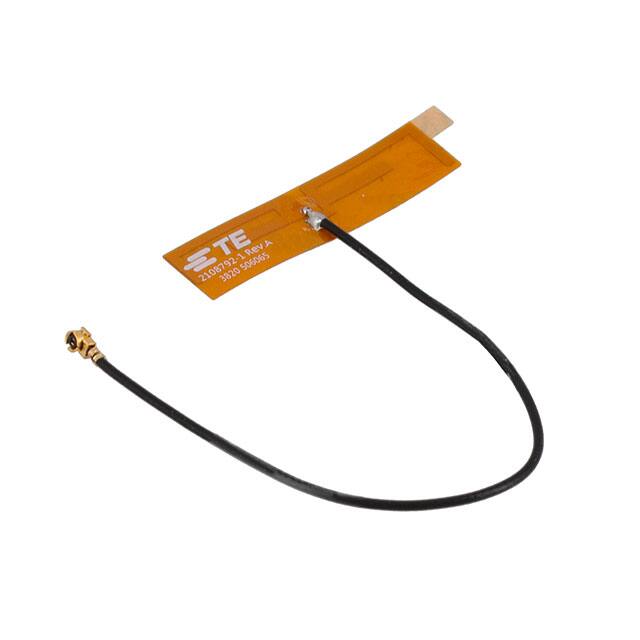

2108792-1WLAN TRIPLE ANTENNA FPC CABLE 12 |
3,948 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.44GHz, 5.3685GHz, 6.525GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2, 2.5 | - | 2.7dBi, 3.3dBi, 3.5dBi | - | Cable - 120mm | MHF | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
1461870050RF ANT 2.4/5.5GHZ PCB TRACE U.FL |
9,905 |
|
Datasheet |
146187 | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 4.75dBi | - | Cable - 50mm | U.FL | - | - | - | Surface Mount | 0.004" (0.10mm) | WLAN |
|
2108792-7FPC ANT, MHF 4L, 100MM, WI-FI 6E |
963 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 100mm | MHF4L | - | - | - | Adhesive | 0.005" (0.12mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
YEGT002AAGNSS L1 TERMINAL ANT SMA M STR |
934 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | 1.555GHz ~ 1.605GHz | Whip, Straight | 1 | 3 | - | 1.75dBi | - | - | SMA Male | IP64 | - | - | Connector Mount | 2.047" (52.00mm) | GNSS |
|
1461750001RF ANT 2.4GHZ/5.4GHZ CHIP SLD |
14,807 |
|
Datasheet |
- | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | - | -6dB | 4.2dB | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | WLAN |
|
3180203892.6DBI LORA ANTENNA - SMA MALE - |
646 |
|
- |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Tilt | 1 | - | - | 2.6dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 7.677" (195.00mm) | LoRa |
|
2344657-3WLAN DUAL BAND ANTENNA FPC H 150 |
4,176 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 2dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
