RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRFI068H-100FERA HORIZONTAL ISM ANTENNA+100M |
531 |
|
Datasheet |
FlexiiANT® | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | PCB Trace | 1 | 1.4 | -15dB | 0.7dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | ISM, LoRa, Sigfox |
|
2308RF ANT 2.4/5.4GHZ PCB TRACE CAB |
253 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 2 | - | 4dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | - | - | Wi-Fi |
|
W3010RF ANT 1.575GHZ CHIP SOLDER SMD |
42,461 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | - | -18dB | 2.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GPS |
|
2108857-4PCB ANT, MHF, 200MM, WI-FI 6E TR |
4,697 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.3dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.276" (7.01mm) | Wi-Fi |
|

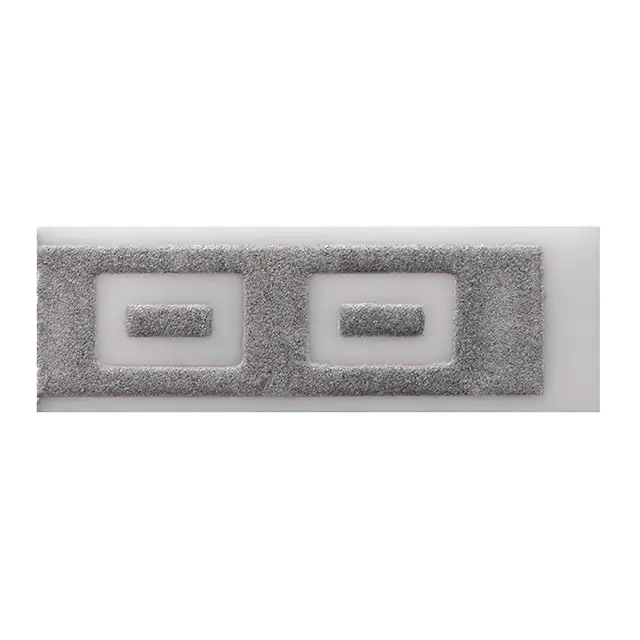

2081420001868/915MHZ CERAMIC ANTENNA |
11,920 |
|
Datasheet |
208142 | Tape & Reel (TR) | Active | 802.15.4, General ISM | UHF (300MHz ~ 1GHz) | 869MHz, 915MHz | 868MHz ~ 870MHz, 902MHz ~ 928MHz | Ceramic Patch | 2 | - | -5dB, -10dB | 1.5dBi, 1.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.025" (0.63mm) | ISM, LoRa, LPWAN, Sigfox, Zigbee™ |
|

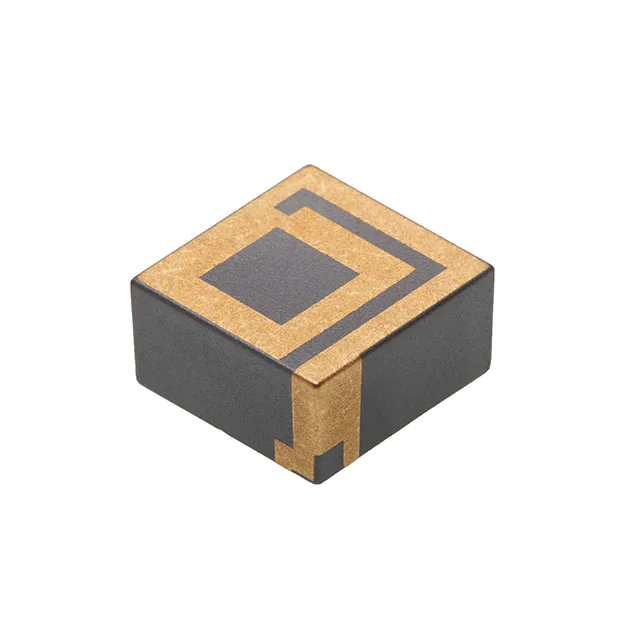

1462160001RF ANT 1.575GHZ MOLDED SLDR SMD |
9,312 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Molded | 1 | - | -10dB | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.234" (5.95mm) | GPS |
|
SR42I010-RANTENNAS 863-870 & 902-928MHZ RI |
1,279 |
|
Datasheet |
lamiiANT® | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Chip | 2 | 1.2, 1.8, 3.1 | -6dB, -10dB, -18dB | 0.2dBi, 0.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.067" (1.70mm) | ISM, LoRa, Sigfox |
|
W3011ARF ANT 1.575GHZ CHIP SOLDER SMD |
27,509 |
|
Datasheet |
Ceramic Chip Antenna | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.5755GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Chip | 3 | - | -7dB, -10dB, -10dB | 1.3dBi, 2dBi, 2.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
W3011RF ANT 1.575GHZ CHIP SOLDER SMD |
8,594 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | - | -12dB | 3.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | GPS |
|
ANT-418-PW-LPRF ANT 418MHZ WHIP STR SCREW-MNT |
742 |
|
Datasheet |
LP | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 411MHz ~ 425MHz | Whip, Straight | 1 | 1.9 | - | -1dBi | - | - | Screw-Mount | - | - | - | Panel Mount | 1.988" (50.50mm) | Alarms, ISM, Remote Control, Security Systems |
|
2344656-4WLAN DUAL BAND ANTENNA FPC V 200 |
1,092 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 2dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
ANTX100P111B24003RF ANT 2.45GHZ PCB TRACE CAB ADH |
2,060 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2.5 | - | 3.3dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
1461531200RF ANT 2.4/5GHZ FLAT PATCH 200MM |
6,495 |
|
Datasheet |
146153 | Tray | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Flat Patch | 2 | - | -10dB | 3dBi, 4.5dBi | 2 W | Cable - 200mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|
|
ANT000EXTERNAL ANTENNA WITH PANEL MOUN |
181 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Panel Mount | - | - |
|
1461870100RF ANT 2.4/5.5GHZ PCB TRACE U.FL |
4,076 |
|
Datasheet |
146187 | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 4.5dBi | - | Cable - 100mm | U.FL | - | - | - | Surface Mount | 0.004" (0.10mm) | WLAN |
|
APAE1575R1240ABDD1-TRF ANT 1.575GHZ CER PATCH PIN |
525 |
|
Datasheet |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.591GHz ~ 1.595GHz | Ceramic Patch | 1 | 1.5 | - | 0.6dBic | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GPS |
|

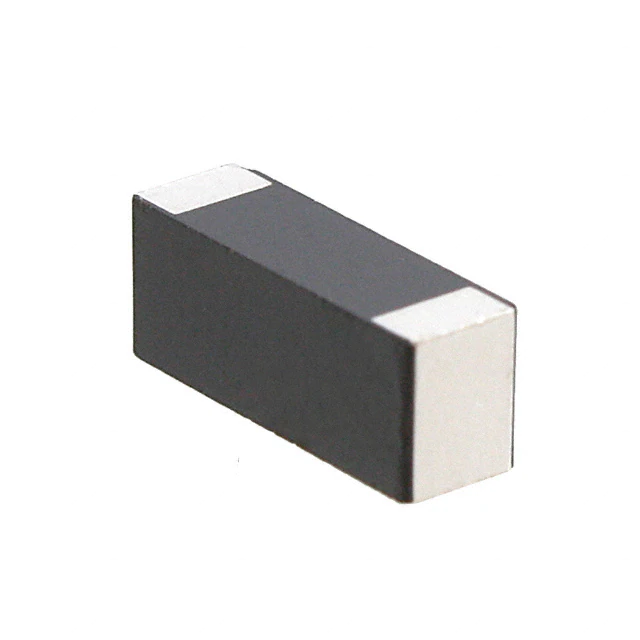

W3013RF ANT 868MHZ CHIP SOLDER SMD |
6,619 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 868MHz ~ 870MHz | Chip | 1 | - | -10dB | 1.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | - |
|
2108784-1PCB ANTENNA, SMD, 698-6000MHZ |
4,998 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 839MHz, 1.5945GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.614GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | PCB Trace | 5 | 3 | - | 4dBi, 0.98dBi, 1.93dBi, 2.3dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.125" (3.18mm) | CDMA, GSM, LTE |
|
ANTX100P113B24003RF ANT 2.45GHZ PCB TRACE CAB ADH |
2,866 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2.5 | - | 2.8dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
YEGT001AAGNSS L1 TERMINAL ANT SMA M RA |
1,642 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | 1.555GHz ~ 1.605GHz | Whip, Right Angle | 1 | 2 | - | 3.16dBi | - | - | SMA Male | IP64 | - | - | Connector Mount | 1.969" (50.00mm) | GNSS |
