RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YC0010AACERAMIC CHIP WIFI 2.4 SMD |
19,469 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | -10.2dB | 5dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, Wi-Fi |
|
|
YC0009AAWIFI/BT ANTENNA |
12,885 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | - | 4dBi | - | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Bluetooth, Wi-Fi |
|
H2U34W1H1Z0400WIFI/BT 2400-2500MHZ TELA CERAMI |
5,674 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

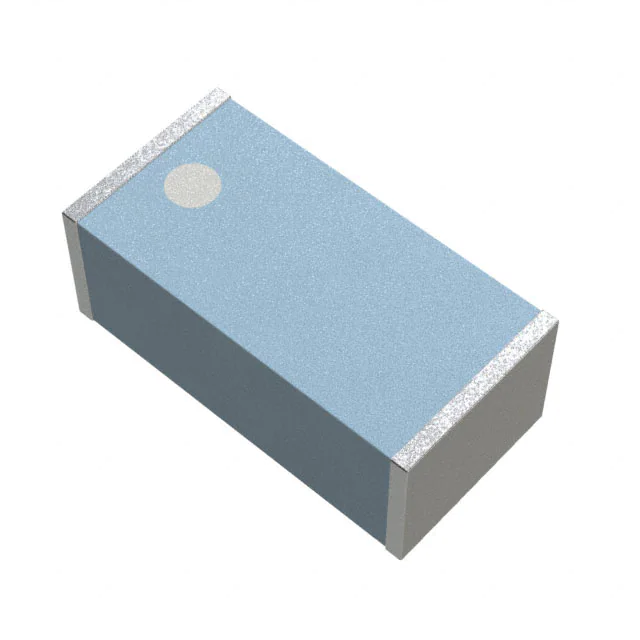

ANT3216LL00R2400ARF ANT 2.45GHZ CHIP SOLDER SMD |
34,792 |
|
Datasheet |
3216 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | - | 5.05dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
PRO-OB-607ANT ONBOARD SMD 2400 STAMPED |
24,961 |
|
Datasheet |
Embedded Antenna | Tape & Reel (TR) | Active | 802.15.4, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.497GHz | Stamped Metal | 1 | - | -6.3dB | -0.6dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | Bluetooth, IoT Devices, Wi-Fi, WLAN, Zigbee™ |
|

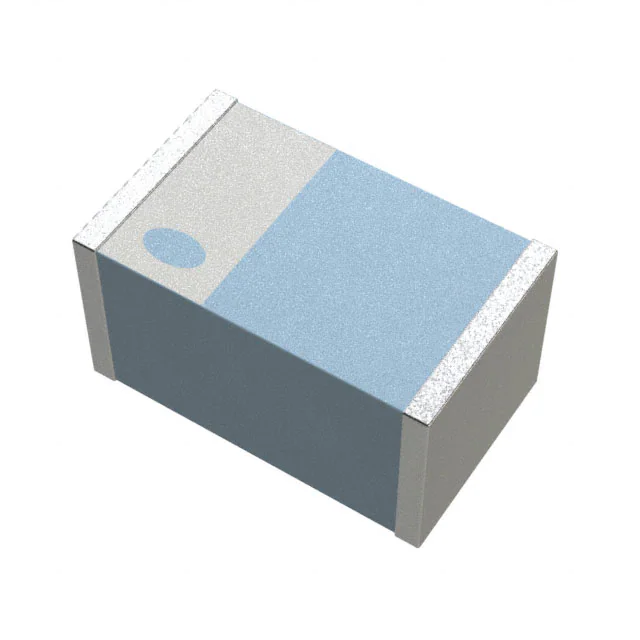

ANT2012LL00R2400ARF ANT 2.45GHZ CHIP SOLDER SMD |
14,462 |
|
Datasheet |
2012 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | 10dB | 3.77dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
AMCA31-101-2R450G-S1F-T3RF ANT 2.45GHZ CHIP SOLDER SMD |
1,438 |
|
Datasheet |
AMCA | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | - | Chip | 1 | 2 | - | 0.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, Wi-Fi |
|
ANT160920ST-1204A1RF ANT 916MHZ CHIP SOLDER SMD |
14,881 |
|
Datasheet |
ANT | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 916MHz | 902MHz ~ 930MHz | Chip | 1 | 3 | - | - | - | - | Solder | - | - | - | Surface Mount | - | General Purpose |
|
21196400012.4/5GHZ LTCC ANT 3.2X1.6MM |
17,128 |
|
Datasheet |
211964 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.85GHz | Ceramic Patch | 2 | - | -5dB, -6dB | 2.1dBi, 2.2dBi, 2.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
7000AT18A1600002ERF ANT 7GHZ CER PATCH SOLDER SMD |
14,225 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 7.22GHz | 6.2GHz ~ 8.24GHz | Ceramic Patch | 1 | - | 10dB | 2dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | General Purpose |
|
|
ANT1204F002R0315A1204 315M FR4 HELIX CHIP ANTENNA |
1,425 |
|
Datasheet |
1204 | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 315MHz | 300MHz ~ 400MHz | Chip | 1 | - | - | - | 1 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | ISM |
|
ANT161575ST-1202A1RF ANT 1.581GHZ CHIP SOLDER SMD |
6,400 |
|
Datasheet |
ANT | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.581GHz | 1.557GHz ~ 1.605GHz | Chip | 1 | 3 | - | - | - | - | Solder | - | - | - | Surface Mount | - | GNSS |
|
EMF2449A1-10MH4LEMBED,ASSY,D1.13,MHF4L 100MM,FLE |
570 |
|
Datasheet |
Mini NanoBlade Flex | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.3875GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 2.8dBi, 3.4dBi | - | Cable - 100mm | I-PEX MHF4L | - | - | - | Surface Mount | 0.004" (0.10mm) | WLAN |
|
EMF2471A3S-10MH4LANT, MINI NANOBLADE FLEX, MHF4L |
517 |
|
Datasheet |
NanoBlade | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.45GHz, 6.5625GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz, 6GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 2.4dBi, 4.4dBi, 5.2dBi | 5 W | Cable - 100mm | MHF4L | - | - | - | Surface Mount | 0.012" (0.30mm) | Wi-Fi |
|
|
ANT162442DT-2001A2RF ANT 2.4GHZ/5.5GHZ CHIP SLD |
8,051 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | 1.5 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
|
|
H2U646MHLQ0200915MHZ ISM 902-928MHZ TELA CERAM |
3,810 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Chip | 1 | 2 | - | 0.9dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | ISM |
|
AMCA72-2R470G-S1F-T4RF ANT 2.4GHZ CHIP SOLDER SMD |
37,512 |
|
Datasheet |
AMCA | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.37GHz ~ 2.57GHz | Chip | 1 | 2 | - | 2.7dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN |
|
|
2450AD18A7250001EBT/WIFI AND UWB MINI ANTENNA, SI |
2,116 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 7.25GHz | 2.4GHz ~ 2.48GHz, 6GHz ~ 8.5GHz | Chip | 2 | - | 6.5dB | 3dBi, 5.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Bluetooth, UWB, Wi-Fi |
|
ANT-315-HESMRF ANT 315MHZ HELICAL SOLDER SMD |
6,117 |
|
Datasheet |
HE | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 315MHz | 305MHz ~ 325MHz | Helical | 1 | 2 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.350" (8.89mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT016008LCS2442MA2RF ANT 2.4GHZ CHIP SOLDER SMD |
21,742 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 3 | - | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
