RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

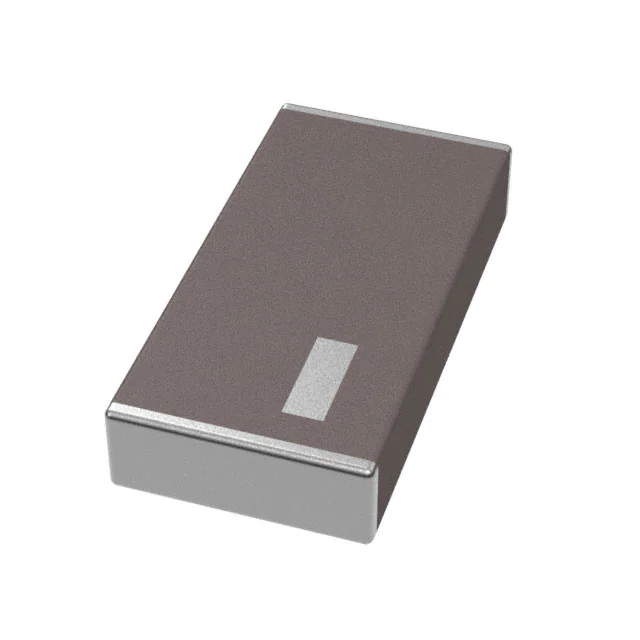

ACAG0301-1575-TRF ANT 1.575GHZ CHIP SOLDER SMD |
30,541 |
|
Datasheet |
ACAG | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Chip | 1 | 2 | - | 4.18dBi | - | - | Solder | - | - | - | Surface Mount | 0.024" (0.60mm) | GPS |
|

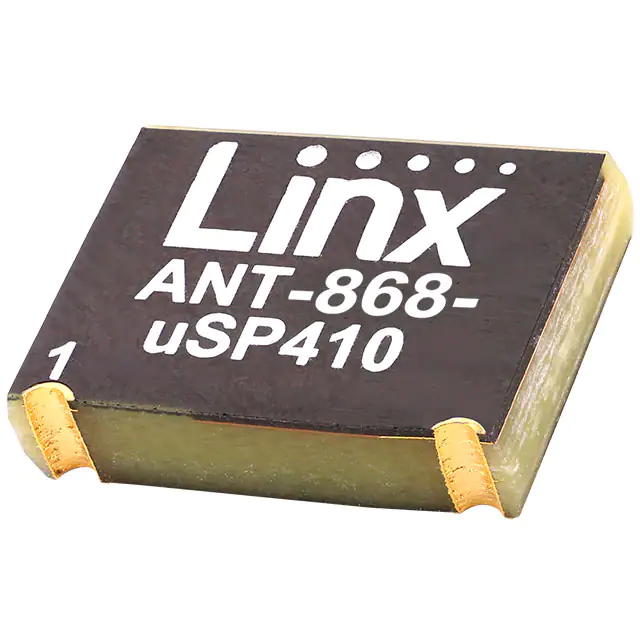

ANT-868-USP410RF ANT 868MHZ CHIP SOLDER SMD |
1,715 |
|
Datasheet |
uSP410 | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Chip | 1 | 2.1 | -9dB | 0.7dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.114" (2.90mm) | ISM, LoRaWAN, LPWA, Sigfox |
|

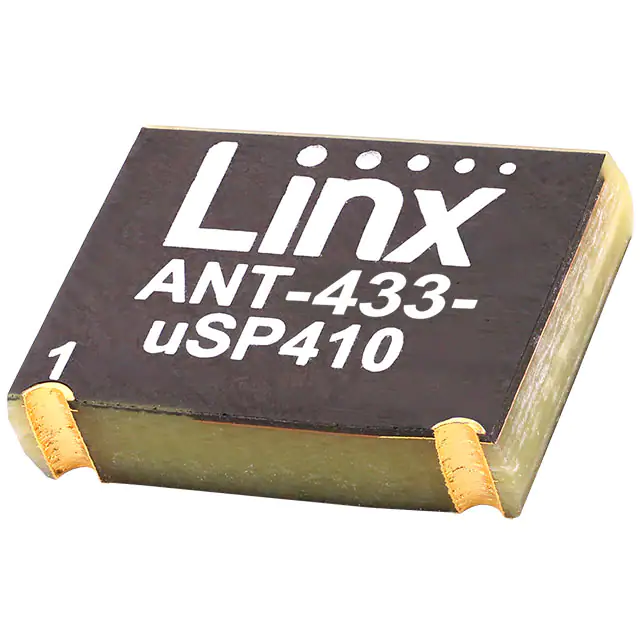

ANT-433-USP410RF ANT 433MHZ CHIP SOLDER SMD |
511 |
|
Datasheet |
uSP410 | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 430MHz ~ 435MHz | Chip | 1 | 1.6 | -12.7dB | -8dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.114" (2.90mm) | ISM, LoRaWAN, LPWA |
|
2195835-3ISM 868 / 915 MHZ ANTENNA |
7,042 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 928MHz | PCB Trace | 2 | 2.3 | - | 1.4dBi | 10 W | Cable - 150mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | ISM |
|
|
W3334B0290ANTENNA 2.4/5GHZ/DSRC |
2,262 |
|
Datasheet |
Internal Antenna | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.45GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | PCB Trace | 2 | 2 | -10dB | 4dBi, 5.5dBi | - | Cable - 290mm | U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
H2B1WD1A3B0200WIFI TRIPLE BAND WT32D1-KX 001 |
654 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 3dBi, 4dBi, 4dBi | - | Cable - 119mm | I-PEX MHF1 | - | - | - | Adhesive | 0.059" (1.50mm) | 802.11a/b/g/-c, Wi-Fi 6, Wi-Fi 6E |
|
|
YF0027AAFLEX ANTENNA WIFI 6 100MM UFL |
4,550 |
|
Datasheet |
- | Bulk | Active | Bluetooth, WiFi | Wide Band | 2.45GHz, 5.375GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 71.25GHz | Flat Patch | 3 | - | - | - | - | Cable - 100mm | I-PEX | - | - | - | Adhesive | 1.654" (42.00mm) | Bluetooth, Wi-Fi, WLAN |
|
|
YC0002AAEMBEDDED CELLULAR ANTENNA |
3,548 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 2 | 3 | - | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | 4G, LTE |
|
|
YC0017BAEMBEDDED CELLULAR ANTENNA |
2,616 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 830MHz, 2.205GHz, 3.6GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.4GHz ~ 3.8GHz | Chip | 3 | 4 | - | 4dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | LTE |
|
|
YFGA007AAGNSS FPC ANTENNA L1/L2/L5 1176.4 |
2,520 |
|
Datasheet |
- | Bulk | Active | Navigation | Wide Band | 1.18GHz, 1.58GHz | - | Flat Patch | 2 | - | - | - | - | Cable - 115mm | I-PEX-1 | - | - | - | Adhesive | 0.005" (0.12mm) | GNSS |
|
|
YC0017DA4G SMD CHIP ANTENNA, 25 X 7 X 3M |
1,954 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 2.25GHz | 698MHz ~ 3.8GHz | Chip | 1 | - | - | - | - | - | - | - | - | - | Surface Mount | 0.118" (3.00mm) | 2G, 3G, 4G |
|
|
YF0026AAWIFI/BT ANTENNA |
866 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 2 | - | 5.5dBi | - | Cable - 100mm | I-PEX MHF1 | - | - | - | Surface Mount | 0.005" (0.12mm) | Wi-Fi |
|
|
W3092RF ANT 2.4GHZ CHIP SOLDER SMD |
1,026 |
|
Datasheet |
The Blue Dot | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Chip | 1 | 3 | - | 0.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Bluetooth, Wi-Fi |
|
2195835-1ISM 868 / 915 MHZ ANTENNA |
2,000 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 928MHz | PCB Trace | 2 | 2.3 | - | 1.4dBi | 10 W | Cable - 50mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | ISM |
|
|
YF0007BAEMBEDDED CELLULAR ANTENNA |
471 |
|
Datasheet |
- | Bag | Not For New Designs | Cellular | Wide Band | 780MHz, 1.6934GHz, 1.9GHz, 2.5GHz | 600MHz ~ 960MHz, 1.4279GHz ~ 1.4959GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 4 | 5 | - | 4.7dBi | - | - | - | - | - | - | Surface Mount | 0.033" (0.85mm) | LTE |
|
|
YF0029AAFLEX , WIFI DUAL BAND,100MM,UFL |
1,313 |
|
Datasheet |
- | Bulk | Not For New Designs | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 2.3 | - | 6.64dBi, 6.64dBi, 6.64dBi | - | - | I-PEX MHF | - | - | - | Adhesive | 0.005" (0.12mm) | Wi-Fi |
|
|
YF0023CAFLEX PCB ANTNA WIFI 6 100MM UFL |
249 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular, WiFi | Wide Band | 2.45GHz, 5.375GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -8.8dB | 7dBi, 7dBi, 7dBi | - | - | - | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi |
|
ANT-GNSSCP-TH25L1RF ANT GNSS PATCH L1 25X25 PIN |
214 |
|
Datasheet |
GNSSCP | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.567GHz ~ 1.609GHz | Ceramic Patch | 3 | 5.6, 2.1, 1.7 | -3.1dB, -9dB, -11.7dB | 3.5dBi, 4dBi, 4dBi | 8 W | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
2118900-1GNSS , GPS AND GLONASS, CHIP ANT |
2,864 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.581GHz | 1.56GHz ~ 1.602GHz | Chip | 1 | 2 | - | - | 3 W | - | - | - | - | - | Surface Mount | 0.039" (1.00mm) | GNSS |
|
2108838-1CHIP ANT., SMD, BT/WI-FI 2.4GHZ |
24,589 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2:1 | - | 2.4dBi | - | - | - | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, Wi-Fi, Zigbee™ |
