RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YF0029CAEMBEDDED, 24102490 MHZ, 49205925 |
1,524 |
|
Datasheet |
- | Bulk | Active | Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.53GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.93GHz ~ 7.13GHz | Flat Patch | 3 | - | - | - | - | Cable - 100mm | I-PEX4 | - | - | - | Adhesive | - | Bluetooth, Wi-Fi |
|
YFGA001AAGNSS RF ANTENNA |
1,316 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.215GHz, 1.5825GHz | 1.16GHz ~ 1.27GHz, 1.56GHz ~ 1.605GHz | Flat Patch | 2 | 2 | - | 3.6dBi | - | Cable - 100mm | I-PEX MHF1 | - | - | - | Surface Mount | - | GPS |
|
001-0023RF ANT 2.4GHZ FLEXNOTCH CAB ADH |
1,038 |
|
Datasheet |
FlexNotch™ | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Flex Notch | 1 | 2.5 | - | 2dBi | - | Cable - 100mm | MHF4L | IP30 | - | - | Adhesive | - | - |
|
ANTX100P111B24553RF ANT 2.45/5.5125GHZ FLAT PATCH |
1,993 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | Flat Patch | 2 | 2.5 | - | 3.2dBi, 3.4dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
YE0011AAEXTERNAL CELLULAR ANTENNA |
1,765 |
|
Datasheet |
- | Bag | Not For New Designs | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 2 | 3.5 | - | 3dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | 3G |
|
|
YP0009AAPCB ANT, 15006000, 5G, 190MM |
1,596 |
|
Datasheet |
- | Bag | Not For New Designs | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.43GHz, 3.65GHz, 3.75GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.5GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 4GHz, 3.3GHz ~ 5GHZ, 4GHz ~ 6GHz, 5GHz ~ 6GHz | PCB Trace | 9 | 3 | - | 2.3dBi, 1.8dBi, 3.2dBi, 4.42dBi, 2.8dBi, 4.2dBi, 3.6dBi | - | - | I-PEX MHF4 | - | - | - | Adhesive | 0.037" (0.95mm) | 2G, 3G, 4G, 5G |
|
YE0032AAWIFI/BT ANTENNA |
1,496 |
|
Datasheet |
- | Bag | Not For New Designs | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Right Angle | 2 | 2, 3 | - | 1.8dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | Wi-Fi |
|
SRF2W021-100RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
1,138 |
|
Datasheet |
Amoris | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Flat Patch | 2 | 1.7 | -14dB, -10dB | 2.8dBi, 5.1dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Wi-Fi |
|
|
YF0017AAFLEX ANTENNA 1.5-6GHZ 193MM MHF4 |
689 |
|
Datasheet |
- | Bag | Not For New Designs | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.43GHz, 3.65GHz, 3.75GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.5GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 4GHz, 3.3GHz ~ 5GHZ, 4GHz ~ 6GHz, 5GHz ~ 6GHz | Flat Patch | 9 | 3 | - | 2.3dBi, 3.4dBi, 3.4dBi, 4.5dBi, 4.5dBi, 4.5dBi, 3.5dBi | - | - | I-PEX MHF4 | - | - | - | Adhesive | 0.005" (0.13mm) | 2G, 3G, 4G, 5G, LPWA |
|
W1095ANT EXT 2.4-2.5GHZ SMA IP65 |
1,215 |
|
Datasheet |
External Stubby | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2.5 | - | 1dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 1.996" (50.69mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
2344655-6WLAN DUAL BAND ANTENNA PCB H 100 |
13,423 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
2344654-6WLAN DUAL BAND ANTENNA PCB V 100 |
5,305 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|

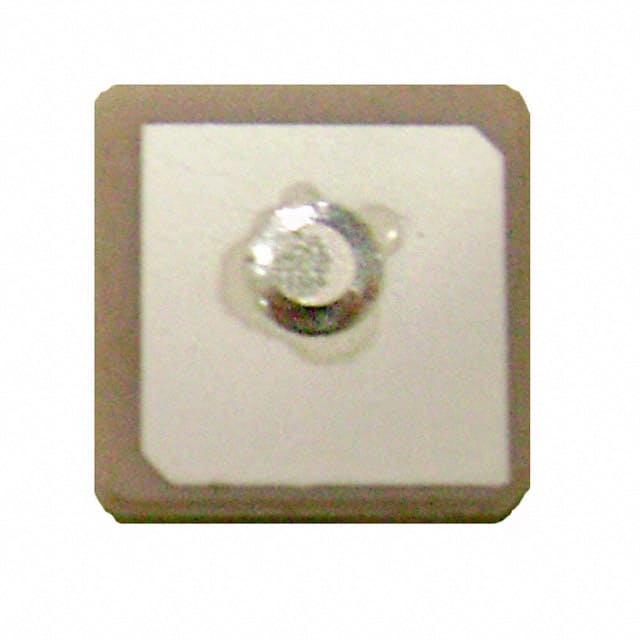

APAE1575R1820ABDC1-TRF ANT 1.575GHZ CER PATCH PIN |
30,928 |
|
Datasheet |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.577GHz | Ceramic Patch | 1 | 1.5 | - | 3.3dBic | - | - | Pin | - | - | - | Adhesive | 0.102" (2.60mm) | GPS |
|
ANT2525B00BT1516SRF ANT 1.575/1.602GHZ CER PATCH |
530 |
|
Datasheet |
2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.606GHz | Ceramic Patch | 2 | 2 | -32.828dB, -31.357dB | 4.72dBi, 4.51dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
W3100CANT HELICAL COIL 915MHZ |
9,689 |
|
Datasheet |
Helix Coil | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | - | Helical | 1 | 2 | - | -0.5dBi | 2 W | - | Solder | - | - | - | Solder | 0.386" (9.80mm) | ISM |
|
|
FXP890.07.0100C860-928MHZ ISM/LORA COMPACT FLEX |
186 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | PCB Trace | 2 | - | - | -0.9dBi, -0.06dBi | 10 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Surface Mount | 0.063" (1.60mm) | ISM, LoRa |
|
2344657-5WLAN DUAL BAND ANTENNA FPC H 50 |
2,921 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
2344656-5WLAN DUAL BAND ANTENNA FPC V 50 |
1,185 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
1461531150RF ANT 2.4417GHZ/5.415GHZ PCB |
7,314 |
|
Datasheet |
146153 | Tray | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4417GHz, 5.415GHz | 2.4GHz, 5GHz | PCB Trace | 2 | - | -10dB | 2.8dBi, 3.7dBi | - | Cable - 150mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi, Zigbee™ |
|
2344656-1WLAN DUAL BAND ANTENNA FPC V 50M |
4,865 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 2dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
