RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT1204F007R0870ARF ANT 870MHZ CHIP SOLDER SMD |
3,000 |
|
Datasheet |
1204 | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 870MHz | - | Chip | 1 | - | 10dB | 1.67dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | General Purpose |
|
2195835-2ISM 868 / 915 MHZ ANTENNA |
1,020 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 928MHz | PCB Trace | 2 | 2.3 | - | 1.4dBi | 10 W | Cable - 100mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | ISM |
|
ENB2449A1-20UFLEMBED,NBLADE,200L,UFL |
398 |
|
Datasheet |
* | Bulk | Active | Bluetooth, WiFi | Wide Band | 2.45GHz, 5.25GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.35GHz, 5.6GHz ~ 6GHz | - | 3 | 2 | - | 3.19dBi, 4.1dBi, 4.35dBi | - | Cable - 200mm | I-PEX MHF | - | - | - | - | 0.650" (16.50mm) | Bluetooth, WLAN |
|
7488930245RF ANT 2.4GHZ CHIP SOLDER SMD |
5,992 |
|
Datasheet |
WE-MCA | Tape & Reel (TR) | Active | Bluetooth, Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 0.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, GSM, WLAN |
|
ANT-915-VHETHRF ANT 915MHZ MON HELICAL SLD TH |
708 |
|
Datasheet |
VHETH | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Helical | 1 | 2.3 | -8.1dB | 0.9dBi | 15 W | - | Solder | - | - | - | Through Hole | 0.280" (7.00mm) | ISM, LoRaWAN |
|
1002427RF ANT 868MHZ/915MHZ STAMPED MET |
4,792 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General ISM, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 868MHz, 915MHz, 1.575GHz | 868MHz, 915MHz, 1.561GHz ~ 1.602GHz | Stamped Metal | 5 | 2 | - | 3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.071" (1.80mm) | Beidou, GLONASS, GPS, ISM, LoRa, LPWAN, Sigfox |
|
2195835-5ISM 868 / 915 MHZ ANTENNA |
2,203 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 928MHz | PCB Trace | 2 | 2.3 | - | 1.4dBi | 10 W | Cable - 50mm | MHF4 | - | - | - | Adhesive | 0.008" (0.20mm) | ISM |
|
WRL-17841WIDE BAND 4G LTE INTERNAL FPC AN |
642 |
|
Datasheet |
- | Bulk | Active | Bluetooth, Cellular | UHF (1GHz ~ 2GHz) | 1.7GHz | 700MHz ~ 2.7GHz | Flat Patch | 1 | 1.8 | - | 8dBi | 30 W | Cable - 100mm | I-PEX | - | - | - | Surface Mount | - | 4G, Bluetooth, LTE, LoRa |
|
1461539050WIFI 6E AUTOMOTIVE FLEXIBLE ANTE |
9,706 |
|
Datasheet |
- | Tray | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -10dB | 3.2dBi, 4.2dBi | - | Cable - 50mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
W3139ANTENNA HELIX SMT ISM868/915 |
3,229 |
|
Datasheet |
SMD Helical Antenna | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 860MHz ~ 930MHz | Helical | 2 | - | -8dB, -10dB | -0.5dBi, -1dBi, -2.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | ISM |
|
2195835-6ISM 868 / 915 MHZ ANTENNA |
2,662 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 928MHz | PCB Trace | 2 | 2.3 | - | 1.4dBi | 10 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.008" (0.20mm) | ISM |
|
2195835-4ISM 868 / 915 MHZ ANTENNA |
215 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 928MHz | PCB Trace | 2 | 2.3 | - | -0.9dBi | 10 W | Cable - 200mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | ISM |
|

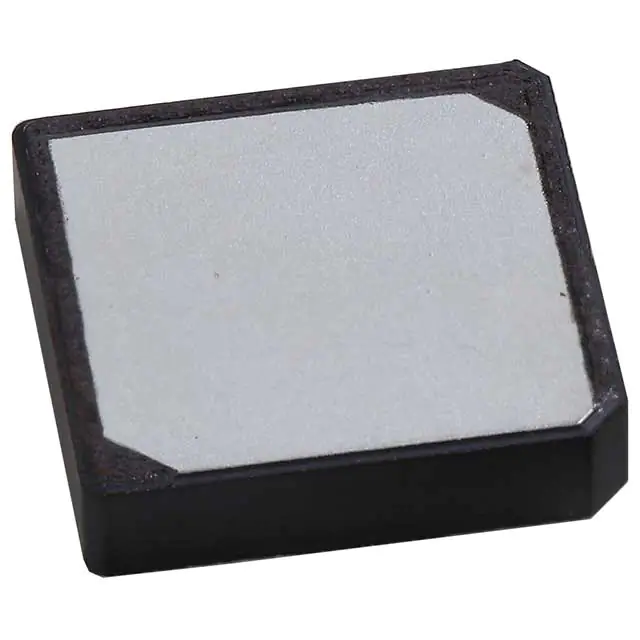

ANT1818B00BT1516SRF ANT 1.575/1.602GHZ CER PATCH |
2,524 |
|
Datasheet |
1818 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.606GHz | Ceramic Patch | 2 | 2 | -17.801dB, -17.008dB | 1.89dBi, 2.59dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
H2B1BC4A1B015LUNICTRON WW20D1 - WIFI, 2400~250 |
2,352 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.442GHz | 2.4GHz ~ 2.484GHz | PCB Trace | 1 | 2 | - | 4dBi | - | Cable - 100mm | I-PEX MHF1 | - | - | - | Adhesive | 0.020" (0.50mm) | 802.11b/g/n |
|
|
BTPA0061204G0C4A04ANTENNA FPC 698-2700MHZ |
370 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | - | -10dB, -5dB | 4.5dBi, 4.5dBi, 4.5dBi | 1 W | Cable - 100mm | I-PEX | - | - | - | Adhesive | 0.016" (0.40mm) | 4G, LTE |
|
|
1461539150WIFI 6E AUTOMOTIVE FLEXIBLE ANT |
9,047 |
|
Datasheet |
- | Tray | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -10dB | 2.4dBi | - | Cable - 150mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
2108792-3FPC ANT, MHF, 100MM, WI-FI 6E TR |
11,758 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 100mm | MHF | - | - | - | Adhesive | 0.005" (0.12mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
SR4I052VELOX ISM 868/915MHZ SMD ANTENNA |
8,147 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 896MHz | 863MHz ~ 928MHz | PCB Trace | 1 | 2.4 | -7.5dB | 1.6dBi | - | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | ISM |
|
|
YC0013AAGNSS RF ANTENNA |
6,612 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.559GHz ~ 1.606GHz | Chip | 1 | - | -10.2dB | 1.19dBi | - | - | Solder | - | - | - | Surface Mount | 0.024" (0.60mm) | GNSS |
|
|
YF0022DAEMBEDDED, 700~2690, LTE (4G), PC |
2,117 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 830MHz, 1.94GHz, 2.49GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Flat Patch | 3 | - | - | - | - | Cable - 75mm | I-PEX-1 | - | - | - | Adhesive | 0.079" (2.00mm) | 2G, 3G, 4G, LTE |
