RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TANGO16/3M/SMAM/SMAM/S/S/26RF ANT 850/868MHZ DOME SMA MALE |
37 |
|
Datasheet |
TANGO 16 | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 868MHz, 900MHz, 915MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Dome | 8 | 1.5 | - | 2dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | GPRS, GPS, GSM |
|
SPWB22150WIDE BAND VHF, 136 - 174 MHZ, SM |
6 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Helical | 1 | - | - | - | - | - | SMA Female | - | - | - | Connector Mount | 6.750" (171.45mm) | - |
|
BOA51004NMRF ANT 5.5GHZ WHIP STR N TYPE |
22 |
|
Datasheet |
BOA | Bag | Active | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.1GHz ~ 5.9GHz | Whip, Straight | 1 | 1.5 | - | 4dBi | 20 W | - | N Type Male | IP67 | - | - | Connector Mount, Pole Mount | 5.300" (134.62mm) | Bluetooth, Wi-Fi |
|
|
BOA51004NFRF ANT 5.5GHZ WHIP STR N TYPE |
21 |
|
Datasheet |
BOA | Bag | Active | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.1GHz ~ 5.9GHz | Whip, Straight | 1 | 1.5 | - | 4dBi | 20 W | - | N Type Female | IP67 | - | - | Connector Mount, Pole Mount | 5.500" (139.70mm) | Bluetooth, Wi-Fi |
|
OSCAR1A/10M/SMAM/S/S/31RF ANT 850MHZ/900MHZ WHIP STR |
17 |
|
Datasheet |
OSCAR 1A | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 5 | 1.8 | - | 5dBi | - | - | SMA Male | - | - | - | Bracket Mount | 8.071" (205.00mm) | 3G, 4G, 5G, GPRS, GSM, LoRa, LTE, NB-IOT, UMTS |
|
BMLPVDB800/1900HDRF ANT 883MHZ/2.105GHZ DOME CONN |
9 |
|
Datasheet |
MLPV | Bag | Active | Bluetooth, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 883MHz, 1.85GHz | 806MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Dome | 2 | 2 | - | 3dBi, 4dBi | 100 W | - | - | IP67 | - | - | Connector Mount, NMO, Stud, Through Hole | 2.400" (60.96mm) | Bluetooth, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi |
|
NMO150BCOIL/WHIP, 3 DB, 144 - 174 MHZ, |
20 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | - | - | 5.14dBi | 200 W | - | NMO | - | - | - | Magnetic | 51.496" (130.80cm) | - |
|
PX0409RF ANT 900MHZ/1.8GHZ/1.9GHZ SMB |
38 |
|
Datasheet |
Buccaneer® 400 | Bulk | Active | Bluetooth | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz, 1.9GHz | 850MHz ~ 900MHz, 1.8GHz, 1.9GHz | Whip, Right Angle | 3 | 2 | - | - | - | - | SMB | IP68, IP69K | - | - | Screw | 3.406" (86.50mm) | Bluetooth |
|
710259RF ANT 829MHZ PUCK SMA M MNT |
36 |
|
Datasheet |
AllDisc | Box | Active | Cellular | Wide Band | 829MHz, 1.795GHz, 2.045GHz, 2.595GHz, 3.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.92GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Puck | 3 | 2, 2.5, 2.7, 3 | - | 4.5dBi, 5dBi, 4.5dBi, 3.5dBi, 7dBi | 10 W | Cable - 500mm | SMA Male | IP6K9K | - | - | Bracket Mount, Through Hole | 2.165" (55.00mm) | 2G, 3G, 4G, 5G, NB-IoT |
|
TRA9023RF ANT 915MHZ DOME NMO BASE MT |
18 |
|
Datasheet |
Phantom® | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Dome | 1 | 2 | - | 3dBi | 100 W | - | NMO | - | - | - | Base Mount | 2.700" (68.58mm) | GSM |
|
B1322NRF ANT 153MHZ WHIP STR NMO BASE |
11 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 153MHz | 132MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 2.4dBi | - | - | NMO | - | - | - | Base Mount | 57.000" (144.78cm) | - |
|
B1323-LRF ANT 153MHZ WHIP STR NMO BASE |
10 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 153MHz | 132MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 3dBi | - | - | NMO | IP67 | - | - | Base Mount | 57.000" (144.78cm) | - |
|

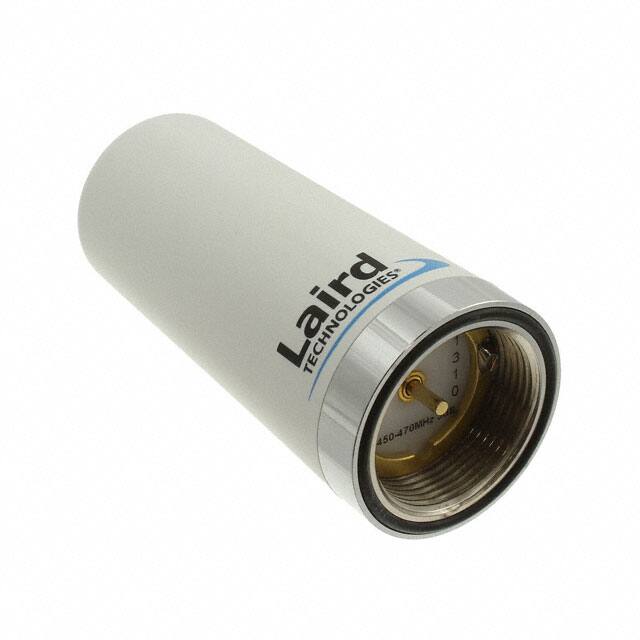

TRA4503RF ANT 460MHZ DOME NMO BASE MT |
9 |
|
Datasheet |
Phantom® | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Dome | 1 | 2 | - | 3dBi | 100 W | - | NMO | - | - | - | Base Mount | 3.300" (83.82mm) | - |
|
BB4503RF ANT 460MHZ WHIP STR NMO BASE |
6 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 2 | - | 3dBi | - | - | NMO | - | - | - | Base Mount | 13.000" (330.20mm) | - |
|
MWU4063SRF ANT 438MHZ WHIP STR NMO MNT |
35 |
|
Datasheet |
MWU | Bag | Active | - | UHF (300MHz ~ 1GHz) | 438MHz | 406MHz ~ 470MHz | Whip, Straight | 1 | 2 | - | 3dBi | 200 W | - | - | - | - | - | NMO Mount | 12.000" (304.80mm) | TETRA/P25 |
|
B4505CNRF ANT 460MHZ WHIP STR NMO BASE |
11 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 2 | - | 5dBi | 100 W | - | NMO | - | - | - | Base Mount | 32.250" (819.15mm) | - |
|
B4505CRF ANT 460MHZ WHIP STR NMO BASE |
11 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 2 | - | 5dBi | - | - | NMO | - | - | - | Base Mount | 37.000" (939.80mm) | - |
|
318020690LORA FIBERGLASS ANTENNA KIT; 863 |
85 |
|
- |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Whip, Straight | 1 | 2.5 | - | 5.8dBi | - | Cable - 1m | N Type Male | - | - | - | Bracket Mount | 31.496" (800.00mm) | LoRa |
|
ANT-M4G3-SMA+3DBI 4G GSM/LTE OMNI WALL MOUNT |
4 |
|
Datasheet |
- | Bag | Active | Cellular, WiFi | Wide Band | 825MHz, 1.94GHz, 2.55GHz | 690MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | Whip, Straight | 3 | 2.5 | - | 3dBi | - | Cable - 3m | SMA Male | - | - | - | Bracket Mount | 10.630" (270.00mm) | 4G, GSM, LTE, Wi-Fi |
|
B8965CRF ANT 933MHZ WHIP STR NMO BASE |
4 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 933MHz | 896MHz ~ 970MHz | Whip, Straight | 1 | - | - | 5dB | - | - | NMO | - | - | - | Base Mount | 13.375" (339.72mm) | - |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
