RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NMO3E900BBASE / WHIP ENCLOSED, 3 DB, 890 |
16 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Whip, Straight | 1 | - | - | 5.4dBi | 200 W | - | NMO | - | - | - | Magnetic | 13.500" (342.90mm) | - |
|
ANT-GNRM-L15A-3ANTENNA, REMOTE ACTIVE CERAMIC P |
75 |
|
Datasheet |
GNRM | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Module | 5 | 1.2, 1.3 | -16.6dB, -18.4dB, -22.7dB | 28.9dBi, 27.2dBi, 30.5dBi, 30.5dBi, 30.5dBi | - | Cable - 3m, LNA | SMA Male | - | - | - | Magnetic | 0.642" (16.30mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
WLP.2450.50.6.A.08WI-FI OMNIDIRECTIONAL CP 50MM SI |
31 |
|
Datasheet |
- | Box | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | - | - | 3.17dBi, 3.46dBi, 2.98dBi | - | - | SMA Female | - | - | - | Surface Mount | 0.252" (6.40mm) | Wi-Fi |
MAXMFT(S).jpg)
|
BMAX9155SRF ANT 917.5MHZ WHIP STR NMO MNT |
20 |
|
Datasheet |
MAX BASE | Bag | Active | General ISM, WiFi | UHF (300MHz ~ 1GHz) | 917.5MHz | 890MHz ~ 945MHz | Whip, Straight | 1 | 1.5 | - | 4dBi | 100 W | - | - | - | - | - | NMO Mount | 13.000" (330.20mm) | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LTE, Wi-Fi |
|

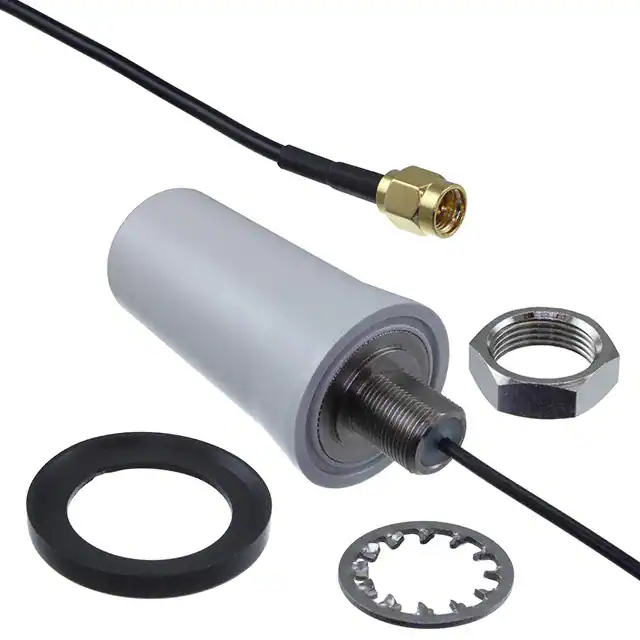

W1979RF ANT 829MHZ/1.94GHZ DOME PANEL |
85 |
|
Datasheet |
LPT Antenna | Bulk | Active | - | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Dome | 3 | 2, 2.5 | - | 1.4dBi, 2.7dBi, 3.5dBi | 10 W | Cable - 700mm | SMA Male | IP67 | - | - | Panel Mount | 3.039" (77.20mm) | General Purpose |
|
NMO450BBASE / WHIP, 3.4 DB, 450 - 470 M |
76 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | - | - | 5.6dBi | 200 W | - | NMO | - | - | - | Magnetic | 33.000" (838.20mm) | - |
|
BMLPVDB800/1900SRF ANT 883MHZ/2.105GHZ DOME PAN |
14 |
|
Datasheet |
MLPV | Bag | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 883MHz, 1.85GHz | 806MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Dome | 2 | 2 | - | 3dBi, 4dBi | 100 W | - | - | IP67 | - | - | Connector Mount, NMO, Stud, Through Hole | 1.790" (45.47mm) | - |
|

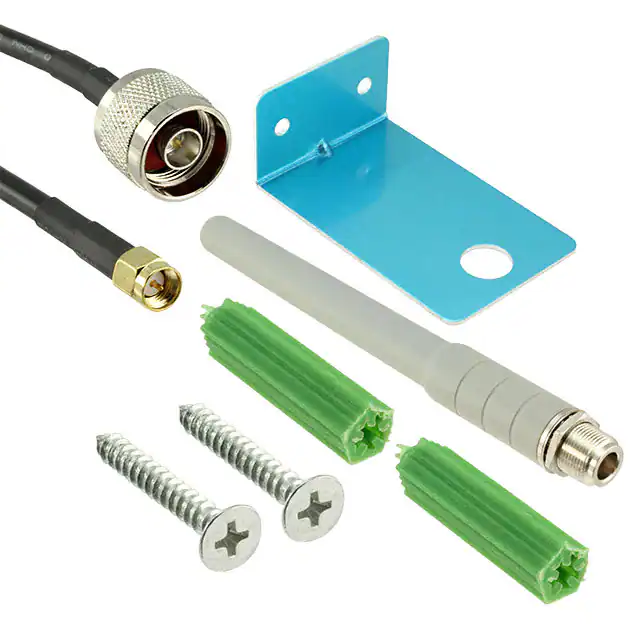

ANT-433WM3-SMARF ANT 433MHZ WHIP STR SMA MALE |
12 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | 1.8 | - | 3dBi | - | - | SMA Male | - | - | - | Bracket Mount | 7.087" (180.00mm) | General Purpose |
|
W5067RADOME OMNI 863-928 MHZ NPB |
79 |
|
Datasheet |
Antenna | Bulk | Active | - | Wide Band | 829MHz, 1.94GHz, 2.55GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17MHz, 2.4GHz ~ 2.7GHz | Whip, Straight | 3 | 2 | - | 0.7dBi, 1dBi, 2dBi | 3 W | - | N Type Female | IP67 | - | - | Connector Mount | 9.083" (230.70mm) | General Purpose |
|
MIKE12/3M/SMAM/RP/S/315DBI WIFI 2.4-2.5 GHZ MAG MOUNT |
7 |
|
Datasheet |
MIKE 12 | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 5dBi | 50 W | - | RP-SMA Male | - | - | - | Magnetic | 8.071" (205.00mm) | Wi-Fi, WLAN |
|
W771N-LTERF ANT 700MHZ/850MHZ DOME N MALE |
49 |
|
Datasheet |
771 | Bulk | Active | - | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Dome | 3 | 2 | - | 2dBi, 2dBi, 3dBi | - | - | N Type Male | IP65 | - | - | Panel Mount | 3.067" (77.90mm) | - |
|
BOA24006NFRF ANT 2.45GHZ WHIP STR N TYPE |
30 |
|
Datasheet |
BOA | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | - | 6dBi | 40 W | - | N Type Female | IP67 | - | - | Connector Mount, Pole Mount | 15.000" (381.00mm) | Bluetooth, Wi-Fi |
|
BOAH515905NMRF ANT 5.5GHZ DOME N TYPE M CONN |
10 |
|
Datasheet |
BOAH | Bag | Active | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.1GHz ~ 5.9GHz | Dome | 1 | 2 | - | 5dBi | 40 W | - | N Type Male | IP67 | - | - | Connector Mount, Pole Mount | 6.320" (160.53mm) | Bluetooth, Wi-Fi |
|
BOA34006NFRF ANT 3.6GHZ WHIP STR N TYPE |
6 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (3GHz ~ 4GHz) | 3.6GHz | 3.4GHz ~ 3.8GHz | Whip, Straight | 1 | 2 | - | 6dBi | 20 W | - | N Type Female | IP67 | - | - | Pole Mount | 9.160" (232.66mm) | 2G, 3G, 5G, Cellular, LTE |
|
MHB5802SRF ANT 159MHZ WHIP STR NMO NMO |
25 |
|
Datasheet |
MHB | Bag | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | 1 | - | 1dBi | - | - | NMO | - | - | - | NMO Mount | 51.969" (132.00cm) | TETRA/P25 |
|
HCF69273BN-60ARF ANT OMNI BLACK SMA |
8 |
|
Datasheet |
- | Bulk | Active | - | Wide Band | 761MHz, 859MHz, 920MHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz | 698MHz ~ 960MHz, 1.69GHz ~ 2.7GHz | Dome | 8 | 2, 2.6 | - | 1.5dBi, 1.2dBi, 1.2dBi, 3.3dBi, 3.4dBi, 3.6dBi, 3.5dBi, 3.8dBi | 10 W | Cable - 608mm | SMA Male | IP67 | - | - | Panel Mount | 3.150" (80.00mm) | General Purpose |
|
TRAB4503RF ANT 460MHZ DOME NMO BASE MT |
32 |
|
Datasheet |
Phantom® | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Dome | 1 | 2 | - | 3dBi | 100 W | - | NMO | - | - | - | Base Mount | 3.300" (83.82mm) | - |
|
BOAH515905NFRF ANT 5.5GHZ DOME N TYPE F CONN |
20 |
|
Datasheet |
BOAH | Bag | Active | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.1GHz ~ 5.9GHz | Dome | 1 | 2 | - | 5dBi | 40 W | - | N Type Female | IP67 | - | - | Connector Mount, Pole Mount | 6.550" (166.37mm) | Bluetooth, Wi-Fi |
|
TANGO47/2.5M/SMAM/SMAM/S/S/174G/LTE MINI WHIP STYLE PANEL MOU |
35 |
|
Datasheet |
TANGO 47 | Bulk | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz | - | Module | 7 | 1.5, 2 | - | 2dBi, 3dBi | - | Cable - 2.5m | SMA Male (2) | - | - | - | Panel Mount | 0.630" (16.00mm) | 2G, 3G, 4G, GPS, GSM |
|
WM.90.A305111RF ANT 748MHZ/892MHZ WHIP STR |
68 |
|
Datasheet |
- | Box | Active | - | Wide Band | 748MHz, 892MHz, 1.9GHz, 2.6GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.57GHz ~ 2.69GHz | Whip, Straight | 4 | - | -3dB, -6dB, -6dB, -6dB | -2.75dBi, 2.02dBi, 5.09dBi, 4.65dBi | 2 W | - | SMA Male | IP67 | - | - | Bracket Mount | 9.764" (248.00mm) | - |
