RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRA24003NPRF ANT 2.4GHZ DOM N FEM PAN 2.7" |
14 |
|
Datasheet |
Phantom® | Bulk | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 2 | - | 3dBi | 100 W | - | N Type Female | - | - | - | Panel Mount | 2.300" (58.42mm) | GSM, Wi-Fi |
|
BB4502NSRF ANT 460MHZ WHIP STR NMO BASE |
6 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 2 | - | 2.4dBi | - | - | NMO | - | - | - | Base Mount | 12.500" (317.50mm) | - |
|
OC35506P-FNFCBRS LOW PIM OMNIDIRECTIONAL ANT |
6 |
|
Datasheet |
CBRS | Bulk | Active | - | UHF (3GHz ~ 4GHz) | 3.625GHz | 3.55GHz ~ 3.7GHz | Whip, Straight | 1 | 1.5 | - | 6.1dBi | - | - | N Type Female | IP67 | - | - | Bracket Mount | 10.118" (257.00mm) | CBRS |
|
NMO450CHWNMO HW COIL / WHIP, 5.5 DB, 450 |
3 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | - | - | 5.5dBi | 200 W | - | NMO | - | - | - | Magnetic | 35.500" (901.70mm) | - |
|
OSCAR3A/X/FMEM/S/S/19RF ANT 850MHZ/900MHZ YAGI FME ML |
9 |
|
Datasheet |
OSCAR 3A | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | - | Yagi, 8-Element | 4 | 1.6 | - | 11dBi | - | - | FME Male | - | - | - | Bracket Mount | 22.441" (570.00mm) | GPRS, GSM |
|
OSCAR420/0.4M/NTYPEF/S/S/19MIMO 2-PORT LTE OMNI ANTENNA 360 |
17 |
|
Datasheet |
OSCAR 420 | Bulk | Active | Cellular, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 830MHz, 2.2GHz | 700MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Whip, Straight | 2 | 3.2 | - | 3dBi, 7dBi | - | Cable - 400mm | N Type Female (2) | - | - | - | Bracket Mount | 14.173" (360.00mm) | 3G, 4G, Wi-Fi |
|

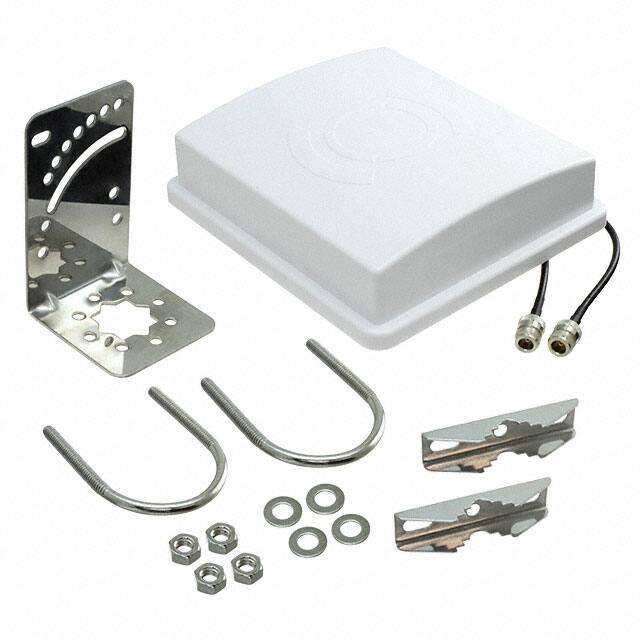

OSCAR421/0.4M/NTYPEF/S/S/19MIMO 2-PORT 5/9 DBI LTE PANEL AN |
10 |
|
Datasheet |
OSCAR 421 | Bulk | Active | Bluetooth, Cellular, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 830MHz, 2.2GHz | 700MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Module | 2 | 2.5 | - | 5dBi, 9dBi | 100 W | Cable - 400mm | N Type Female (2) | - | - | - | Bracket Mount | 7.874" (200.00mm) | 2G, 3G, 4G, Wi-Fi |
|
MYA1503KRF ANT 162MHZ YAGI S0239 BRKT |
11 |
|
Datasheet |
MYA | Tube | Active | - | VHF (f < 300MHz) | 162MHz | 150MHz ~ 174MHz | Yagi, 3-Element | 1 | 1.5 | - | 9.2dBi | 250 W | - | SO239 | - | - | - | Bracket Mount | 42.000" (106.68cm) | - |
|
NMOWB150BBASE / WHIP, 3 DB, 135 - 174 MHZ |
20 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 154.5MHz | 135MHz ~ 174MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 51.732" (131.40cm) | - |
|
MYA1503KNRF ANT 162MHZ YAGI S0239 BRKT |
16 |
|
Datasheet |
MYA | Tube | Active | - | VHF (f < 300MHz) | 162MHz | 150MHz ~ 174MHz | Yagi, 3-Element | 1 | 1.5 | - | 9.2dBi | 250 W | - | SO239 | - | - | - | Bracket Mount | 42.000" (106.68cm) | - |
|
CFSA35606P-30NFULTRA-LOW PROFILE/ LOW PIM ANT |
8 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | - | - | Module | 13 | 2.5, 2 | - | - | 50 W | - | N Type Female | - | - | - | Panel Mount | 0.299" (7.60mm) | - |
|
RO5806NFRF ANT 5.8GHZ WHIP STR N FEM |
8 |
|
Datasheet |
- | Bulk | Active | Cellular | SHF (f > 4GHz) | 5.8GHz | 5.725GHz ~ 5.875GHz | Whip, Straight | 1 | 2 | - | 6dBi | 20 W | - | N Type Female | IP67 | - | - | Bracket Mount | 6.750" (171.45mm) | LTE |
|
B4505CNSRF ANT 460MHZ WHIP STR NMO BASE |
9 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 2 | - | 5dBi | 100 W | - | NMO | - | - | - | Base Mount | 32.250" (819.15mm) | - |
|
|
NMO2/70BCOIL / WHIP, 2.4 DB/4 DB,144-148 |
18 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 146MHz, 445MHz | 144MHz ~ 148MHz, 440MHz ~ 450MHz | Whip, Straight | 2 | - | - | 3.8dBi, 5.2dBi | 100 W | - | NMO | - | - | - | Magnetic | 34.500" (876.30mm) | - |
|
S8060BOMNI POLMNT 17IN NF |
7 |
|
Datasheet |
S8xxxB | Bulk | Active | WiFi | UHF (300MHz ~ 1GHz) | 837MHz | 806MHz ~ 868MHz | Whip, Straight | 1 | 1.5 | - | - | - | - | N Type Female | - | - | - | Bracket Mount | 17.500" (444.50mm) | WiMax™ |
|
BWA-9O5-CANTENNA 900MHZ SMA MALE |
2 |
|
Datasheet |
BWA | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | - | Whip, Straight | 1 | - | - | 5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 16.929" (430.00mm) | General Purpose |
|
CB27RF ANT 29MHZ WHIP STR NMO BASE |
9 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 29MHz | 26.75MHz ~ 31MHz | Whip, Straight | 1 | 2 | - | 0dB | - | - | NMO | - | - | - | Base Mount | 52.500" (133.35cm) | - |
|
OSCAR17/X/TNC/S/S/19RF ANT 900MHZ/1.8GHZ WHIP STR |
10 |
|
Datasheet |
OSCAR 17 | Bulk | Active | Bluetooth, Cellular, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 4 | 1.6 | - | 10dBi | - | - | TNC Female | - | - | - | Bracket Mount | 1.339" (34.00mm) | 2G, 3G, 4G, 5G, GPRS, GSM, UMTS, Wi-Fi |
|
PC8010NRF ANT 837MHZ YAGI N TYP BRKT MT |
6 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 837MHz | 806MHz ~ 869MHz | Yagi, 10-Element | 1 | - | - | 11dBd | 200 W | Cable - 483mm | N Type Female | - | - | - | Bracket Mount | 45.984" (116.80cm) | GSM |
|
BMOY8903RF ANT 925MHZ YAGI N TYPE F POLE |
9 |
|
Datasheet |
BMOY | Box | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Yagi, 3-Element | 1 | 1.5 | - | 6.4dBd | 150 W | - | N Type Female | - | - | - | Pole Mount | 14.000" (355.60mm) | ISM, LoRa, LPWAN |
