RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-916-ID-1000-RPSRF ANT 916MHZ WHIP STR BRK MT 1M |
11 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 895MHz ~ 945MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 1m | RP-SMA Male | IP67 | - | - | Bracket Mount | 4.906" (124.60mm) | ISM, LoRa, Sensor Networks, SigFox |
|
DELTA12B/X/SMAM/S/S/17 HIGH GAINRF ANT 173MHZ WHIP STR SMA MALE |
13 |
|
Datasheet |
DELTA 12B | Bulk | Active | General ISM | VHF (f < 300MHz) | 151MHz, 173MHz | - | Whip, Straight | 1 | 2 | - | 3dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 5.118" (130.00mm) | ISM |
|
T145TR-2.4/4.9/5.X-SRF ANT 2.4GHZ/4.9GHZ WHIP TILT |
77 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 4.9GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.35GHz, 5.725GHz ~ 5.85GHz | Whip, Tilt | 3 | 2 | - | 2dBi | - | - | RP-TNC Male | - | - | - | Connector Mount | 6.185" (157.10mm) | - |
|
W350DT-110-AM-AGDPURF ANT 892MHZ/1.9GHZ PUCK SMA ML |
50 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Puck | 2 | 2 | - | 1dBi | - | - | SMA Male | - | - | - | Adhesive | 0.339" (8.60mm) | - |
|
S463AH-868RF ANT 868MHZ WHIP STR RP-SMA ML |
36 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 867MHz ~ 869MHz | Whip, Straight | 1 | 2 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 6.929" (176.00mm) | - |
|
MGA1.101111MGA1.101111 3DBI MINI MAGNETIC M |
51 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 707.5MHz, 737.5MHz, 1.7325GHz, 1.88GHz, 1.96GHz, 2.1325GHz | 699MHz ~ 716MHz, 729MHz ~ 746MHz, 1.71GHz ~ 1.755GHz, 1.85GHz ~ 1.91GHz, 1.93GHz ~ 1.99GHz, 2.11GHz ~ 2.155GHz | Whip, Straight | 6 | - | 5dB | -0.83dBi, -0.93dBi, 0.13dBi, 1.33dBi, 1.56dBi, 1.57dBi | - | Cable - 1m | SMA Male | - | - | - | Magnetic | 3.260" (82.80mm) | 2G, 3G, 4G |
|
APAMPGJ-141RF ANT 1.575/1.602GHZ CER PATCH |
100 |
|
Datasheet |
APAMPG | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.61GHz | Ceramic Patch | 2 | 1.5 | - | 3dBic | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.984" (25.00mm) | GLONASS, GPS |
|
ISMP.868.35.6.A.02ISM 868MHZ PATCH ANTENNA (35*35* |
67 |
|
Datasheet |
- | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Ceramic Patch | 1 | - | -10dB | 2.17dBi | - | - | Pin | - | - | - | Adhesive | 0.236" (6.00mm) | ISM, LoRa, Sigfox |
|
AGGBP.SL.25A.07.0060ARF ANT 1.575GHZ CER PATCH PIN |
100 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | - | 2.44dBi, 1.72dBi, 1.67dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.339" (8.60mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
S467AH-915RF ANT 915MHZ WHIP STR RP-SMA ML |
77 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.480" (190.00mm) | - |
|
710379RF ANT 729MHZ MOD SMA M ADH |
34 |
|
Datasheet |
LP70X | Box | Active | Cellular | Wide Band | 729MHz, 875MHz, 2.2GHz | 698MHz ~ 760MHz, 790MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Module | 3 | 2, 2.2, 2.5 | - | 1.5dBi, 2.5dBi, 2.2dBi, 5dBi, 4.8dBi, 6dBi | 20 W | Cable - 1.5m | SMA Male | IP65 | - | - | Adhesive, Screw | 1.654" (42.00mm) | 2G, 3G, 4G, LTE |
|
AGGBP.SL.18A.07.0060AACTIVE GPS L1/L2 LOW PROFILE STA |
63 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | - | 1dBi, 1.38dBi, 1.15dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.337" (8.57mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

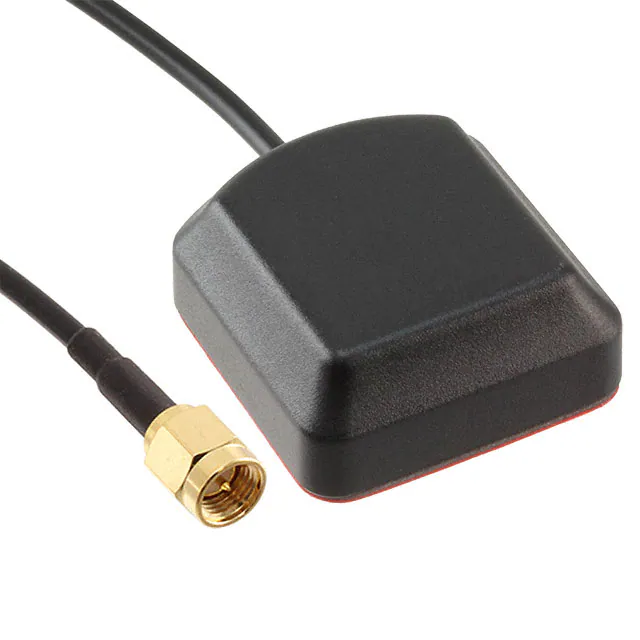

ALPHA4A/1M/SMAM/S/S/26RF ANT 1.575GHZ MOD SMA MALE ADH |
10 |
|
Datasheet |
ALPHA 4A | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 1.5 | - | 26dB | - | - | SMA Male | - | - | - | Adhesive | 0.512" (13.00mm) | GPS |
|
EXC450BNRF ANT 460MHZ WHIP STR BNC MALE |
15 |
|
Datasheet |
EXC | Bulk | Active | Bluetooth, WiFi | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | - | 50 W | - | BNC Male | - | - | - | Connector Mount | 6.900" (175.26mm) | Bluetooth, Wi-Fi |
|
T6178AM-LTE-SLTE BLADE TYPE ANTENNA WITH SMA |
65 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 830MHz, 2.205GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Blade, Tilt | 2 | 3, 2.2 | - | 1.5dBi, 3dBi | - | - | SMA | - | - | - | Connector Mount | 8.228" (209.00mm) | GPRS, GSM, LTE, Wi-Fi |
|
MIKE1C/2M/SMAM/S/S/192G/3G/4G PLUS WIFI STUBBY MAGMOU |
10 |
|
Datasheet |
MIKE 1C | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 830MHz, 2.2GHz | 700MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Whip, Straight | 2 | 2.5 | - | 3dBi | - | Cable - 2m | SMA Male | - | - | - | Magnetic | 1.181" (30.00mm) | Bluetooth, GSM, ISM, LTE, UMTS, Wi-Fi, WLAN, Zigbee™ |
|
BWA-2O1-001ANTENNA 2.4GHZ 1DB, 1 IN SHORT, |
10 |
|
Datasheet |
BWA | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | - | - | -3.5dBi, 0.22dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.118" (28.40mm) | General Purpose |
|
WV-COVDB2458RF ANT 2.4GHZ FLAT BAR RP-SMA |
24 |
|
Datasheet |
- | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.445GHz | 2.3GHz ~ 2.5GHz, 4.9GHz ~ 5.99GHz | Flat Bar | 2 | 2 | - | 6dBi, 3.5dBi | 10 W | Cable - 914.4mm | RP-SMA Male | IP67 | - | - | Glass | 0.173" (4.40mm) | Bluetooth, Wi-Fi |
|
RD2458-5-SMARF ANT 2.4GHZ/5.3GHZ WHIP TILT |
86 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.3GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.35GHz, 5.725GHz ~ 5.85GHz | Whip, Tilt | 3 | 1.5 | - | 3dBi, 5dBi, 5dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 6.102" (155.00mm) | Wi-Fi, WiMax™ |
|
2143941000DUAL BAND WI-FI MIMO EXT ANTENNA |
7 |
|
Datasheet |
214394 | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5GHz ~ 6GHz | Module | 2 | - | -10dB | 2.5dBi, 3.1dBi, 2.6dBi, 3.4dBi | - | Cable - 1m | SMA Male | - | - | - | Adhesive | 0.591" (15.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
