RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YBS00A1AACERAMIC ANTENNA,GNSS,L1/L5 |
38 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.585GHz | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.606GHz | Ceramic Patch | 2 | 2 | - | 3.55dBi, 3.55dBi | - | LNA, Filter | I-PEX-1 | - | - | - | Chassis Mount | 0.543" (13.80mm) | BeiDou, Galileo, GLONASS, GNSS,GPS, LTE |
|
NMOQBBASE / WHIP, UNITY, 136 - 512 MH |
22 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 324MHz | 136MHz ~ 512MHz | Whip, Straight | 1 | 1 | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 23.000" (584.20mm) | - |
|
PCTMI2458-RPCRF ANT 2.45GHZ WHIP STR RP-TNC |
22 |
|
Datasheet |
PCTMI | Box | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.535GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.92GHz | Whip, Straight | 2 | 2 | - | 3dBi, 5dBi | 5 W | - | RP-TNC | IPX7 | - | - | Panel Mount | 3.260" (82.80mm) | Bluetooth, Wi-Fi |
|
WRL-18153MULTI-BAND 4G/3G/2G MONOPOLE ANT |
31 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation | Wide Band | 764MHz, 892MHz, 1.795GHz, 1.92GHz, 1.94GHz, 2.35GHz, 2.59GHz, 3.55GHz | 704MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Whip, Tilt/Swivel | 8 | - | - | 1.4dBi, 2.9dBi, 3.5dBi, 3.7dBi, 2.9dBi, 3.4dBi, 2.6dBi, 5.9dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 2.835" (72.00mm) | 2G, 3G, 4G, 5G, Cellular, GSM, LTE, NB-IOT |
|
MHB5800RF ANT 159MHZ WHIP STR BASE MNT |
20 |
|
Datasheet |
MHB | Bag | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 200 W | - | - | - | - | - | Base Mount | - | - |
|
710211RF ANT 875MHZ MOD SMA M SCREW |
8 |
|
Datasheet |
SmartDisc | Box | Active | Cellular | Wide Band | 875MHz, 2.2GHz | 790MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Module | 2 | 3 | - | 2.15dBi, 3.15dBi | 10 W | Cable - 2.5m | SMA Male | IP67 | - | - | Screw Mount | 1.024" (26.00mm) | 2G, 3G, 4G, NB-IoT |
|
SPWH15FTWHIP - STANDARD - 1/4 WAVE, FIEL |
70 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 456MHz | 400MHz ~ 512MHz | Whip, Straight | 1 | - | - | - | - | - | BNC | - | - | - | Connector Mount | 6.000" (152.40mm) | - |
|
MWB1320RF ANT 322MHZ WHIP STR NMO MNT |
16 |
|
Datasheet |
MWB | Bag | Active | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 322MHz | 132MHz ~ 512MHz | Whip, Straight | 1 | 2 | - | 1dBi | 150 W | - | - | - | - | - | NMO Mount | 22.000" (558.80mm) | TETRA/P25 |
|
BMLPV700RF ANT 2.2GHZ DOME PANEL MNT |
27 |
|
Datasheet |
MLPV | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.2GHz | 1.7GHz ~ 2.7GHz | Dome | 1 | 2 | - | 4dBi | 100 W | - | - | IP67 | - | - | Panel Mount | 1.791" (45.50mm) | - |
MAXMFT(S).jpg)
|
BMAXC233805RF ANT 3.05GHZ WHIP STR NMO MNT |
27 |
|
Datasheet |
MAX BASE | Bulk | Active | General ISM, WiFi | UHF (3GHz ~ 4GHz) | 3.05GHz | 2.3GHz ~ 3.8GHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 100 W | - | - | - | - | - | NMO Mount | 4.750" (120.65mm) | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LTE, Wi-Fi |
|

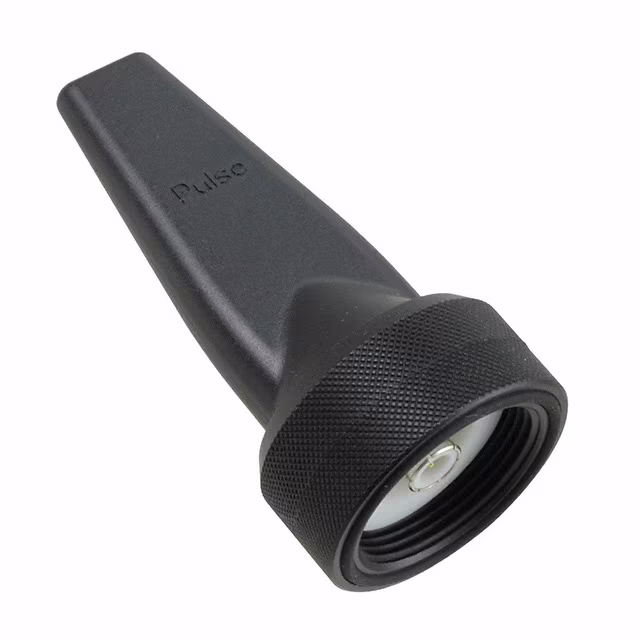

SLPT698/2170NMOHFRF ANT 829MHZ/1.9GHZ WHIP STR |
40 |
|
Datasheet |
Shadow | Bulk | Active | Cellular, WiFi | Wide Band | 829MHz, 1.9GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | Dome | 3 | 3, 2 | - | 4.5dBi, 5.6dBi, 4dBi | 10 W | - | NMO | IP67 | - | - | Base Mount | 3.000" (76.20mm) | LTE, WLAN |
|

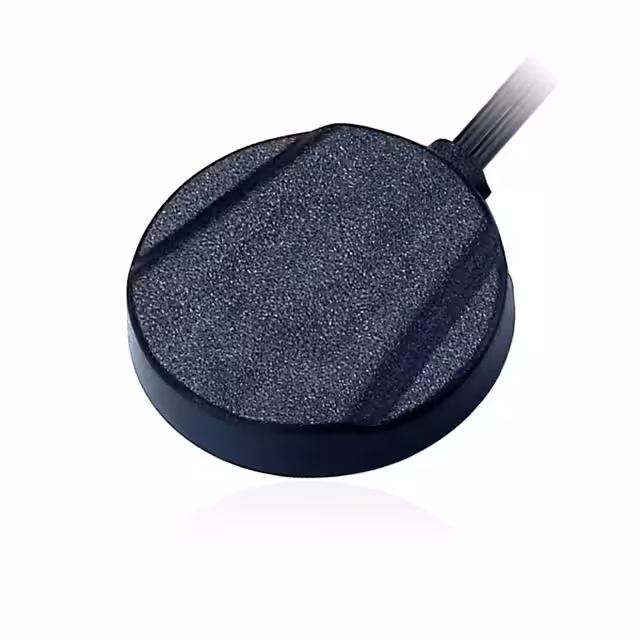

MA204.A.LB.002RF ANT 1.5GHZ MODULE SMA ML ADH |
64 |
|
Datasheet |
Stingray | Bag | Active | Cellular, Navigation | Wide Band | 1.5GHz | 800MHz ~ 2.2GHz | Module | 1 | 3, 2.5 | - | 28dB | - | LNA, Filter | SMA Male | IP65 | - | - | Adhesive | 0.425" (10.80mm) | CDMA, GPS, GSM, UMTS |
|
G420BNRF ANT 435MHZ WHIP STR BNC MALE |
17 |
|
Datasheet |
G | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 435MHz | 420MHz ~ 450MHz | Whip, Straight | 1 | 1.5 | - | 2.5dB | 50 W | - | BNC Male | - | - | - | Connector Mount | 10.000" (254.00mm) | - |
|
BMLPV4900RF ANT 5.4GHZ DOME CONN MNT |
40 |
|
Datasheet |
MLPV | Bag | Active | Bluetooth, General ISM, WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.9GHz | Dome | 1 | 1.5 | - | 4dBi | 150 W | - | - | IP67 | - | - | Connector Mount, NMO, Stud, Through Hole | 1.790" (45.47mm) | Bluetooth, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi |
|
|
BMLPV380RF ANT 395MHZ DOME PANEL MNT |
24 |
|
Datasheet |
BMLPV | Bag | Active | - | UHF (300MHz ~ 1GHz) | 395MHz | 380MHz ~ 410MHz | Dome | 1 | 2 | - | 1dBi | 100 W | - | - | IP67 | - | - | Panel Mount | 3.380" (85.85mm) | - |
|
|
BMLPV450RF ANT 481MHZ DOME PANEL MNT |
8 |
|
Datasheet |
BMLPV | Bag | Active | - | UHF (300MHz ~ 1GHz) | 481MHz | 450MHz ~ 512MHz | Dome | 1 | 2 | - | 1dBi | 100 W | - | - | IP67 | - | - | Panel Mount | 3.380" (85.85mm) | - |
|
HP5010ARF ANT 1.17645GZ CER PATCH PIN |
72 |
|
Datasheet |
- | Tray | Not For New Designs | Cellular | Wide Band | 1.17645GHz, 1.2276GHz, 1.561GHz, 1.57542GHz, 1.602GHz | 1.176GHz ~ 1.2276GHz, 1.561GHz ~ 1.61GHz | Ceramic Patch | 6 | 2, 2, 2, 2, 2 | - | 3dBi, 3.7dBi, 3.6dBi, 3.7dBi, 4dBi | - | - | Pin | - | - | - | Adhesive | 0.413" (10.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
ANT-WS-AB-RM-05-200RF ANT 2.4GHZ WHIP STR RP-SMA ML |
47 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | 2 | - | 5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | - | Wi-Fi |
|
LPT698/2700DMNRF ANT 829MHZ/1.94GHZ DOME N |
66 |
|
Datasheet |
- | Bag | Active | - | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Dome | 3 | 2.5, 2 | - | 3.1dBi, 4.4dBi, 5dBi | 10 W | - | N Type | IP67 | - | - | Connector Mount | - | General Purpose |
|
|
TFX257.AFLEXIBLE TRANSPARENT WI-FI ANT |
32 |
|
Datasheet |
- | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | - | 4.59dBi, 3.58dBi, 2.04dBi | 2 W | Transparent | Fakra | - | - | - | Surface Mount | 0.020" (0.50mm) | Wi-Fi |
