RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

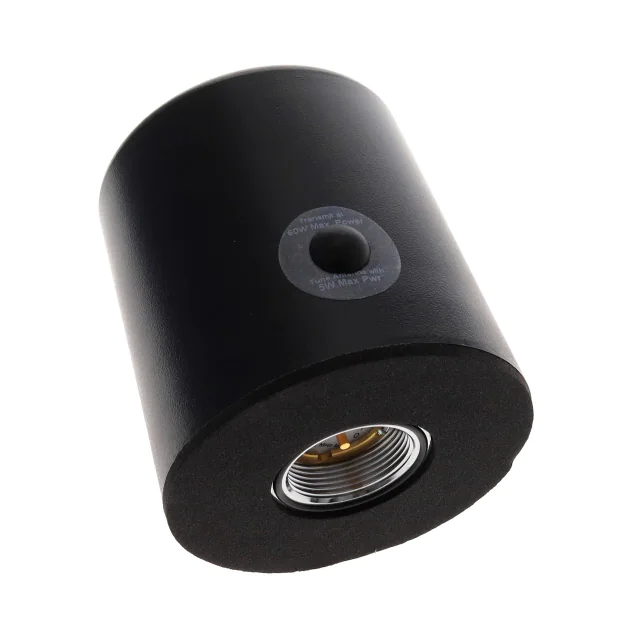

TRABT1560RF ANT 164MHZ DOME NMO BASE 2.3" |
12 |
|
Datasheet |
Phantom® | Bulk | Active | - | VHF (f < 300MHz) | 164MHz | 156MHz ~ 172MHz | Dome | 1 | - | - | 0dBi | 60 W | - | NMO | - | - | - | Base Mount | 3.500" (88.90mm) | - |
|
FG4700RF ANT 480MHZ WHIP STR N FEM |
4 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 480MHz | 470MHz ~ 490MHz | Whip, Straight | 1 | 2 | - | 0dBd | 200 W | - | N Type Female | - | - | - | Bracket Mount | 20.000" (508.00mm) | - |
|
GPSPSMMSMA/CRF ANT GPS PLUS BLK MSMA |
10 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CMS38606P-30NFRF ANT 450MHZ/700MHZ DOME PNL MT |
3 |
|
Datasheet |
CBRS | Bulk | Active | Cellular | Wide Band | 450MHz, 700MHz, 850MHz, 1.4GHz, 2.4GHz, 5GHz | 380MHz ~ 960MHz, 1.395GHz ~ 6GHz | Dome | 7 | 2.8, 1.7, 1.9, 1.4, 1.6, 1.9, 1.6 | - | 3.1dBi, 2.7dBi, 2.9dBi, 5.4dBi, 6.1dBi, 7dBi, 6.1dBi | 50 W | Cable - 305mm | N Type Female | IP67 | - | - | Panel Mount | 11.732" (298.00mm) | LTE |
|
AP-M2M2-CC-M-S22-BL-10ANTENNA PLUS M2MAX V2 MIMO ANTEN |
15 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Module | 2 | - | - | 3dBi, 6dBi | - | Cable - 3.05m | SMA Male | IP67 | - | - | Magnetic | 2.185" (55.50mm) | LTE |
|
BB1360WSRF ANT 155MHZ WHIP STR NMO MAG |
10 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 4dBi | 100 W | - | NMO | - | - | - | Magnetic, Trunk | 19.500" (495.30mm) | - |
|
B1322WSRF ANT 132MHZ WHIP STR NMO BASE |
6 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 132MHz | 132MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 2.4dB | 100 W | - | NMO | - | - | - | Base Mount | 40.157" (102.00cm) | - |
|
GPSPSMMSMA/-NCGPS+, STUD |
12 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
S8960BANT OMNI 2DBI STICK N FEMALE |
14 |
|
Datasheet |
S8xxxB | Bulk | Active | WiFi | UHF (300MHz ~ 1GHz) | 928MHz | 896MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | - | - | - | N Type Female | - | - | - | Bracket Mount | 17.500" (444.50mm) | WiMax™ |
|
BSA150CRADIAL BASE / WHIP, 3 DB, 144 - |
23 |
|
Datasheet |
- | Box | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | - | - | 2.5dBi | 200 W | - | - | - | - | - | Magnetic | 51.732" (131.40cm) | - |
|
VPJ69595B-92VC1ANTENNA AUTO 5 PORT |
9 |
|
Datasheet |
VPJ | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.165GHz, 2.45GHz, 2.66GHz, 5.4GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.62GHz, 2.4GHz ~ 2.5GHz, 2.62GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | Module | 8 | 3.1 | - | 5dBi | 5 W | Cable - 914mm, LNA | SMA Male (3), RP-SMA Male (2) | IP67 | - | - | Adhesive | 0.575" (14.60mm) | 2G, 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE, Wi-Fi |
|
PSQ24495-91RSMRF ANT 2.4GHZ/5.4GHZ FLAT PNL |
14 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Panel | 2 | 2 | - | 7.7dB | 10 W | - | RP-SMA | IP67 | - | - | Bracket Mount | 1.575" (40.00mm) | Wi-Fi |
|
33-HC610E-28EMBEDDED IRIDIUM, ACTIVE |
4 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.62125GHz | 1.616GHz ~ 1.6265GHz | Helical | 1 | 1.8 | - | 3.7dBic | - | LNA, Filter | MCX Female | IP67 | - | - | Panel Mount | 1.524" (38.70mm) | Iridium® |
|
BMOY4705RF ANT 491MHZ YAGI N TYPE F POLE |
18 |
|
Datasheet |
BMOY | Box | Active | - | UHF (300MHz ~ 1GHz) | 491MHz | 470MHz ~ 512MHz | Yagi, 5-Element | 1 | 1.5 | - | 9dBd | 150 W | - | N Type Female | - | - | - | Pole Mount | 34.000" (863.60mm) | ISM, LoRa, LPWAN |
|
MFB9155RF ANT 915MHZ WHIP STR N TYPE M |
15 |
|
Datasheet |
MFB | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | - | - | 5dB | 150 W | Cable - 609.6mm | N Type Male | - | - | - | Bracket Mount | 50.748" (128.90cm) | - |
|

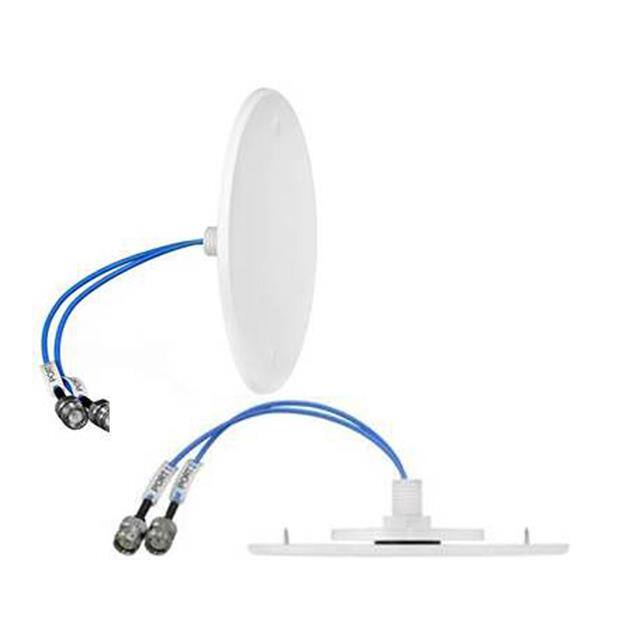

CFD69383P-30D43FRF ANT FLAT PANEL FML PANEL MT |
11 |
|
Datasheet |
CBRS | Bulk | Active | Cellular, WiFi | Wide Band | - | - | Flat Panel | 3 | 2 | - | 6dBi | 50 W | Cable - 300mm | 4.3/10 - Female | - | - | - | Panel Mount | 0.299" (7.60mm) | LTE, WiMax™ |
|
VFD69383W2NNN-518RANT LOW PROFILE 2-PORT SHARKFIN |
4 |
|
Datasheet |
- | Bulk | Active | Cellular, General ISM | Wide Band | 752MHz, 859MHz, 920MHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz | Dome | 9 | 2 | - | 0.2dBi, 1dBi, 1.5dBi, 3.6dBi, 3.5dBi, 2.9dBi, 3.2dBi, 4dBi, 5.1dBi | 10 W | Cable - 5.18m | SMA Male | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | 3G, 4G, 5G, ISM, LTE |
|
|
MYA1505KNRF ANT 162MHZ YAGI S0239 BRKT |
24 |
|
Datasheet |
MYA | Tube | Active | - | VHF (f < 300MHz) | 162MHz | 150MHz ~ 174MHz | Yagi, 5-Element | 1 | 1.5 | - | 9.2dBi | 250 W | - | SO239 | - | - | - | Bracket Mount | 72.000" (182.88cm) | - |
|
|
MYA1506KRF ANT 162MHZ YAGI S0239 BRKT |
7 |
|
Datasheet |
MYA | Tube | Active | - | VHF (f < 300MHz) | 162MHz | 150MHz ~ 174MHz | Yagi, 6-Element | 1 | 1.5 | - | 10.2dBi | 250 W | - | SO239 | - | - | - | Bracket Mount | 103.937" (264.00cm) | - |
|
MIKROE-4480GNSS ACTIVE EXTERNAL ANTENNA |
5 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.223GHz, 1.5825GHz | 1.197GHz ~ 1.249GHz, 1.559GHz ~ 1.606GHz | Module | 2 | 2 | - | 2dBic, 3.5dBic | - | Cable - 5m, LNA, Filter | SMA Male | - | - | - | Magnetic | 0.886" (22.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
