Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XALD321H29H7PUSHBUTTON STATION |
1 |
|
Datasheet |
Harmony XALD | Box | Active | Panel Mount, Front | Standard | - | - | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green, Red | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
ZB5RTC2ZB5R WIRELES MUSHROOM 40MM BLACK |
1 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button, Mushroom | - | Black | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 40.00mm Dia | -40°C ~ 70°C |
|

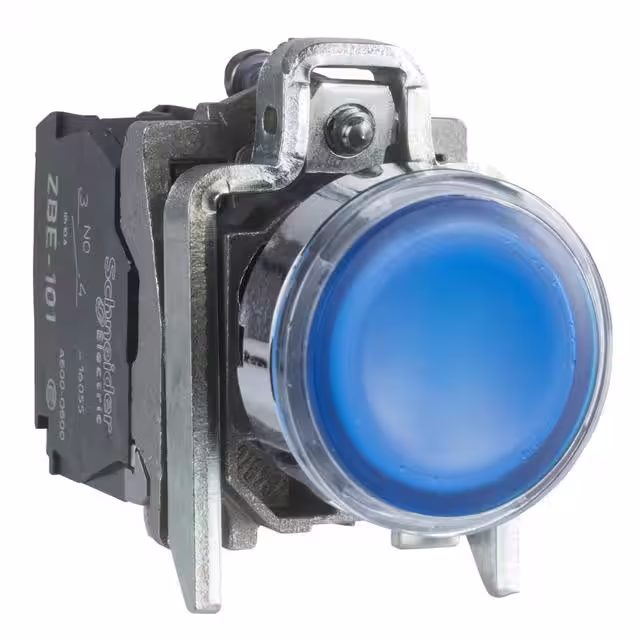

XB4BW36B5HARMONY XB4, ILLUMINATED PUSH BU |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Blue | LED, Blue | 24 VDC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB5AW31B5HARMONY XB5, ILLUMINATED PUSH BU |
1 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | LED, White | 24 VDC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB5AW33G5HARMONY XB5, ILLUMINATED PUSH BU |
1 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 110 ~ 220 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
XB5AW33B5HARMONY XB5, ILLUMINATED PUSH BU |
1 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 24 VDC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB4BW33G5HARMONY, 22MM ILLUMINATED PUSH B |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 110 ~ 220 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
XB4BW36G5HARMONY XB4, ILLUMINATED PUSH BU |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Blue | LED, Blue | 110 ~ 220 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

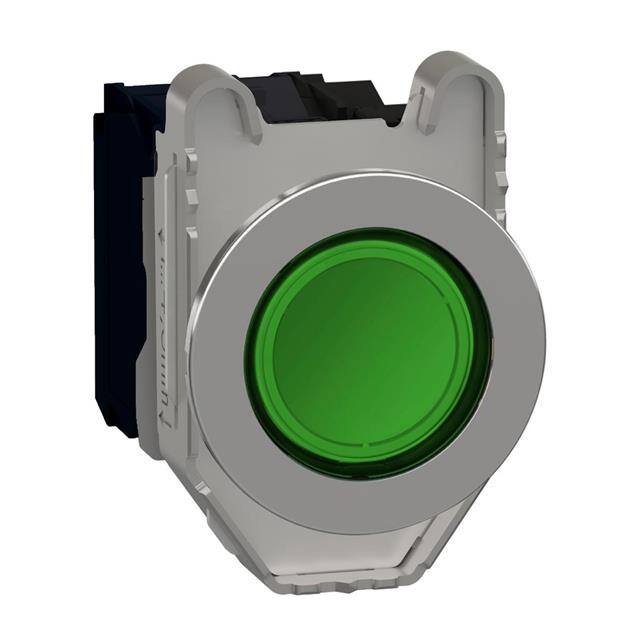

XB4FW33B5HARMONY XB4, ILLUMINATED PUSH BU |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 24 VDC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
XB4BW35B5HARMONY XB4, ILLUMINATED PUSH BU |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Orange | LED, Orange | 24 VDC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB4BW73731G5HARMONY XB4, ILLUMINATED DOUBLE- |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Green, Red | LED, White | 110 ~ 220 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|

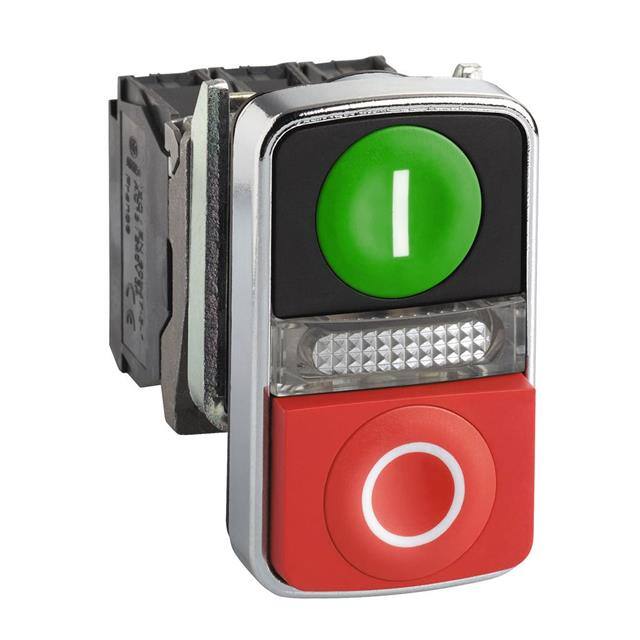

XB4BW73731B5HARMONY XB4, ILLUMINATED DOUBLE- |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Green, Red | LED, White | 24 VDC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

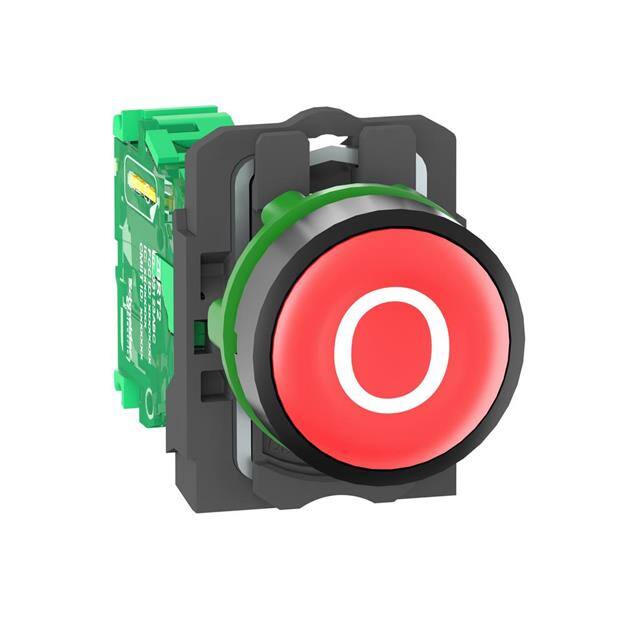

ZB5RTA432HARMONY XB5, WIRELESS AND BATTER |
1 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button, Flush | - | Red | - | - | Wireless | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

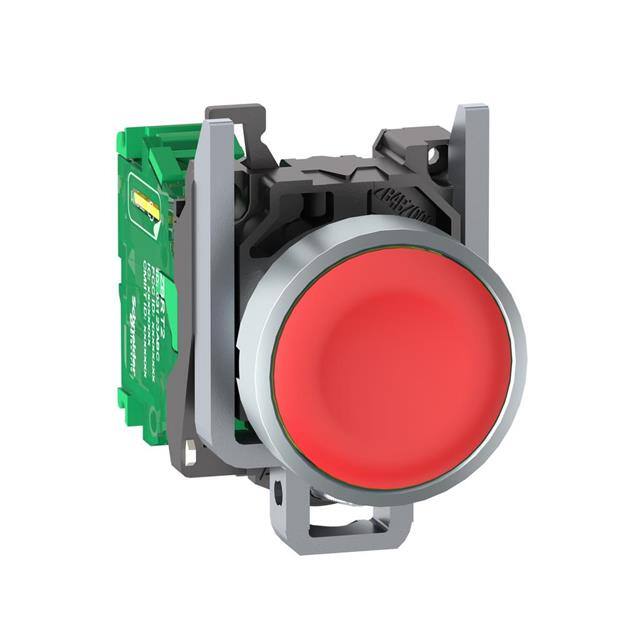

ZB4RTA4HARMONY XB4, WIRELESS AND BATTER |
1 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button, Flush | - | Red | - | - | Wireless | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
9001K2L1GH13PUSH BUTTON 600VAC 10A 30MM T-K |
0 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom, Off-Mom | 10A (AC/DC) | - | - | Round, Button | - | Green | Incandescent, Green | 110 ~ 120 VAC | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
|
FAK-S-KC11-IBLK MOM PALM SWITCH GRY ENCL TOP |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FAK-R-KC11-IRD MOM PALM SWITCH GRY ENCL TOP- |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XB4BP483BM5GEXHAZ LOC - ILL PB RED W/BOOT 24 2 |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 24 ~ 254 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 75°C |
|
9001SKR9RH1330MM PUSH BUTTON, TYPE SK, PUSH |
1 |
|
Datasheet |
Harmony 9001SK | Box | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button | - | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
6045316RESET PUSHBUTTON |
1 |
|
Datasheet |
ER12 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 2A (DC) | - | 24 V | Round, Button | - | Blue | LED, Blue | 30 VAC/DC | Connector | IP65 - Dust Tight, Water Resistant | - | - | -25°C ~ 70°C |
