Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
51-256.0256ACTUATOR, 24,5 MM, MUSHROOM-HEA |
5 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 5A (AC), 2A (DC) | 250 V | 24 V | Round, Button, Mushroom | - | Blue | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
51-256.0255ACTUATOR, 24,5 MM, MUSHROOM-HEA |
5 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 5A (AC), 2A (DC) | 250 V | 24 V | Round, Button, Mushroom | - | Green | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
51-256.0268ACTUATOR, 24,5 MM, MUSHROOM-HEA |
4 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard | SPST-NC | On-Off | 100mA (AC) | 42 V | 42 V | Round, Button, Mushroom | - | Gray | - | - | PC Pin, Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
51-256.0250ACTUATOR, 24,5 MM, MUSHROOM-HEA |
0 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 5A (AC), 2A (DC) | 250 V | 24 V | Round, Button, Mushroom | - | Black | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
51-486.036FACTUATOR, ILLUMINATIVE, 1 NC, MA |
4 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Off | 100mA (AC) | 42 V | 42 V | Square, Button (Not Included) | - | - | - | - | PC Pin, Solder Lug | IP65 - Dust Tight, Water Resistant | - | Square - 21.20mm x 21.20mm | -25°C ~ 55°C |
|
|
31-471.036SWITCH PB DPST-NO 0.1A 42V |
5 |
|
Datasheet |
31 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO | Off-On | 100mA (AC/DC) | 42 V | 42 V | Round, Button (Not Included) | No Marking | - | - | - | PC Pin, Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
82-4751.1000PUSHBUTTON, MOMENTARY, 16MM, ALU |
5 |
|
Datasheet |
82 | Bag | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
|
82-4851.1000PUSHBUTTON, MOMENTARY, 16MM, ALU |
5 |
|
Datasheet |
82 | Bag | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
|
82-4951.1000PUSHBUTTON, MOMENTARY, 16MM, ALU |
5 |
|
Datasheet |
82 | Bag | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
|
51-485.036FACTUATOR, ILLUMINATIVE, 1 NO, MA |
5 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 100mA (AC) | 42 V | 42 V | Square, Button (Not Included) | - | - | - | - | PC Pin, Solder Lug | IP65 - Dust Tight, Water Resistant | - | Rectangular - 27.20mm x 21.20mm | -25°C ~ 55°C |
|
|
DH401LBBRG12SWITCH PB SPST-NO/NC 2A 125VAC |
5 |
|
Datasheet |
DH40 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Green/Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 40.00mm Dia | -25°C ~ 70°C |
|
|
DH401LBSRG12SWITCH PB SPST-NO/NC 2A 125VAC |
0 |
|
Datasheet |
DH40 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Green/Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 40.00mm Dia | -25°C ~ 70°C |
|
|
82-5851.2000PUSHBUTTON, MAINTAINED, 19MM, AL |
5 |
|
Datasheet |
82 | Bag | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
|
82-5851.1000PUSHBUTTON, MOMENTARY, 19MM, ALU |
5 |
|
Datasheet |
82 | Bag | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
|
82-5751.1000PUSHBUTTON, MOMENTARY, 19MM, ALU |
5 |
|
Datasheet |
82 | Bag | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
|
82-5951.1000PUSHBUTTON, MOMENTARY, 19MM, ALU |
5 |
|
Datasheet |
82 | Bag | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
|
82-5951.2000PUSHBUTTON, MAINTAINED, 19MM, AL |
5 |
|
Datasheet |
82 | Bag | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
|
82-5751.2000PUSHBUTTON, MAINTAINED, 19MM, AL |
5 |
|
Datasheet |
82 | Bag | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
|
51-152.0262ACTUATOR, 24,5 MM, MUSHROOM-HEA |
5 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard | DPST-NC | On-Mom | 100mA (AC) | 42 V | 42 V | Round, Button, Mushroom | - | Red | - | - | PC Pin, Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|

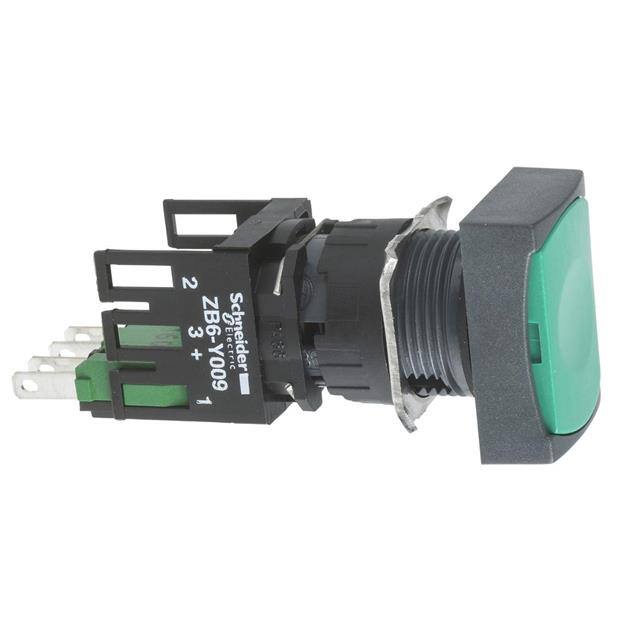

XB6DA35BCOMPLETE PUSH BUTTON, HARMONY XB |
3 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Green | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
