Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
84-6420.0020STOP SWITCH, 32 MM, MUSHROOM-HE |
3 |
|
Datasheet |
84 | Bag | Active | Panel Mount, Front | Standard | SPST-NC | On-Off | 3A (AC), 2A (DC) | 120 V | 24 V | Round, Button, Mushroom | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP20 | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
XB6AW3B1BPUSHBUTTON 240VAC 1.5AMP XB6 +OP |
4 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 12 ~ 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -40°C ~ 70°C |
|
|
903F.000-00SWITCH PB 6PST-3NO/3NC 5A 250V |
5 |
|
Datasheet |
55 - Swisstac | Bulk | Active | Panel Mount, Front | Standard | 6PST-3NO/3NC | On-Off, Off-On | 5A (AC) | 250 V | - | Square, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | - |
|
|
82-6151.1A54.B005ILLUMINATED PUSHBUTTON.MOMENTARY |
5 |
|
- |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, White | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -30°C ~ 70°C |
|
|
82-6151.1A24.B005ILLUMINATED PUSHBUTTON.MOMENTARY |
5 |
|
- |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -30°C ~ 70°C |
|

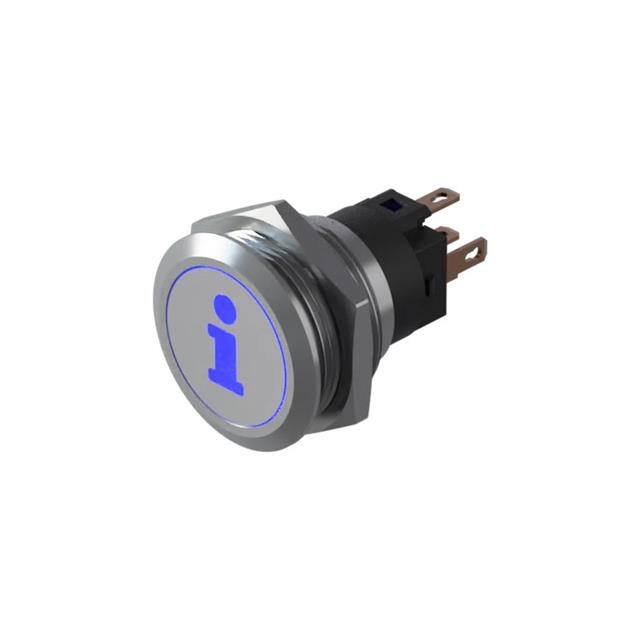

82-6151.1A24.B004SWITCH PB SPDT 5A 120V |
5 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -30°C ~ 70°C |
|
|
84-6430.0020STOP SWITCH, 32 MM, MUSHROOM-HE |
5 |
|
Datasheet |
84 | Bag | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 3A (AC), 2A (DC) | 120 V | 24 V | Round, Button, Mushroom | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP20 | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
84-6440.0020STOP SWITCH, 32 MM, MUSHROOM-HE |
4 |
|
Datasheet |
84 | Bag | Active | Panel Mount, Front | Standard | DPST-NC | On-Off | 3A (AC), 2A (DC) | 120 V | 24 V | Round, Button, Mushroom | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP20 | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
51-253.0225ACTUATOR, 24,5 MM, MUSHROOM-HEA |
1 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 5A (AC), 2A (DC) | 250 V | 24 V | Round, Button, Mushroom | - | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
51-153.0222ACTUATOR, 24,5 MM, MUSHROOM-HEA |
0 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC/DC) | 250 V | 250 V | Round, Button, Mushroom | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
51-159.0254ACTUATOR, 24,5 MM, MUSHROOM-HEA |
0 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Mushroom | - | Red | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | - |
|
|
C22S-DL-B-K10-24ILL MOM PB BLK-BZL FLSH BLU 24V |
0 |
|
- |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 2A (AC), 3A (DC) | 110 V | 24 V | Round, Button, Flush | - | Blue | LED, Blue | 24 VAC/DC | Screw Terminal | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.50mm Dia | -25°C ~ 70°C |
|
3SU11000AB401FA0PUSHBUTTON, GREEN, ROUND, PLASTI |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

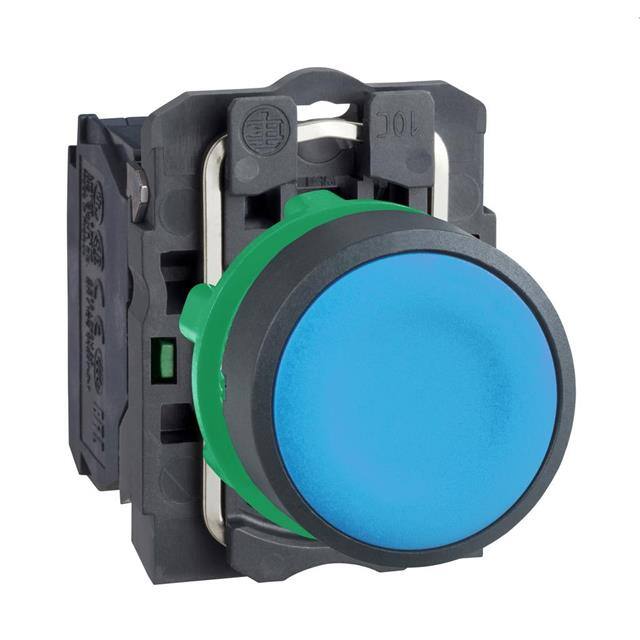

XB5AA61HARMONY XB5, PUSH BUTTON, PLASTI |
1 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Blue | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

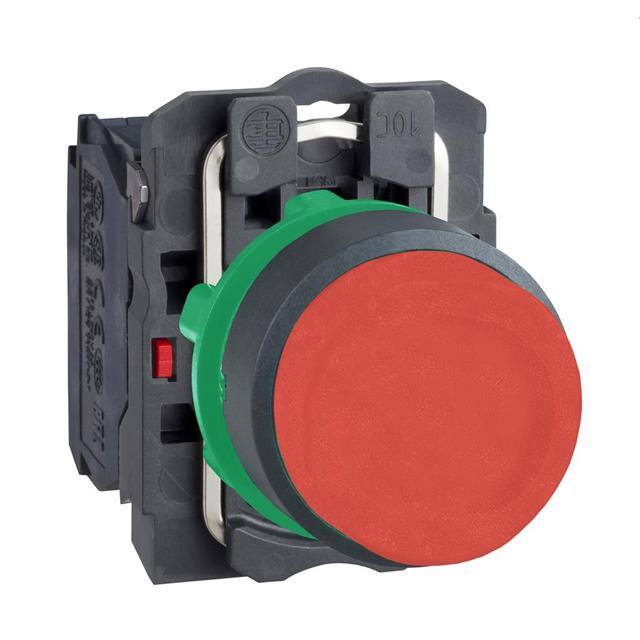

XB5AL42HARMONY XB5, PUSH BUTTON, PLASTI |
1 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | SPST-NC | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button | - | Red | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB5AA21HARMONY XB5, PUSH BUTTON, PLASTI |
1 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Black | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB5AA31HARMONY XB5, PUSH BUTTON, PLASTI |
1 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

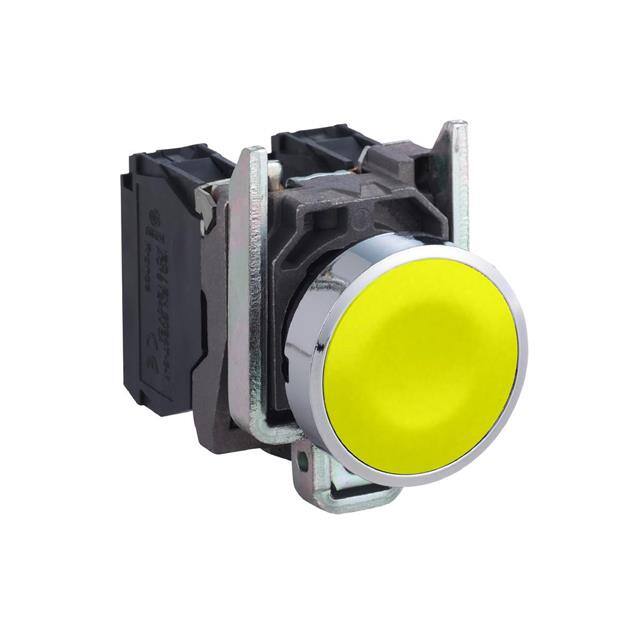

XB4BA51HARMONY XB4, PUSH BUTTON, METAL, |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Yellow | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
7784SWITCH DIMMER |
0 |
|
Datasheet |
- | Bulk | Active | Chassis Mount | Standard | SPDT | On-On | - | - | - | Round, Button | No Marking | Silver | - | - | Screw Terminal | - | - | - | - |
|
|
M22S-DL-G-K10-GILL MOM PB BLK-BZL FLSH GRN 12-3 |
0 |
|
- |
M22 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | On-Mom | 6A (AC), 3A (DC) | - | 24 V | Round, Button, Flush | - | Green | LED, Green | 12 ~ 30 VAC/DC | Screw Terminal | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.50mm Dia | - |
