Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M22-DL-G-K10-230GILL MOM PB SIL-BZL FLSH GRN 85-2 |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
M22-DRP-R-K01MTN MUSHROOM PB RED 1NC |
0 |
|
- |
M22 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 6A (AC), 3A (DC) | - | 24 V | Round, Button | - | Red | - | - | Screw Terminal | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.50mm Dia | -25°C ~ 70°C |
|
|
IGN3S0DW227NXN9SWITCH PB LIT POWER BLACK NO SOL |
0 |
|
Datasheet |
IG | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 28 V | Round, Button | - | Black | LED, White | 12 VDC | Solder Lug | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 11.90mm Dia | -40°C ~ 85°C |
|
|
M22S-DL-R-K11-RILL MOM PB BLK-BZL FLSH RED 12-3 |
0 |
|
- |
M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 3A (DC) | - | 24 V | Round, Button | - | Red | LED, Red | 12 ~ 30 VAC/DC | Screw Terminal | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.50mm Dia | -25°C ~ 70°C |
|
|
M22S-DLH-W-K20-230WILL MOM PB BLK-BZL EXTD WHT 85-2 |
0 |
|
- |
M22 | Bulk | Active | Panel Mount, Rear | Standard, Illuminated | DPST-NO | On-Mom | 6A (AC), 3A (DC) | - | 24 V | Round, Button, Flush | - | Red | LED, Red | 85 ~ 264 VAC | Screw Terminal | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.50mm Dia | - |
|
|
M22S-DLH-R-K11-230RILL MOM PB BLK-BZL EXTD RED 85-2 |
0 |
|
- |
M22 | Bulk | Active | Panel Mount, Rear | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 3A (DC) | - | 24 V | Round, Button, Flush | - | Red | LED, Red | 85 ~ 264 VAC | Screw Terminal | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.50mm Dia | - |
|
|
M22-DL-R-K11-RILL MOM PB SIL-BZL FLSH RED 12-3 |
0 |
|
- |
M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 115 V | 24 V | Round, Button, Flush | - | Red | LED, Red | 12 ~ 30 VAC/DC | Screw Terminal | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.50mm Dia | -25°C ~ 70°C |
|
|
M22-DLH-R-K11-RILL MOM PB SIL-BZL EXTD RED 12-3 |
0 |
|
- |
M22 | Bulk | Active | Panel Mount, Rear | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 3A (DC) | - | 24 V | Round, Button, Flush | - | Red | LED, Red | 12 ~ 30 VAC/DC | Screw Terminal | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.50mm Dia | - |
|

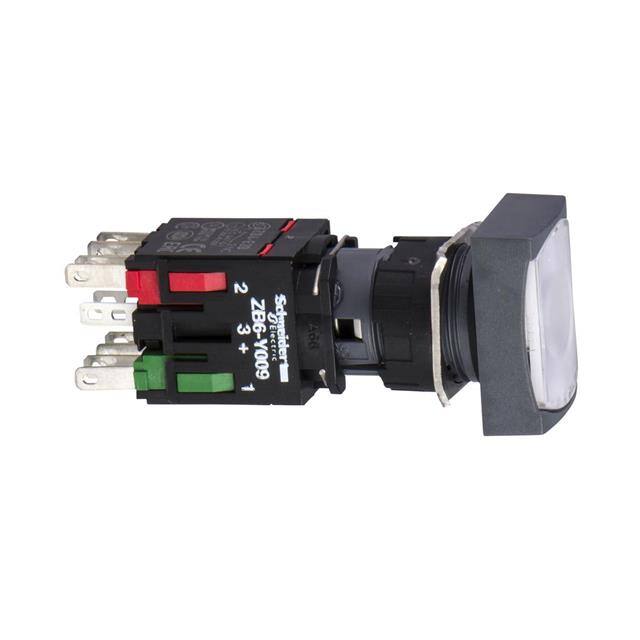

XB6DF1B5BCOMPLETE ILLUMINATED PUSH BUTTON |
1 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | White | LED, White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

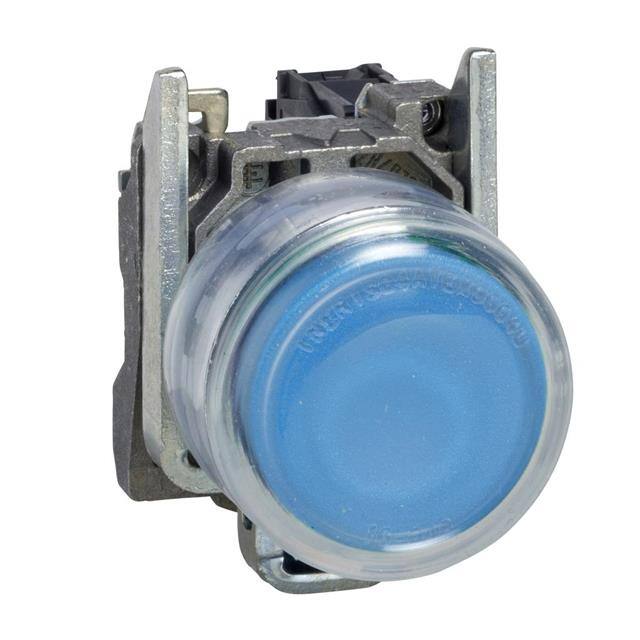

XB4BP61HARMONY XB4, PUSH BUTTON, METAL, |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button | - | Blue | - | - | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

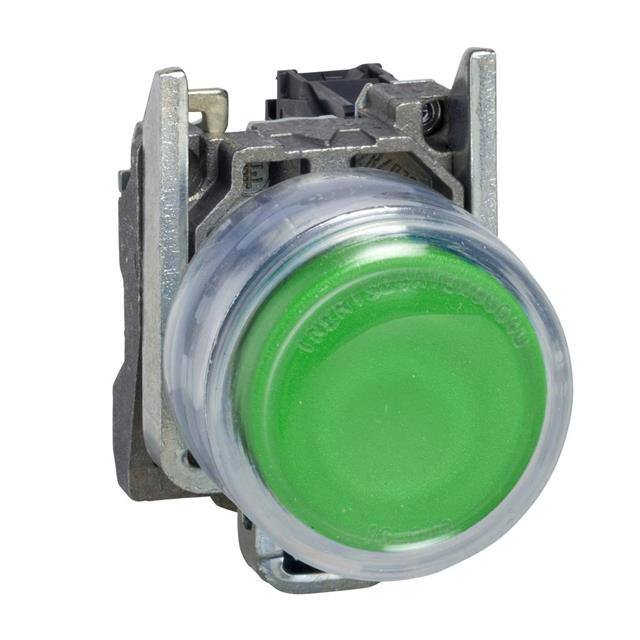

XB4BP31HARMONY XB4, PUSH BUTTON, METAL, |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button | - | Green | - | - | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
9001KR2UH5PUSH BUTTON 600VAC 10A 30MM T-K |
1 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button | - | - | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
9001KR3UH5PUSH BUTTON 600VAC 10A 30MM T-K |
1 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button | - | - | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
9001KR1RH6PUSHBUTTON 600VAC 10A 30MM TYPE |
1 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Off | 10A (AC/DC) | - | - | Round, Button, Flush | - | Red | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
|
XALD101H29PUSHBUTTON |
1 |
|
Datasheet |
Harmony XALD | Box | Active | Panel Mount, Front | Standard | - | - | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
XALD211H29H7CONTROL STATION 'MARCHE-ARRET' |
1 |
|
Datasheet |
Harmony XALD | Box | Active | Panel Mount, Front | Standard | - | - | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Gray, Red | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
9001KR1BH5PUSHBUTTON 600VAC 10A 30MM TYPE |
0 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button, Flush | - | Black | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
9001KR1UH5PUSH BUTTON 600VAC 10A 30MM T-K |
1 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button, Flush | - | - | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|

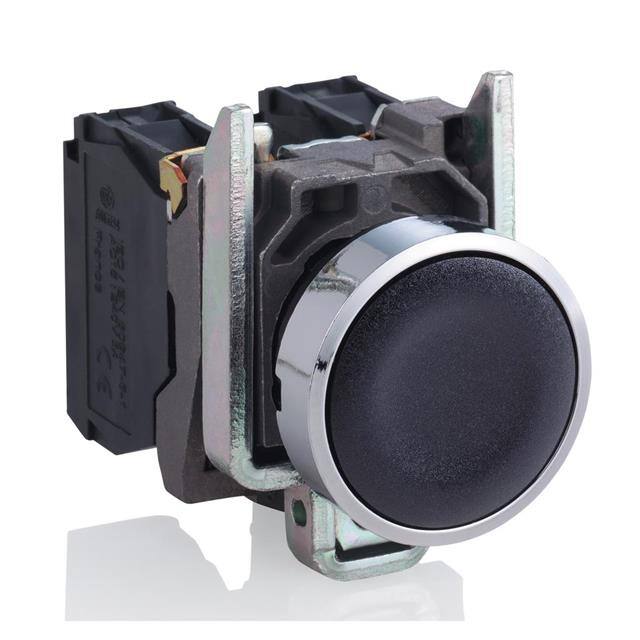

XB4BA25HARMONY XB4, PUSH BUTTON, METAL, |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Black | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

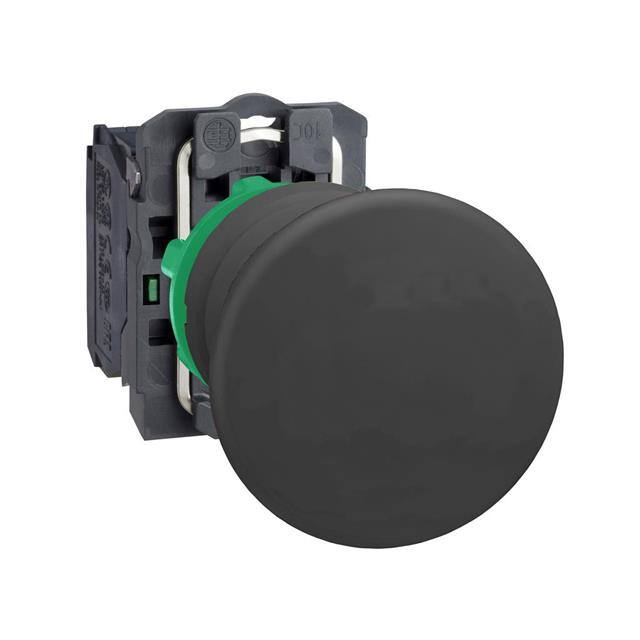

XB5AC21HARMONY XB5, PUSH BUTTON, PLASTI |
1 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button | - | Black | - | - | Screw Terminal | IP65/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
