Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

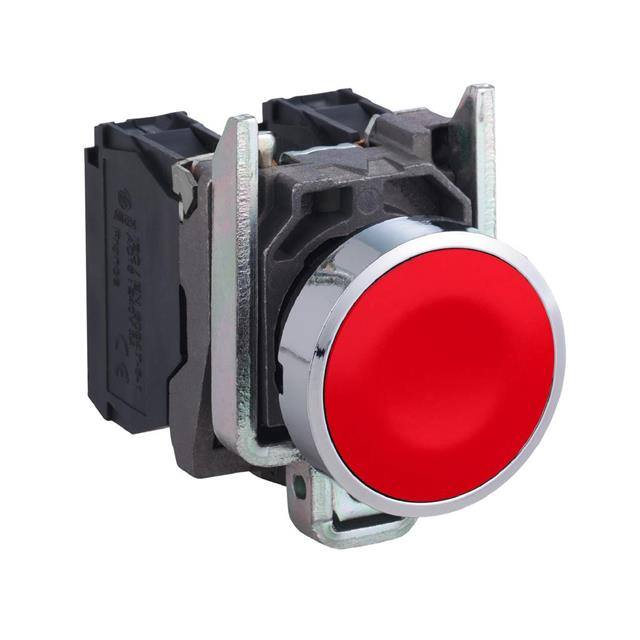

XB4BA45HARMONY XB4, PUSH BUTTON, METAL, |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB5AA45HARMONY XB5, PUSH BUTTON, PLASTI |
1 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
52PM8B1KPUSHBUTTON,MOM,BLK,EXTENDED,2POS |
1 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC) | 120 V | - | Round, Button | - | Black | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
XB7NW33B1HARMONY XB7, MONOLITHIC ILLUMINA |
1 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button | - | Green | LED, Green | 24 VDC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
AML21GBE2ADSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
|
A4E-C211VAA4E-C211VA |
1 |
|
Datasheet |
A4E | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | Off-On-Off | 1A (AC), 300mA (DC) | 125 V | 24 V | Rectangular, Button, Rubber Cap | No Marking | Black | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Rectangular - 63.30mm x 13.50mm | -10°C ~ 55°C |
|
|
M22-C2-M2VCONTROL STATN FLSH GRN 1NO EXTD |
0 |
|
- |
M22 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9001KR3RH13PUSH BUTTON 600VAC 10A 30MM T-K |
1 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPDT | On-Off, Off-On | 10A (AC/DC) | - | - | Round, Button | - | Red | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
|
9001KR1UH13PUSHBUTTON 600VAC 10A 30MM TYPE |
1 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button, Flush | - | - | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
9001KR1RH13PUSH BUTTON 600VAC 10A 30MM T-K |
1 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
1241.3011SWITCH PUSH SPST-NO 100MA 42V |
1 |
|
Datasheet |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 27.30mm Dia | -40°C ~ 85°C |
|
|
14-274.0252ACTUATOR, ILLUMINATIVE, 4 NC / 4 |
0 |
|
Datasheet |
14 | Bag | Active | Panel Mount, Front | Standard, Illuminated | 8PST-4NO/4NC | On-Off, Off-On | 3A (AC), 2A (DC) | 125 V | 24 V | Round, Button (Not Included) | - | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 30.50mm Dia | -25°C ~ 55°C |
|

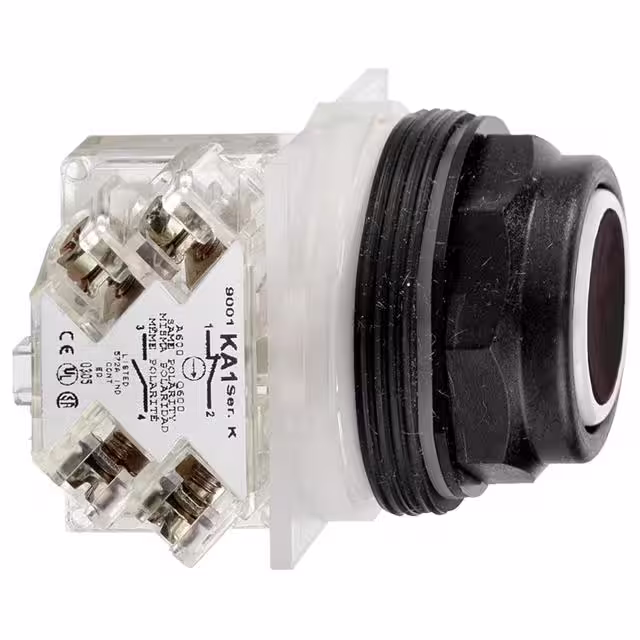

9001SKR1BH13PUSHBUTTON 600VAC 10AMP 30MM SK |
1 |
|
Datasheet |
Harmony 9001SK | Box | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button, Flush | - | Black | - | - | Screw Terminal | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
XB4BW13G5GRN EXTND HEAD PB W/120V LED & C |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | Incandescent, Green | 110 ~ 120 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
XB4BW14B522MM ILL EXT PB,24V RED,1NO/1NC |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 110 ~ 120 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
M22-C3-M5VCONTRL ST FLSH BLK FLSH RED 1NC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XB4FW33M5FLUSH CAPS ILL PB GR LED 230V 1N |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 230 ~ 240 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
|
XB4BP31GEXHAZ LOC - PB GREEN W/BOOT |
1 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button | - | Green | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 75°C |
|
|
ZB4RTA3ZB4R TRANSMITTER COMPLETE, GREEN |
1 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
ZB5RTA3HARMONY XB5, WIRELESS AND BATTER |
0 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button, Flush | - | Green | - | - | Wireless | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
