Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

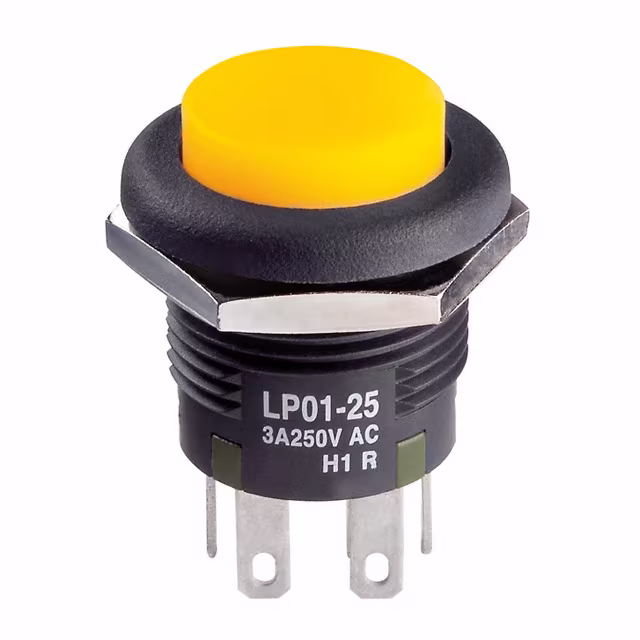

LP0125CCKW015DBSWITCH PUSHBUTTON DPDT 3A 125V |
16 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -10°C ~ 50°C |
|
AV1910R324Q04SWITCH PUSHBUTTON SPDT 3A 250V |
0 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 19.20mm Dia | -20°C ~ 55°C |
|

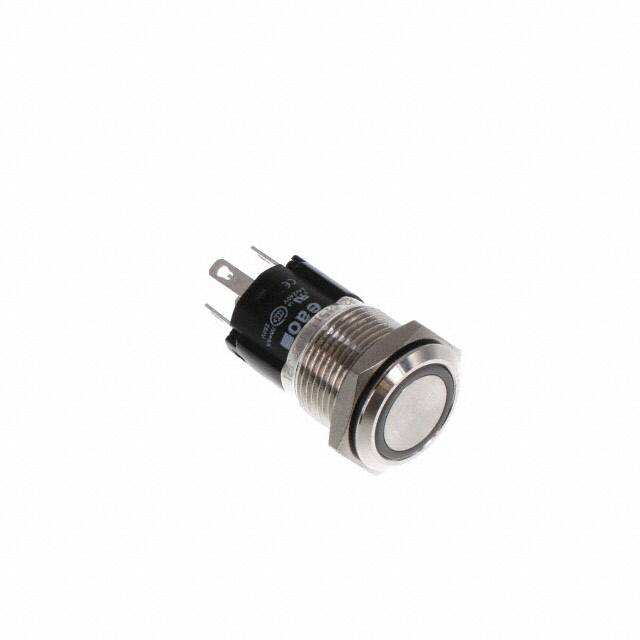

82-4151.2153SWITCH PUSHBUTTON SPDT 3A 240V |
2 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | No Marking | Silver | LED, White | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
UB26NBKG015F-JBSWITCH PUSH DPDT 0.4VA 28V |
2 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
ULV4F2HSS531SWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Green | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
.jpg)
|
AV2511M724Q04SWITCH PUSHBUTTON SPDT 3A 250V |
5 |
|
Datasheet |
AV25 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Moving LED Ring, Power Symbol | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
UB215SKG036CF-1JBSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
UB2 | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed | - | -25°C ~ 50°C |
|
XB6EAW3B1PILLUMINATED MONOLITHIC PUSH BUTT |
0 |
|
Datasheet |
Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1.5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Green | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
SW-PB7-04B4WARLOW PROFILE ANTI-VANDAL PUSHBUTT |
1 |
|
Datasheet |
SW | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-On | 2A (AC), 100mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.10mm Dia | -30°C ~ 85°C |
|

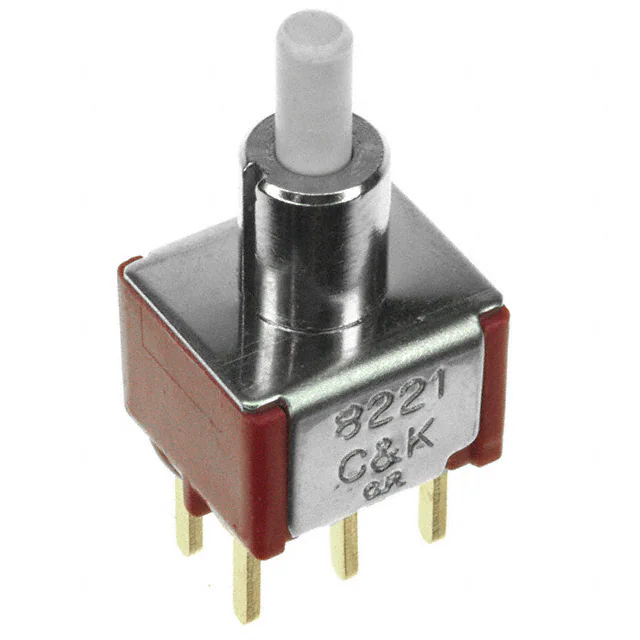

8221SD9CGESWITCH PUSHBUTTON DPDT 1A 120V |
5 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|

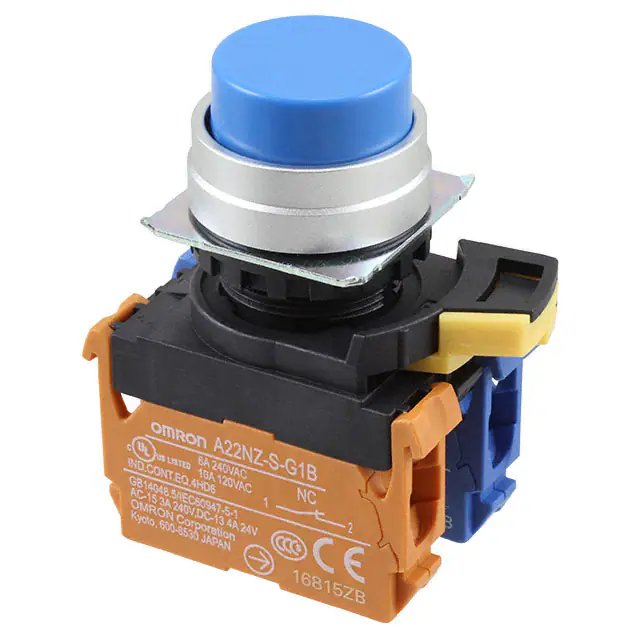

A22NN-BPA-NAA-G102-NNSWITCH PUSH DPST-NO/NC 10A 120V |
3 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Blue | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
DH251LBGG24SWITCH PB DPST-NO/NC 2A 125V |
3 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT (DB/DM) | On-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Green | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -25°C ~ 70°C |
|
|
ULV4F2GSS544SWITCH PUSHBUTTON DPDT 3A 125V |
24 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|

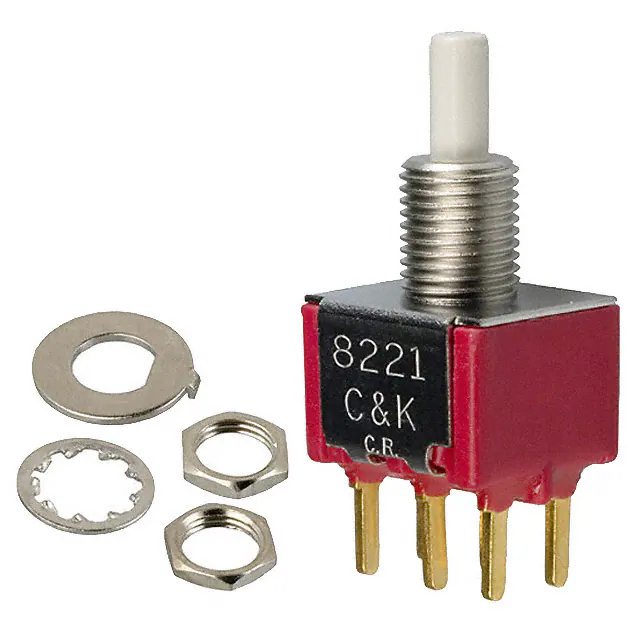

8221SDCGESWITCH PUSHBUTTON DPDT 1A 120V |
0 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|

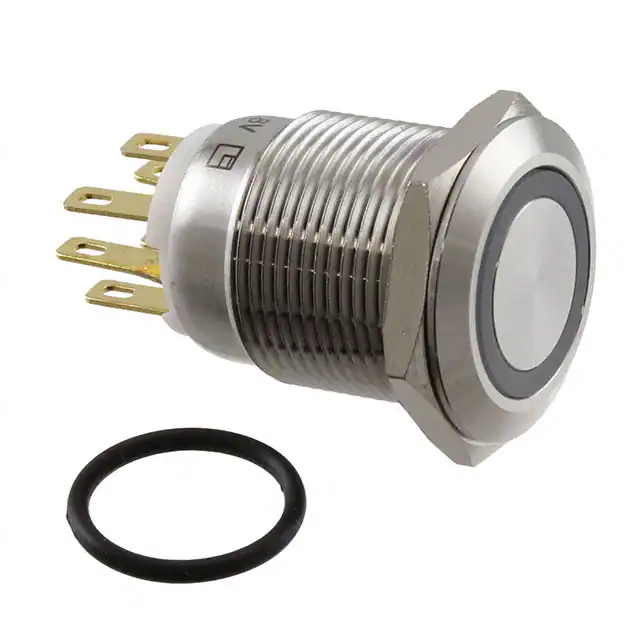

PV4F2Y0SS-331SWITCH PUSHBUTTON DPST 2A 24V |
0 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|

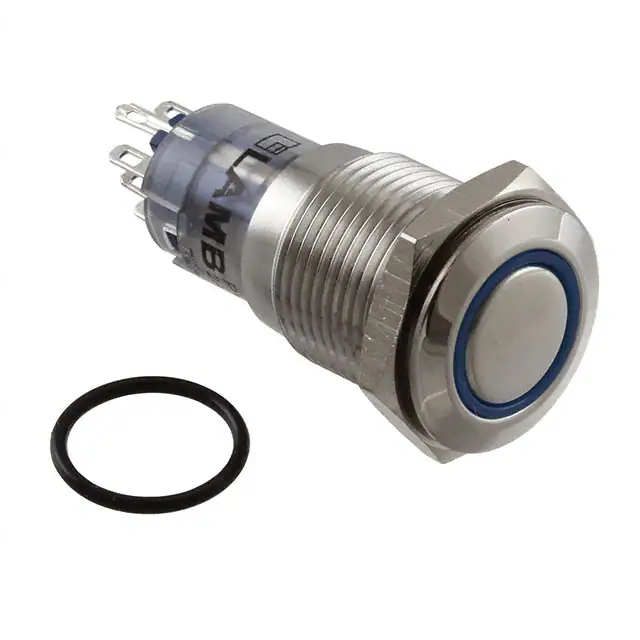

PV3WF2H0SS-341SWITCH PUSHBUTTON DPDT 2A 48V |
0 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 2.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
SW-PB10-DBB2QE-4HIGH PERFORMANCE SEALED PUSHBUTT |
3 |
|
Datasheet |
SW | Tray | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Round, Button, Domed | No Marking | Black | - | - | PC Pin | IP68 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
|
UB226SKW035F-1JFSWITCH PUSHBUTTON DPDT 5A 125V |
4 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|

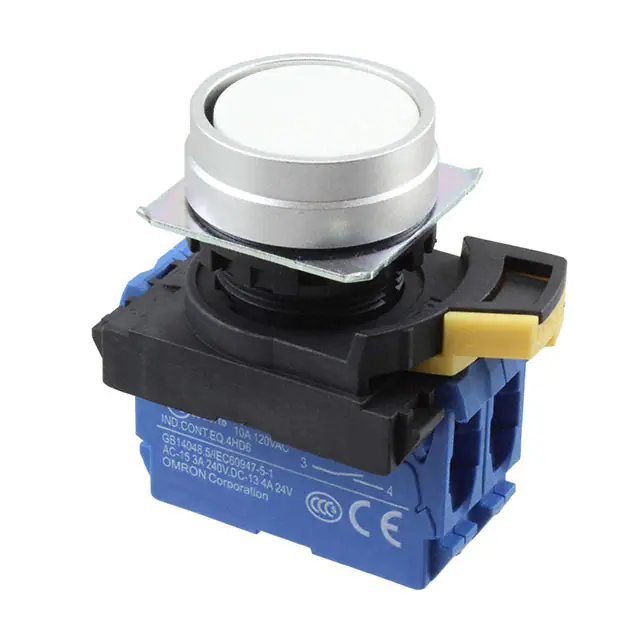

A22NN-MNM-NWA-G101-NNSWITCH PUSH DPST-NO 10A 120V |
1 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | DPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | White | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3-100-987SWITCH PUSHBUTTON SPST 16A 250V |
0 |
|
Datasheet |
MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
