Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A22NN-MGA-NRA-G101-NNSWITCH PUSH DPST-NO 10A 120V |
3 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | DPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
LB15RKW01-5C-JCSWITCH PUSHBUTTON SPDT 3A 125V |
1 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
A3AA-90K1-00LPUSH BUTTON MOMENTARY ROUND PCB |
3 |
|
Datasheet |
A3A | Box | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Square, Button | - | Gray | - | - | Solder Lug | - | - | Square - 11.50mm x 11.50mm | -10°C ~ 55°C |
|
|
A3AT-90L1-00BSWITCH PUSH SPST-NO 6A 125V |
3 |
|
Datasheet |
A3A | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP00 | - | Circular - 11.50mm Dia | -10°C ~ 55°C |
|
|
A3AA-91K1-00BSWITCH PUSH SPST-NO 6A 125V |
1 |
|
Datasheet |
A3A | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | PC Pin | IP00 | - | - | -10°C ~ 55°C |
|

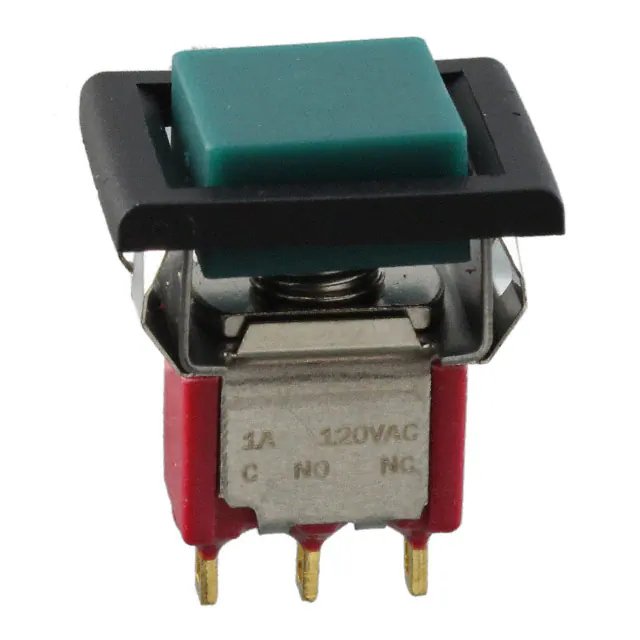

8121J81ZGE62SWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Green | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
465M111172501PUSHBUTTON SWITCH ILLUMINATED 15 |
0 |
|
Datasheet |
WS-PBTL | Tray | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button (Not Included) | No Marking | - | LED, Blue/Green/Red | 2.0, 3.0, 3.0 VDC | PC Pin | - | - | - | -40°C ~ 85°C |
|
8636ASWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
8000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
A3AA-91L1-00ASWITCH PUSH SPST-NO 6A 125V |
2 |
|
Datasheet |
A3A | Bulk | Active | Through Hole | Standard | SPST-NO | Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Blue | - | - | PC Pin | IP00 | - | - | -10°C ~ 55°C |
|
|
A3AT-90K1-00RSWITCH PUSH SPST-NO 6A 125V |
0 |
|
Datasheet |
A3A | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP00 | - | Circular - 11.50mm Dia | -10°C ~ 55°C |
|
|
A3AT-91L1-00BSWITCH PUSH SPST-NO 6A 125V |
0 |
|
Datasheet |
A3A | Bulk | Active | Through Hole | Standard | SPST-NO | Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | IP00 | - | - | -10°C ~ 55°C |
|
ULV4F2BSS344SWITCH PUSHBUTTON SPDT 3A 250V |
0 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
A2A-4ASWITCH PUSHBUTTON SPDT 5A 125V |
3 |
|
Datasheet |
A2A | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | No Marking | Blue | - | - | Solder Lug | IP00 | - | Circular - 10.50mm Dia | -25°C ~ 80°C |
|
8642ASWITCH PUSHBUTTON DPDT 6A 125V |
2 |
|
Datasheet |
8000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
LB15CKW01-FSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
ULV4F23SS544SWITCH PUSHBUTTON SPDT 3A 125V |
17 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
A2A-4RSWITCH PUSHBUTTON SPDT 5A 125V |
1 |
|
Datasheet |
A2A | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | IP00 | - | Circular - 10.50mm Dia | -25°C ~ 80°C |
|
|
UB26RKG035D-JDSWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
AP4C200TWBEPB SWITCH 4N CONCAVE ACT BLACK C |
5 |
|
Datasheet |
AP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
PNP8E5D2C03QESWITCH PUSHBUTTON SPDT 5A 32V |
0 |
|
Datasheet |
PNP | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
