Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A22NN-BPM-NBA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
4 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Black | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

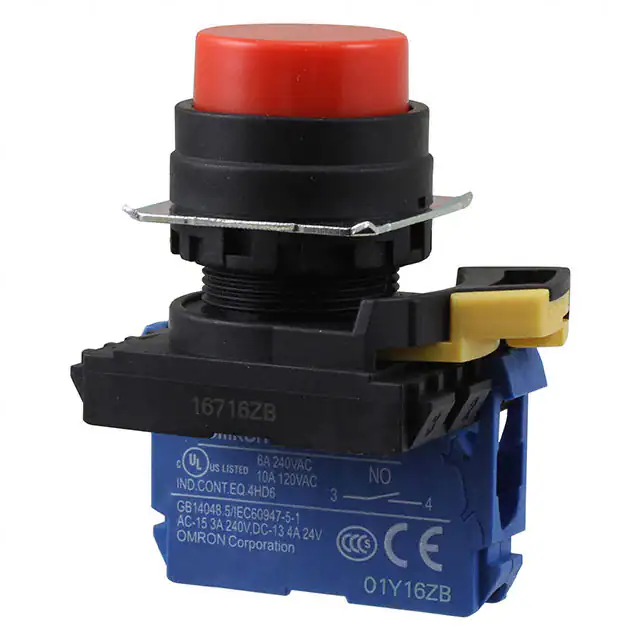

A22NN-BPM-NRA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
4 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A22NN-BPM-NYA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
5 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Yellow | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

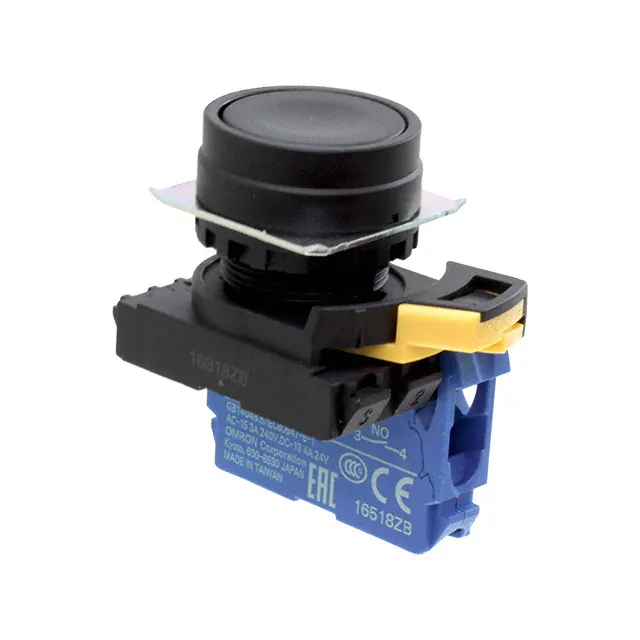

A22NN-BNM-NBA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
4 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Black | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A22NN-BNA-NGA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
1 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Green | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A22NN-BNM-NGA-G002-NNSWITCH PUSH SPST-NC 10A 120V |
0 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Green | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
0041.0411SWITCH PUSHBUTTON SPDT 80MA 125V |
0 |
|
Datasheet |
SDK | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 80mA (AC/DC) | 125 V | 50 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP40 | - | - | -40°C ~ 85°C |
|
A22NN-BMM-NRA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
3 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Mushroom | No Marking | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
MMP0120/ARDSSWITCH PUSHBUTTON SPST-NO 2A 36V |
0 |
|
Datasheet |
MMP0120 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
KP0415ASG03RGBP-2SJBMINIATURE AUDIO/VIDEO PUSHBUTTON |
4 |
|
Datasheet |
KP04 | Box | Active | Surface Mount | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.1, 2.65, 2.9 VDC | SMD (SMT) Tab | - | - | - | -25°C ~ 50°C |
|
PVT4FS4SS315SWITCH PB SPST-NO 50MA 24V |
8 |
|
Datasheet |
PVT4 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Red | 24 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|

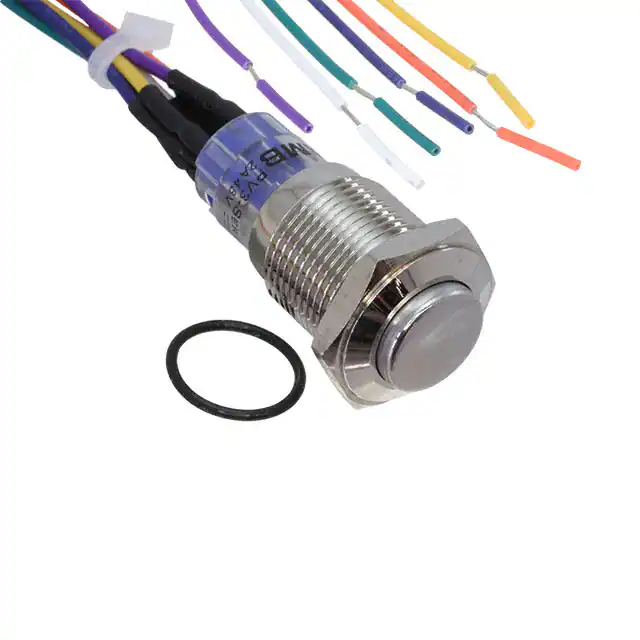

PV3HWH0NNSWITCH PB DPDT 2A 48V |
5 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Wire Leads | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
SV7F23SS-631SWITCH PUSHBUTTON SPST-NO 2A 36V |
0 |
|
Datasheet |
SV7 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | - | Silver | LED, Green | 3.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 70°C |
|
|
CH2NGBBNSSWITCH PB DPDT 1A 125V |
5 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Blue | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
A22NN-MNM-NRA-G002-NNSWITCH PUSH SPST-NC 10A 120V |
4 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A22NN-MNM-NGA-G002-NNSWITCH PUSH SPST-NC 10A 120V |
3 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Green | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

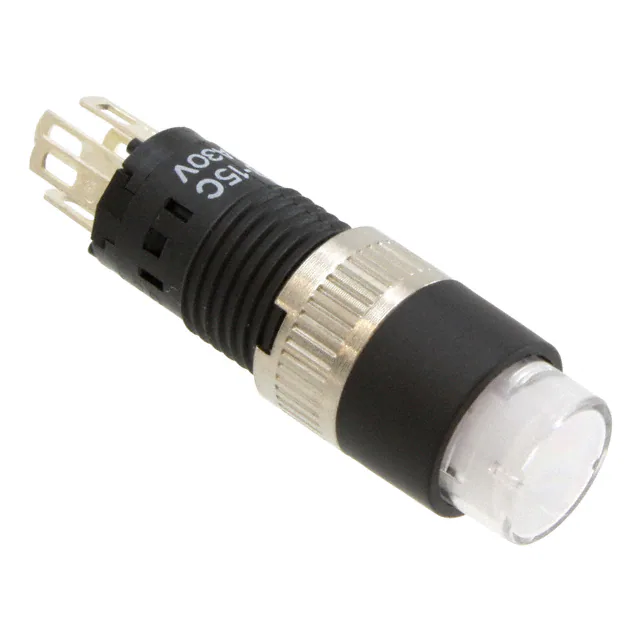

HB15CKW01-5C-JBSWITCH PUSH SPDT 0.1A 30V |
3 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 2.1 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
UB25KKW015D-DDSWITCH PUSHBUTTON DPDT 5A 125V |
3 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Amber | LED, Amber | 2 VDC | Solder Lug | - | Spot LED | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
HB16CKW01-5D-JBSWITCH PUSH SPDT 0.1A 30V |
0 |
|
Datasheet |
HB | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2.05 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
A22NN-BNA-NRA-G102-NNSWITCH PUSH DPST-NO/NC 10A 120V |
5 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
