Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
82-6161.1000SWITCH PB SPDT 3A 240V |
0 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
3-101-001SWITCH PUSHBUTTON SPST 16A 250V |
1 |
|
Datasheet |
MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|

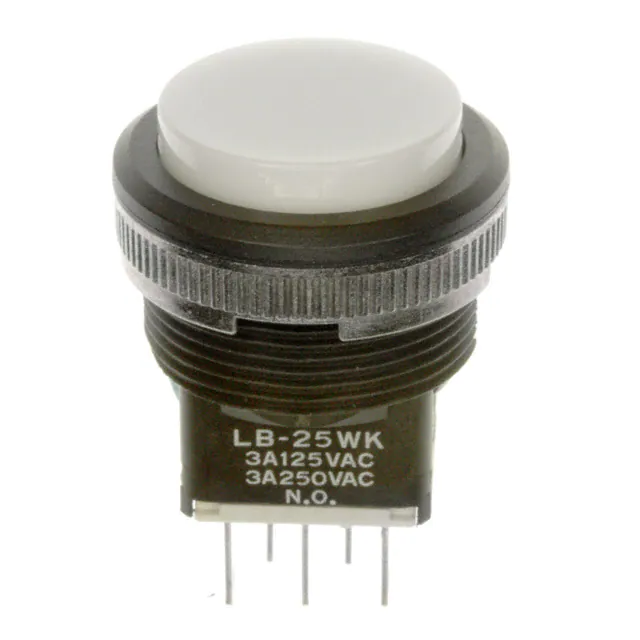

LB25WKW01-BJSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
82-6152.1114.B002SWITCH PB SPDT 3A 240V |
5 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Red | 24 VAC/DC | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
PV4F2Y0SS-345SWITCH PUSHBUTTON SPDT 2A 24V |
0 |
|
Datasheet |
PV4, LAMB | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
XB6EAW4B1PILLUMINATED MONOLITHIC PUSH BUTT |
5 |
|
Datasheet |
Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Red | LED, Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

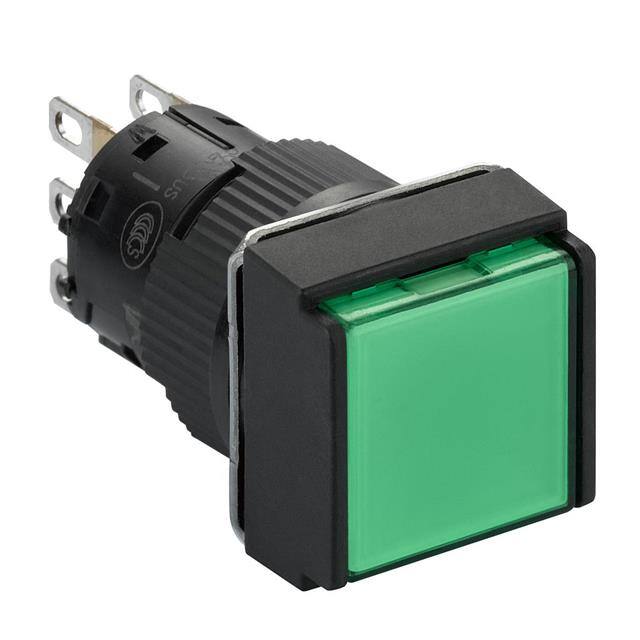

XB6ECW3B1PILLUMINATED MONOLITHIC PUSH BUTT |
3 |
|
Datasheet |
Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Square, Button | - | Green | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

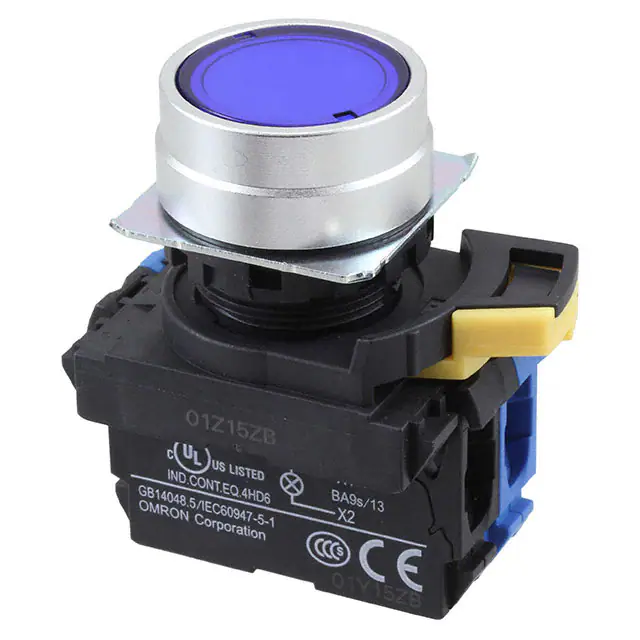

A22NL-MNM-TAA-G100-ACSWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
DH221LBSGNSWITCH PB DPST-NO/NC 2A 125V |
0 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Green | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
PV7F2Y0SS-355SWITCH PUSHBUTTON SPDT 2A 48V |
0 |
|
Datasheet |
PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Yellow | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
5305KAILH BIG MECHANICAL KEY SWITCH |
4 |
|
Datasheet |
- | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (AC/DC) | 12 V | 12 V | Square, Button | No Marking | Yellow | - | - | PC Pin | - | - | - | -10°C ~ 70°C |
|
5306KAILH BIG MECHANICAL KEY SWITCH |
0 |
|
Datasheet |
CT432/CT433 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (AC/DC) | 12 V | 12 V | Square, Button | No Marking | Orange | - | - | PC Pin | - | - | - | -10°C ~ 70°C |
|
|
A3AT-90A1-00RSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
A3A | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP00 | - | Circular - 11.50mm Dia | -10°C ~ 55°C |
|
|
AH1NGSG6SWITCH PB DPST-NO/NC 1A 125V |
3 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Green | 6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
NX303CB1B-62TACTICAL PUSHBUTTON SC 3 CONTACT |
5 |
|
Datasheet |
NX | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|
A22NL-MNA-TGA-G100-GCSWITCH PUSH SPST-NO 10A 120V |
4 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
82-4151.2143SWITCH PUSHBUTTON SPDT 3A 240V |
4 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | No Marking | Silver | LED, Yellow | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
82-4151.1223SWITCH PUSHBUTTON SPDT 3A 240V |
2 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
82-4152.1000SWITCH PB SPDT 3A 240V |
4 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
|
AH1LBBB24SWITCH PB DPST-NO/NC 1A 125V |
3 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 10A (AC), 15A (DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
