Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E125SD1CBESWITCH PUSH SPDT 0.4VA 20V |
1 |
|
Datasheet |
E020 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
3350RUGGED METAL PUSHBUTTON |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | 6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PV2S64011SWITCH PUSH SPST-NO 2A 48V |
0 |
|
Datasheet |
PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Domed | No Marking | Black | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
39-503 REDSWITCH PUSH SPST-NO 0.15A 28V |
1 |
|
Datasheet |
39 | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 28 V | Round, Plunger | No Marking | Red | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
8125SD9AV2BESWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
A22NN-BNA-NWA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | White | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
5113SW PB SPST-NO 10MA 12V 1=10PCS |
1 |
|
Datasheet |
- | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (DC) | - | 12 V | Rectangular, Button | No Marking | Red | - | - | PC Pin | - | - | - | -20°C ~ 80°C |
|
LB25SKW01-5C-JCSWITCH PUSHBUTTON DPDT 3A 125V |
3 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

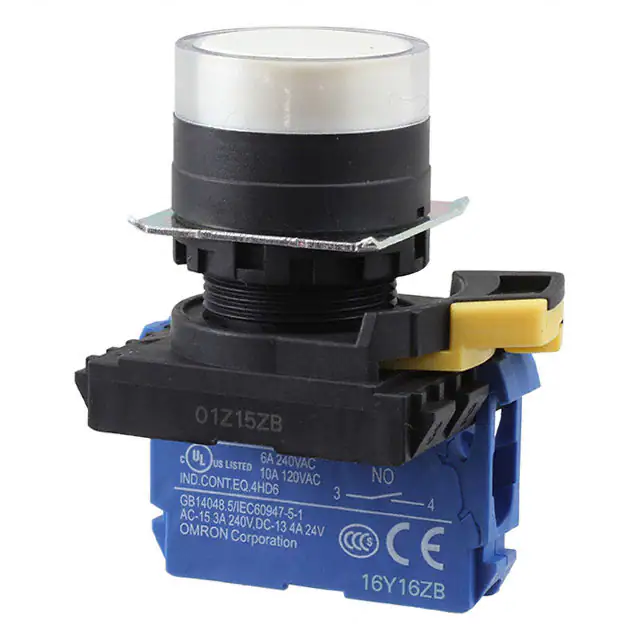

A22NN-BGM-NWA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | White | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

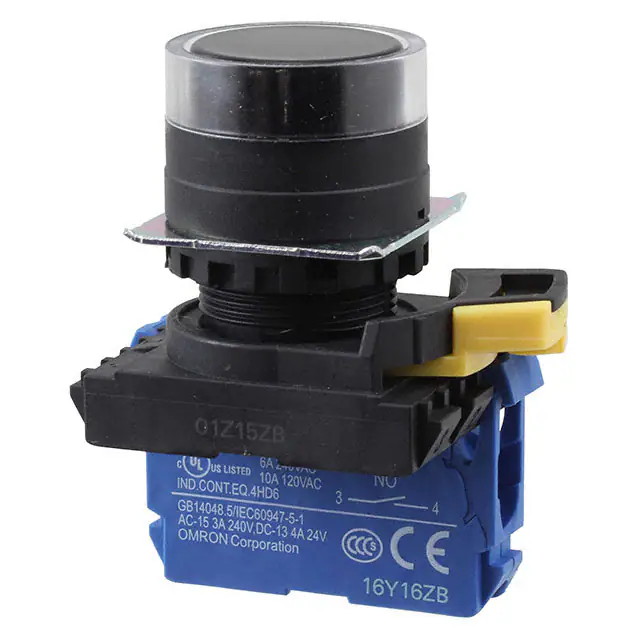

A22NN-BGM-NBA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Black | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

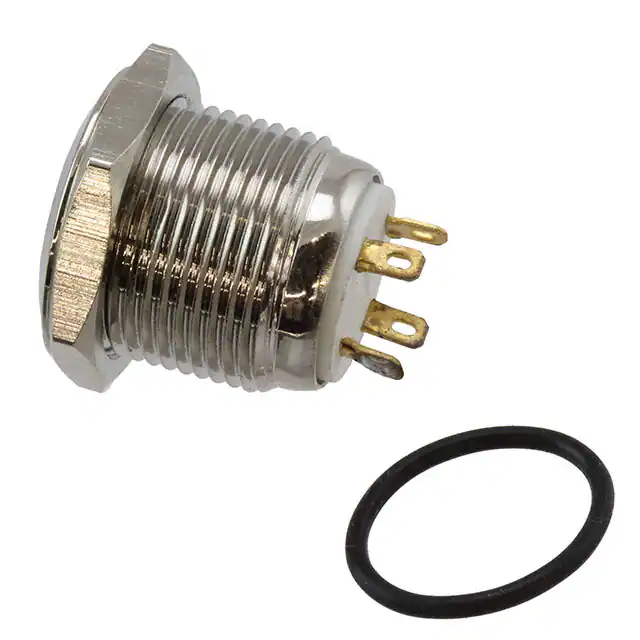

PV6F240NN-304SWITCH PUSH SPST-NO 2A 48V |
0 |
|
Datasheet |
PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, White | 12 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
PV3SH2H0SSSWITCH PB DPDT 2A 48V |
3 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
A22NN-BNM-NWA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | White | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
WSA48-1-RB-N-HRD-BPBS 12MM SPDT 5A 28V UL61058 MOM |
0 |
|
Datasheet |
WSA48 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Round, Button, Domed | - | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.58mm Dia | -40°C ~ 85°C |
|
COM-11274SWITCH PUSHBUTTON SPDT BLUE |
4 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | - | - | - | Round, Button, Domed | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 5 ~ 12 VDC | Quick Connect - 0.187" (4.7mm) | - | Arcade Style | Circular - 24.00mm Dia | - |
|
COM-11275SWITCH PUSHBUTTON SPDT GREEN |
2 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | - | - | - | Round, Button, Domed | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 5 ~ 12 VDC | Quick Connect - 0.187" (4.7mm) | - | Arcade Style | Circular - 24.00mm Dia | - |
|
|
LB25SGW01SWITCH PUSHBUTTON DPDT 3A 125V |
4 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|
|
HB15CKW01-FSWITCH PUSH SPDT 0.1A 30V |
4 |
|
Datasheet |
HB | Box | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Green | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
A22NN-BPA-NGA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
2 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Green | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

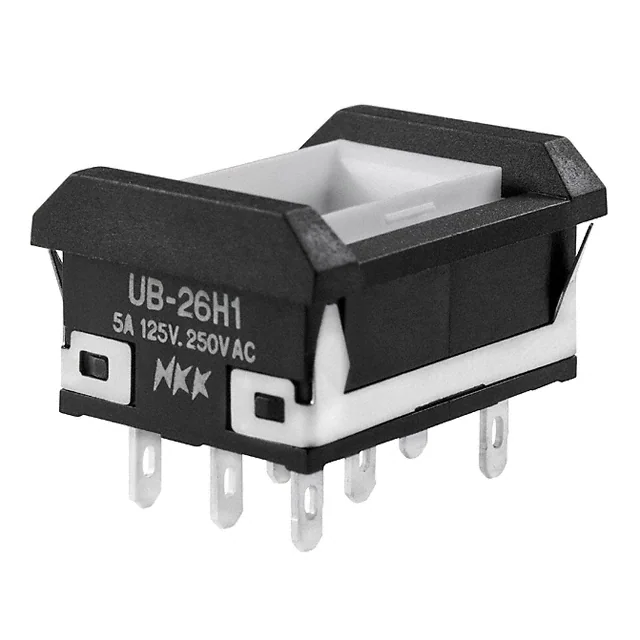

UB15NKW015FSWITCH PUSHBUTTON SPDT 5A 125V |
2 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
