Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PB6B2FM2M2CAL00SWITCH PUSH SPST-NO 125MA 125V |
21 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2HS5M1CAL00SWITCH PUSH SPST-NO 125MA 125V |
8 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2HS5M2CAL00SWITCH PUSH SPST-NO 125MA 125V |
0 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2HS6M2CAL00SWITCH PUSH SPST-NO 125MA 125V |
0 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Green | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PV2S240SSSWITCH PB SPST-NO 2A 48V |
20 |
|
Datasheet |
PV2 | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Domed | - | Silver | - | - | Solder, Quick Connect - 0.079" (2.0mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
BB15AH-FBSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
BB15AV-FCSWITCH PUSH SPDT 0.4VA 28V |
17 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
EH12NMSSZXSWITCH PB SPST-NO 2A 48V |
10 |
|
Datasheet |
EH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
EP11SD1CPESWITCH PUSH SPST-NO 0.4VA 20V |
19 |
|
Datasheet |
EP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

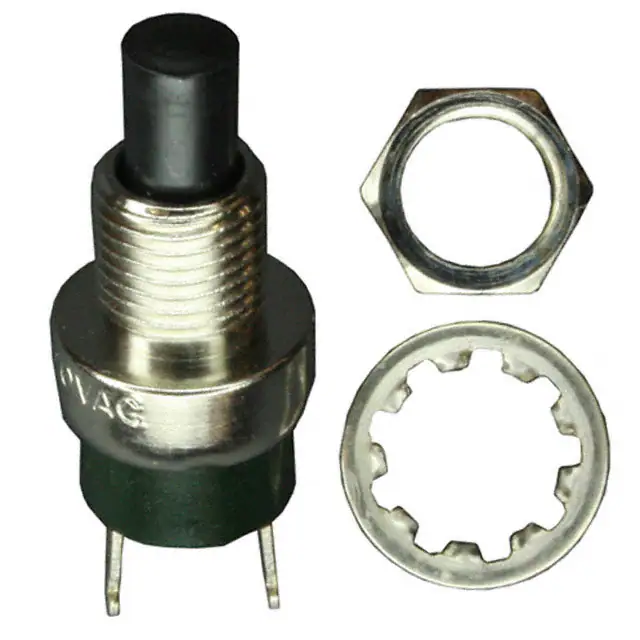

8532SZQE2SWITCH PUSH SPST-NO 1A 120V |
25 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

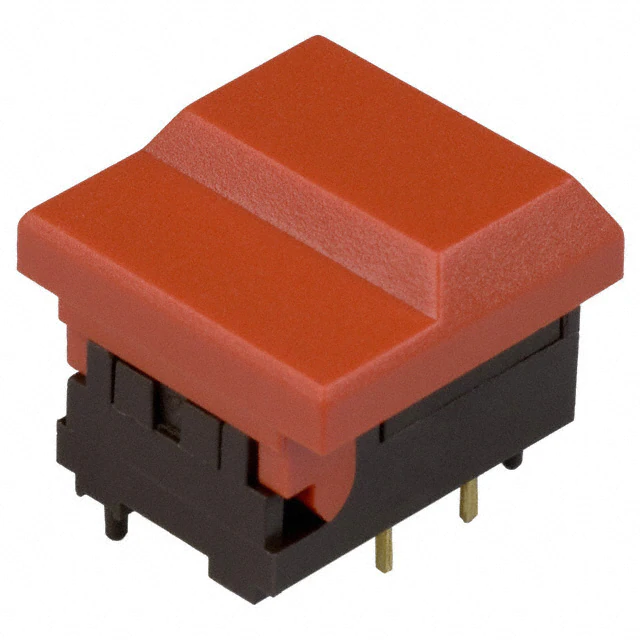

SET RD AU OASWITCH PUSH SPDT 0.01A 24V |
0 |
|
Datasheet |
DIGITAST | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Red | - | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
PLP16C1RD3SE6LOCK, ROUND, IP65, NON-ILLUMINAT |
20 |
|
Datasheet |
PLP16 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 1A (DC) | 250 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
EB2065-CFSWITCH PUSHBUTTON SPDT 3A 125V |
1 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Green | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
BB16AB-HASWITCH PUSH SPDT 0.4VA 28V |
20 |
|
Datasheet |
BB | Bulk | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
WG48-1-RMB-N-WH-BSWITCH PUSHBUTTON 1A 250V |
4 |
|
Datasheet |
WG48-RM | Bulk | Active | Panel Mount, Front | Standard | SPST-NO (DM) | Off-Mom | 1A (AC), 2A (DC) | 250 V | 24 V | Round, Button, Domed | - | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.58mm Dia | -40°C ~ 85°C |
|
|
AB25AB-FASWITCH PUSH DPDT 0.4VA 28V |
20 |
|
Datasheet |
AB | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
7104DSWITCH PUSHBUTTON SPST 6A 125V |
25 |
|
Datasheet |
7100 | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 6A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Solder Lug | - | - | - | - |
|
30-6SWITCH PUSH SPST-NC 1A 115V |
0 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC) | 115 V | - | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | - | Circular - 6.75mm Dia | -40°C ~ 85°C |
|
1.10.001.001/0104SWITCH PUSH SPST-NO 0.7A 250V |
24 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 700mA (AC) | 250 V | - | Round, Button | No Marking | Black | - | - | Screw Terminal | IP40 | - | Circular - 15.20mm Dia | -28°C ~ 85°C |
|
PV2H640BBSWITCH PUSHBUTTON SPST 2A 48V |
25 |
|
Datasheet |
PV2, LAMB | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
