Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

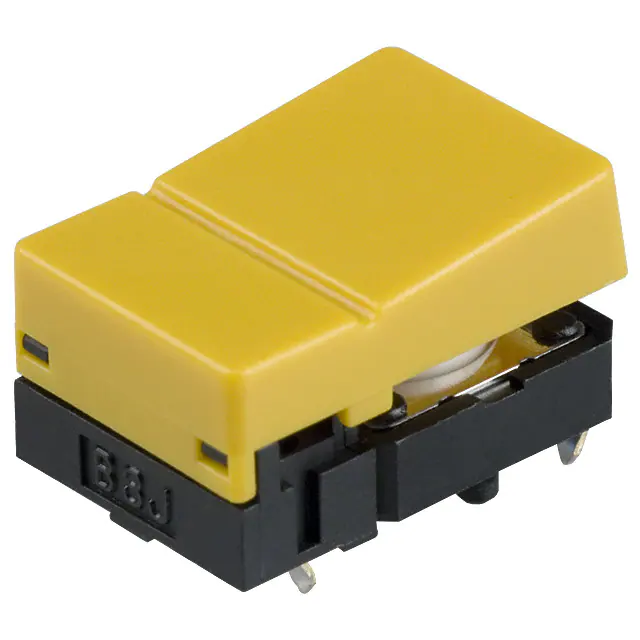

B3J-1300SWITCH PUSH SPST-NO 0.05A 24V |
18 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Yellow | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
WBL2UEERQR05CLRSWITCH PUSHBUTTON DPDT 300MA 30V |
12 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-On | 300mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Red | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
MPB03-1C54-VB-CAP-BK-DSPST, THROUGH HOLE, 5.4 MM PUSH, |
0 |
|
Datasheet |
MPB03 | Bag | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
800SP9B5M1QEHFLUSHACTSWITCH PUSH SPST-NO 3A 120V |
0 |
|
Datasheet |
800 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger, Flush | No Marking | Black | - | - | Solder Lug | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
800USP8P1A1M2RESWITCH PUSH SPDT 0.4VA 20V |
7 |
|
Datasheet |
800U | Tube | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | - | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
800SP9B10M7RESWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
800 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
800AWSP9VS2QESWITCH PUSH SPST-NO 1A 120V |
0 |
|
Datasheet |
800A | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 1A (AC) | 120 V | - | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
4189YELLOW LED ILLUMINATED TRIANGLE |
11 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | - | - | - | Triangular, Button | No Marking | Yellow | LED, White | 2.2 VDC | - | - | - | - | - |
|
|
4186RED LED ILLUMINATED TRIANGLE PUS |
7 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | - | - | - | Triangular, Button | No Marking | Red | LED, White | 3 VDC | - | - | - | - | - |
|
|
4187BLUE LED ILLUMINATED TRIANGLE PU |
6 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | - | - | - | Triangular, Button | No Marking | Blue | LED, White | 2.2 VDC | - | - | - | - | - |
|
|
4188GREEN LED ILLUMINATED TRIANGLE P |
2 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | - | - | - | Triangular, Button | No Marking | Green | LED, White | 2.2 VDC | - | - | - | - | - |
|
|
4190WHITE LED ILLUMINATED TRIANGLE P |
2 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | - | - | - | Triangular, Button | No Marking | White | LED, White | 2.2 VDC | - | - | - | - | - |
|
5631SWITCH PUSHBUTTON STEP PB86 |
0 |
|
Datasheet |
- | Bulk | Active | Through Hole | Standard, Illuminated | - | - | - | - | 24 V | Square, Button | - | - | LED, Red | 2.1 VDC | PC Pin | - | - | - | - |
|
|
800SP9B7M2QESWITCH PUSH SPST-NO 3A 120V |
22 |
|
Datasheet |
800 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
MPB02-1B54-R-CAP-BK-DSPST, THROUGH HOLE, 5.4 MM PUSH, |
17 |
|
Datasheet |
MPB02 | Bag | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|

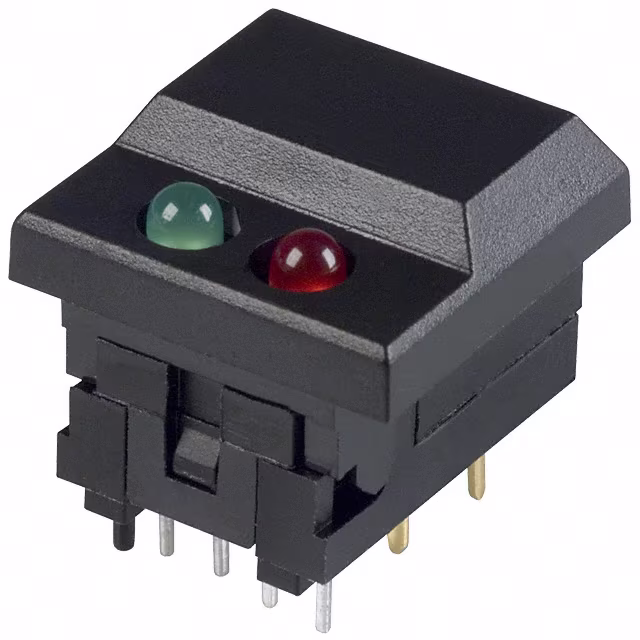

5511MBLKREDGRNSWITCH PUSH SPDT 0.03A 12V |
0 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Black | LED, Green/Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
PV5S240NNSWITCH PB SPST-NO 2A 36V |
25 |
|
Datasheet |
PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | - | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
5516STEP SWITCH WITH LED - THREE PAC |
13 |
|
Datasheet |
- | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 12mA (DC) | - | 24 V | Square, Button | - | Yellow | LED, Red | 2.1 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
5518STEP SWITCH WITH LED - THREE PAC |
7 |
|
Datasheet |
- | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 12mA (DC) | - | 24 V | Square, Button | - | Green | LED, Red | 2.1 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
B3J-2000SWITCH PUSH SPST-NO 0.05A 24V |
2 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Gray, Light | LED, Red | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
