Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3PA-90A11-24AASWITCH PUSHBUTTON SPDT 5A 125V |
3 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Blue | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 23.50mm x 22.50mm | -10°C ~ 40°C |
|
AV031003C940NSWITCH PUSH SPST-NO 2A 48V |
0 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | - | Circular - 22.20mm Dia | -30°C ~ 70°C |
|
|
A3SJ-90C1-24SASWITCH PUSHBUTTON DPDT 3A 125V |
2 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Blue | LED, Blue | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Rectangular - 22.40mm x 16.20mm | -10°C ~ 50°C |
|
A165L-AAA-12D-2SSWITCH PUSHBUTTON DPDT 5A 125V |
5 |
|
Datasheet |
A16 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC) | 125 V | - | Square, Button | No Marking | Blue | LED, Blue | 12 VDC | Screwless Clamp | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

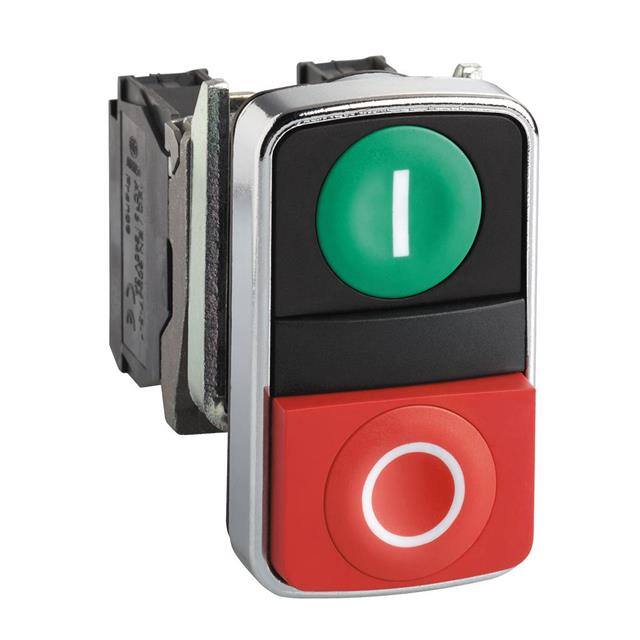

XB4BL73415HARMONY XB4, DOUBLE-HEADED PUSH |
5 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Green, Red | - | - | Screw Terminal | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
165TL22SWITCH PUSH 4PST-2NO/2NC 5A 250V |
0 |
|
Datasheet |
Command | Bulk | Active | Panel Mount, Front | Standard, Illuminated | 4PST-2NO/2NC | On-Mom, Off-Mom | 5A (AC/DC) | 250 V | 24 V | Rectangular, Button | No Marking | - | - | - | Solder Lug | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 50°C |
|
A3PA-90A11-24APWSWITCH PUSHBUTTON SPDT 5A 125V |
5 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | White | LED, White | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 23.50mm x 22.50mm | -10°C ~ 40°C |
|
9001KR3UH13PUSH BUTTON 600VAC 10A 30MM T-K |
10 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button | - | - | - | - | Screw Terminal | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
A3PT-90A12-24SGSWITCH PUSHBUTTON SPDT 5A 125V |
2 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Round, Button | No Marking | Green | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 29.00mm Dia | -10°C ~ 50°C |
|
XB7NW33G1HARMONY XB7, MONOLITHIC ILLUMINA |
8 |
|
Datasheet |
Harmony XB7 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 120 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
A3PJ-90A11-24ARSWITCH PUSHBUTTON SPDT 5A 125V |
8 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | LED, Red | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 30.50mm x 23.50mm | -10°C ~ 40°C |
|
|
9001AS2PUSHBUTTON +OPTIONS |
10 |
|
Datasheet |
Harmony 9001A | Box | Active | - | Standard | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9001AS1PUSHBUTTON +OPTIONS |
10 |
|
Datasheet |
Harmony 9001A | Box | Active | - | Standard | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A3PA-90B11-24AWSWITCH PUSHBUTTON SPDT 5A 125V |
9 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | White | LED, Amber | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 23.50mm x 22.50mm | -10°C ~ 40°C |
|
ZB4BW0B32COMPLETE BODY/CONTACT ASSEMBLY A |
5 |
|
Datasheet |
Harmony XB4 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NC | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button (Not Included) | - | Green | LED, Green | 24 VDC | Screw Terminal | - | - | - | -40°C ~ 70°C |
|
|
AV22LC132SWITCH PUSHBUTTON SPDT 5A 250V |
0 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Sealed - Fully | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
ZB5AW0M41COMPLETE BODY/CONTACT ASSEMBLY A |
5 |
|
Datasheet |
Harmony XB5 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button (Not Included) | - | Red | LED, Red | 230 ~ 240 VAC | Screw Terminal | - | - | - | -40°C ~ 70°C |
|
|
9001KR2UH13PUSH BUTTON 600VAC 10A 30MM T-K |
10 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button | - | - | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
9001KR3GH13PUSH BUTTON 600VAC 10A 30MM T-K |
5 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPDT | On-Off, Off-On | 10A (AC/DC) | - | - | Round, Button | - | Green | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
|
9001KR2RH6PUSH BUTTON 600VAC 10A 30MM T-K |
10 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Off | - | - | - | Round, Button | - | Red | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
