Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XB7NW38M1HARMONY XB7, MONOLITHIC ILLUMINA |
10 |
|
Datasheet |
Harmony XB7 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Yellow | LED, Yellow | 230 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
XB7NW35M1HARMONY XB7, MONOLITHIC ILLUMINA |
10 |
|
Datasheet |
Harmony XB7 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Orange | LED, Orange | 230 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
9001KR4GH13PUSH BUTTON 600VAC 10A 30MM T-K |
10 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPDT | On-Off | 10A (AC/DC) | - | - | Round, Button, Mushroom | - | Green | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
XB7NW37G1HARMONY XB7, MONOLITHIC ILLUMINA |
5 |
|
Datasheet |
Harmony XB7 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Orange | LED, Orange | 120 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
XB7NW34G2HARMONY XB7, MONOLITHIC ILLUMINA |
5 |
|
Datasheet |
Harmony XB7 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NC | Off-On | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 120 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
XB7NW38G1HARMONY XB7, MONOLITHIC ILLUMINA |
10 |
|
Datasheet |
Harmony XB7 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Yellow | LED, Yellow | 120 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
A3PJ-90A11-24AASWITCH PUSHBUTTON SPDT 5A 125V |
3 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Blue | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 30.50mm x 23.50mm | -10°C ~ 40°C |
|
|
XB7NJ08B1ILLUMINATED PUSH BUTTON, HARMONY |
10 |
|
Datasheet |
Harmony XB7 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Yellow | LED, Yellow | 24 VDC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
XB7NJ08G1ILLUMINATED PUSH BUTTON, HARMONY |
10 |
|
Datasheet |
Harmony XB7 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Yellow | LED, Yellow | 120 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
XB7NJ05G1ILLUMINATED PUSH BUTTON, HARMONY |
10 |
|
Datasheet |
Harmony XB7 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Orange | LED, Orange | 120 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
9001BF201CONTROL STATION 600VAC 5A T-B |
10 |
|
Datasheet |
Harmony 9001B | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 600 V | - | Round, Button, Dual | - | Black | - | - | Screw Terminal | - | - | - | - |
|
|
9001AB3PUSHBUTTON +OPTIONS |
10 |
|
Datasheet |
Harmony | Box | Obsolete | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 10A (AC) | 600 V | - | Plunger for Cap | - | Red | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | -30°C ~ 60°C |
|
9001KR1GH1330MM PUSH BUTTON, TYPE K, PUSH B |
9 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
9001SKR1UH13PUSHBUTTON 600VAC 10AMP 30MM SK |
6 |
|
Datasheet |
Harmony 9001SK | Box | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button, Flush | - | - | - | - | Screw Terminal | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
2PB1000SWITCH PUSH SPDTX2 1A 30V |
0 |
|
Datasheet |
PB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT x 2 | On-Mom | 1A (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | - | - |
|

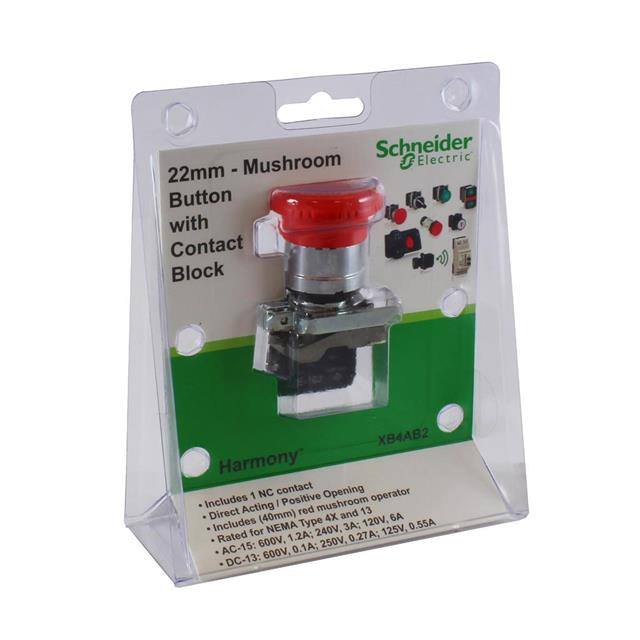

XB4AB222MM PUSH BUTTON, HARMONY XB4, M |
5 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | - | - | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button | - | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

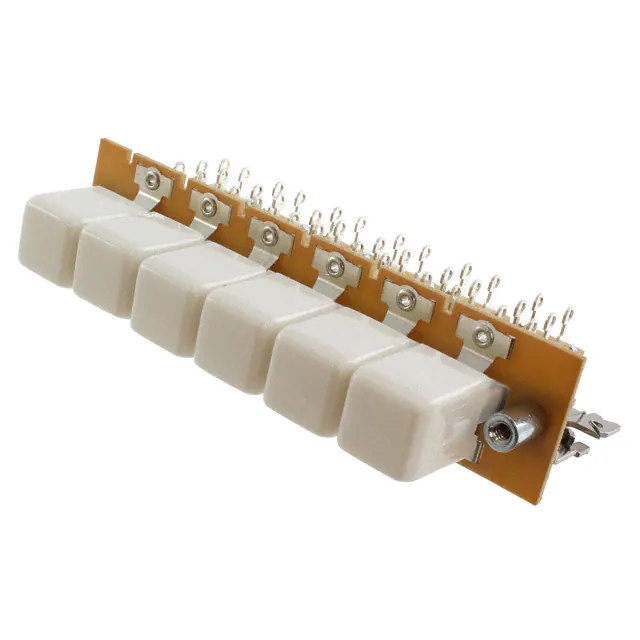

67061K506XSWITCH PUSHBUTTON DPDT 3A 125V |
7 |
|
Datasheet |
67000 | Bulk | Active | Panel Mount, Rear | Standard, Illuminated | DPDT | - | 3A (AC) | 125 V | - | Square, Button | No Marking | White | - | - | Solder Lug | - | - | Rectangular - 95.28mm x 15.88mm | - |
|
|
A3PJ-90A12-24AASWITCH PUSHBUTTON SPDT 5A 125V |
2 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Blue | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 30.50mm x 23.50mm | -10°C ~ 40°C |
|

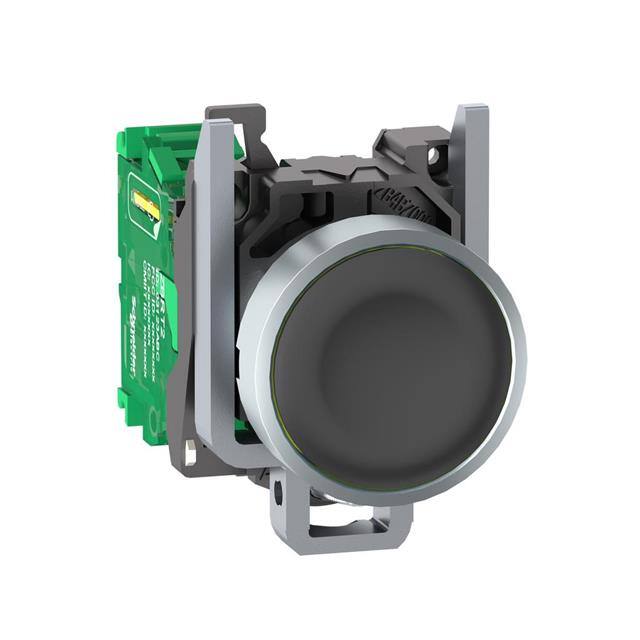

ZB4RTA2HARMONY XB4, WIRELESS AND BATTER |
8 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button, Flush | - | Black | - | - | Wireless | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
9001KR25RH13PUSH BUTTON 600VAC 10A 30MM T-K |
2 |
|
Datasheet |
Harmony 9001K | Box | Obsolete | Panel Mount, Front | Standard | SPDT | On-Off | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button, Mushroom | - | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
