Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3SA-90A1-24SWSWITCH PUSHBUTTON SPDT 3A 125V |
2 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button | No Marking | White | LED, Amber | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Square - 16.20mm x 16.20mm | -10°C ~ 50°C |
|
A3SA-90A1-24SGSWITCH PUSHBUTTON SPDT 3A 125V |
2 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button | No Marking | Green | LED, Green | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Square - 16.20mm x 16.20mm | -10°C ~ 50°C |
|
750-2000MECHANICAL TIMER SWITCH 5 AMP |
19 |
|
Datasheet |
- | Bag | Active | Panel Mount, Rear | Standard | DPST-NO/NC | Off-On-Mom | 5A (AC) | 125 V | 30 V | Round, Button | No Marking | - | - | - | Terminal Block | - | Mechanical Timer | Circular - 12.00mm Dia | -25°C ~ 70°C |
|
MML21KK2ABKGSDGSWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
- |
MML21 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 1A (AC) | 125 V | - | Rectangular, Button | No Marking | Black | LED, Green | - | Solder Lug | - | Tactile Feedback | Rectangular - 16.00mm x 11.50mm | -18°C ~ 65°C |
|
A3PJ-90B11-24AGSWITCH PUSHBUTTON SPDT 5A 125V |
8 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Green | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 30.50mm x 23.50mm | -10°C ~ 40°C |
|
|
CW4H-DM1NGR-CSWITCH PUSHBUTTON 100MA 24V |
6 |
|
Datasheet |
CW | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | 100mA (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Green/Red | 12 ~ 24 VDC | Connector | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
30-05-04-502-07SWITCH PUSH SPST-NO 1A 115V |
0 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 1A (AC) | 115 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | Overtravel, Tactile Feedback | Rectangular - 13.10mm x 11.17mm | -40°C ~ 85°C |
|
A3PA-90B11-24AASWITCH PUSHBUTTON SPDT 5A 125V |
5 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Blue | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 23.50mm x 22.50mm | -10°C ~ 40°C |
|
MC25LCBGRSW CAPACITIVE SPST-NC 10MA 12V |
9 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NC | On-Off | 500mA (DC) | - | 12 V | Round, Button, Flush | No Marking | Black | LED, Green/Red | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 55°C |
|
|
PBAR1AF2000A0SSWITCH PUSH SPST-NO 0.2A 24V |
0 |
|
Datasheet |
PBA | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Red | 5 VDC | Wire Leads | IP68 - Dust Tight, Waterproof | Low Temperature Lubricant | Circular - 16.20mm Dia | -40°C ~ 75°C |
|

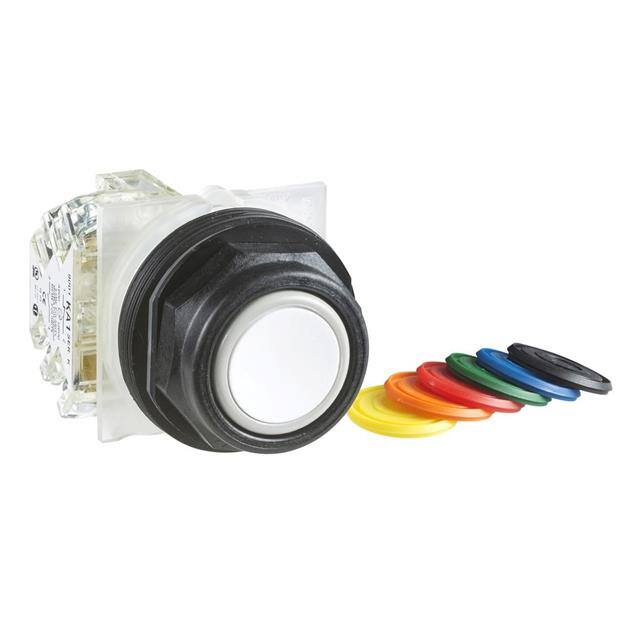

9001SKR1UH5PUSHBUTTON 600VAC 10AMP 30MM SK |
10 |
|
Datasheet |
Harmony 9001SK | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button, Flush | - | - | - | - | Screw Terminal | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
A3SJ-90B1-24SRSWITCH PUSHBUTTON SPDT 3A 125V |
7 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | LED, Red | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Rectangular - 22.40mm x 16.20mm | -10°C ~ 50°C |
|

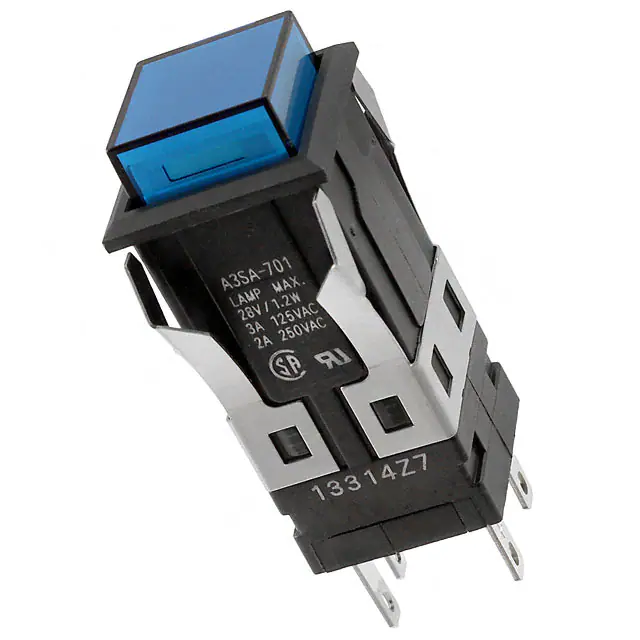

A3SA-90A1-24SASWITCH PUSHBUTTON SPDT 3A 125V |
5 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button | No Marking | Blue | LED, Blue | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Square - 16.20mm x 16.20mm | -10°C ~ 50°C |
|
|
YB216CWSPG01-5C-HB-005SWITCH PUSHBUTTON ILLUMINATED |
22 |
|
Datasheet |
YB2 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
K14-131.211011ILLUMINATED PUSHBUTTON, MOMENTAR |
5 |
|
Datasheet |
K14 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC), 2A (DC) | 250 V | 24 V | Round, Button | - | Blue | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 30.50mm Dia | -25°C ~ 55°C |
|
A165L-ARA-T1-2SWITCH PUSHBUTTON DPDT 5A 125V |
5 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC) | 125 V | - | Square, Button | No Marking | Red | LED, Red | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
A165L-ARM-T1-2SWITCH PUSHBUTTON DPDT 5A 125V |
4 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Square, Button | No Marking | Red | LED, Red | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

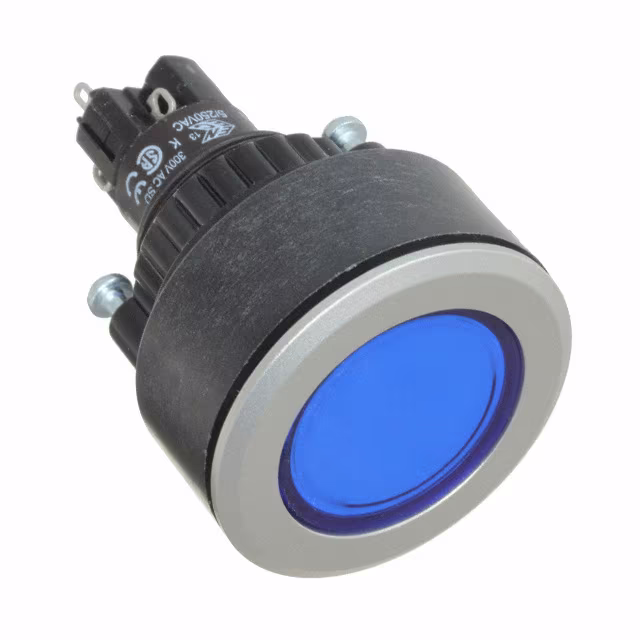

K14-131.221061SWITCH PB DPST-NO/NC 5A 250V |
10 |
|
Datasheet |
14 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Blue | LED, Blue | 24 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 30.50mm Dia | -25°C ~ 55°C |
|
|
LBW7ML-M1T64PWLBW FLUSH ILLD PB MOME. PW |
2 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | White | LED, White | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
YB226CWCKW01-5F05-HB-001SWITCH PUSHBUTTON ILLUMINATED |
3 |
|
Datasheet |
YB2 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Green | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
