Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

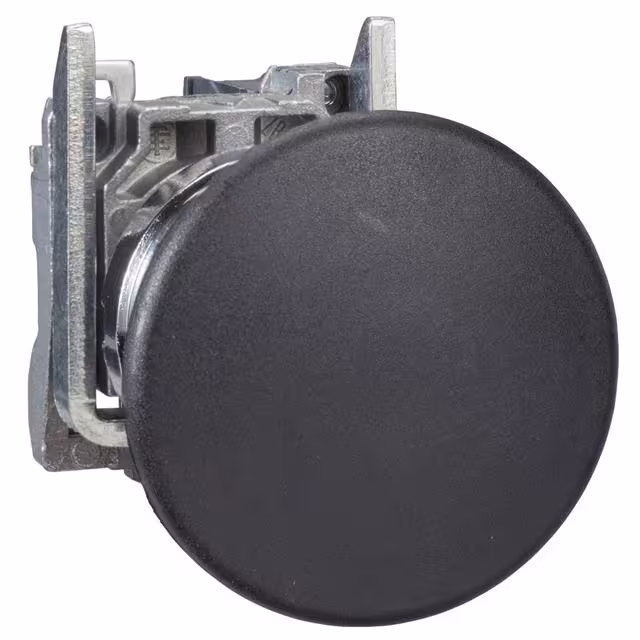

XB4BC21HARMONY XB4, PUSH BUTTON, METAL, |
5 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Mushroom | - | Black | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
PW1L-R6AFB002PSG22MM PIEZO DOT 12VDC RED-GREEN |
10 |
|
Datasheet |
PW1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.20mm Dia | -40°C ~ 75°C |
|
11-132.825SWITCH PB DPDT 5A 250V |
2 |
|
Datasheet |
11 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT (DB/DM) | On-Mom | 5A (AC), 2A (DC) | 250 V | 24 V | Round, Button (Not Included) | No Marking | - | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | - |
|
A3SJ-90B1-24SGSWITCH PUSHBUTTON SPDT 3A 125V |
9 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Green | LED, Green | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Rectangular - 22.40mm x 16.20mm | -10°C ~ 50°C |
|

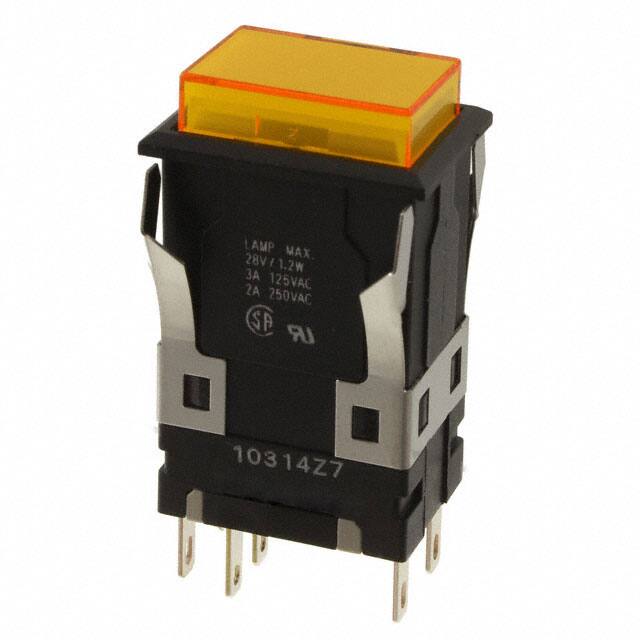

A3SJ-90A1-24SYSWITCH PUSHBUTTON SPDT 3A 125V |
7 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Yellow | LED, White | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Rectangular - 22.40mm x 16.20mm | -10°C ~ 50°C |
|
A3SJ-90A1-24SWSWITCH PUSHBUTTON SPDT 3A 125V |
5 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | White | LED, Amber | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Rectangular - 22.40mm x 16.20mm | -10°C ~ 50°C |
|
A165L-TWA-T1-2SWITCH PUSHBUTTON DPDT 5A 125V |
4 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC) | 125 V | - | Round, Button | No Marking | White | LED, White | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
AML22CBF2ABSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
A3SA-90D1-24SASWITCH PUSHBUTTON DPDT 3A 125V |
2 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button | No Marking | Blue | LED, Blue | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Square - 16.20mm x 16.20mm | -10°C ~ 50°C |
|
|
A3SA-90D1-24SRSWITCH PUSHBUTTON DPDT 3A 125V |
2 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Square - 16.20mm x 16.20mm | -10°C ~ 50°C |
|
PN1L-M2AFB002D0Y30MM PIEZO RING 12VDC YELLOW |
8 |
|
Datasheet |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Yellow | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
|
|
AML21LBC2ACSWITCH PUSHBUTTON DPDT 3A 125V |
3 |
|
Datasheet |
AML21 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | 14 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Full Guard Bezel | Rectangular - 28.98mm x 19.05mm | - |
|
CS10K-MLDT-C20-056BCANEO series10 STANDARD - Moment |
6 |
|
Datasheet |
CANEO series10 Standard Momentary (Static) | Box | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | - | On-Mom | 200mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Black | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | Washable | Circular - 22.50mm Dia | -30°C ~ 65°C |
|
XB7NW37M1HARMONY XB7, MONOLITHIC ILLUMINA |
5 |
|
Datasheet |
Harmony XB7 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Clear | LED, Clear | 230 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
46-05-08-502-06SWITCH PUSH DPDT 0.25A 115V |
0 |
|
Datasheet |
46 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 250mA (AC) | 115 V | - | Round, Button | No Marking | Yellow | - | - | Solder Lug | - | - | Rectangular - 16.28mm x 14.35mm | -40°C ~ 85°C |
|
|
YB226CWSPG01-6F-HB-005DPDT ON-ON SQUARE W/ BRUSHED CHR |
22 |
|
- |
YB2 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Flush | No Marking | Unbrushed Chrome, White | LED, Green | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile/Audible Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|

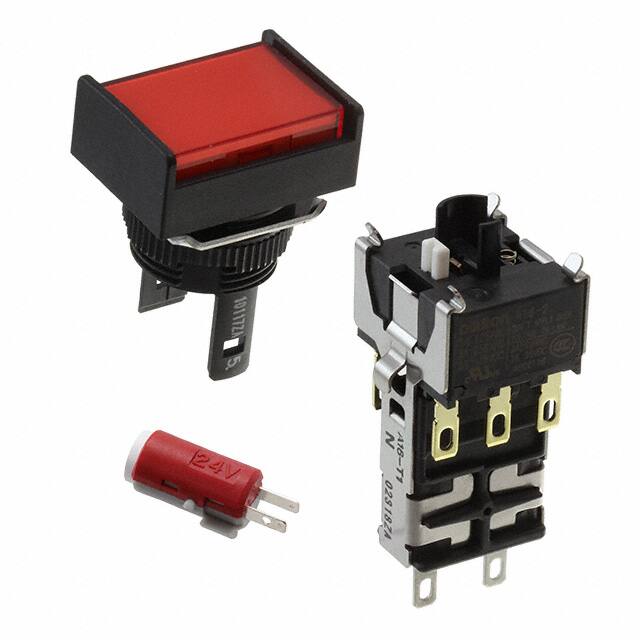

A165L-JRM-T1-2SWITCH PUSHBUTTON DPDT 5A 125V |
4 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Red | LED, Red | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

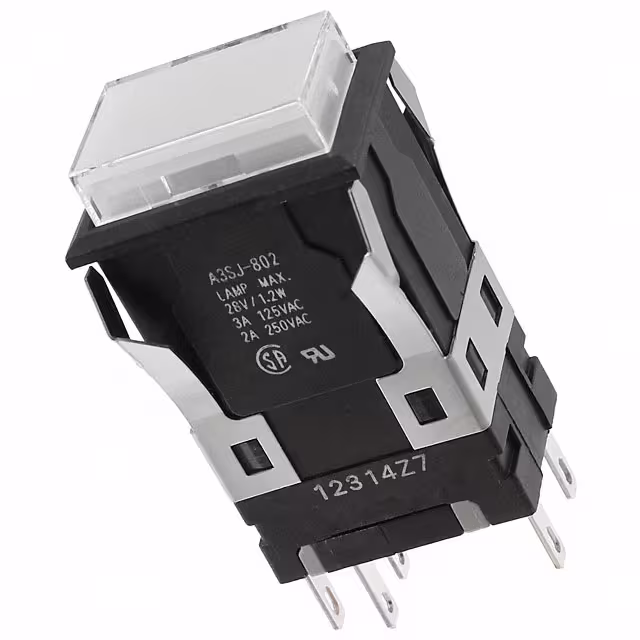

A3SJ-90B1-24SPWSWITCH PUSHBUTTON SPDT 3A 125V |
3 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | White | LED, White | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Rectangular - 22.40mm x 16.20mm | -10°C ~ 50°C |
|
A3SJ-90B1-24SASWITCH PUSHBUTTON SPDT 3A 125V |
6 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Blue | LED, Blue | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Rectangular - 22.40mm x 16.20mm | -10°C ~ 50°C |
|
|
9001AB1PUSHBUTTON +OPTIONS |
10 |
|
Datasheet |
Harmony 9001A | Box | Active | - | Standard | - | - | - | - | - | - | - | - | - | - | - | - | - | Circular - 30.00mm Dia | - |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
