Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9001KR1GH6PUSHBUTTON 600VAC 10A 30MM TYPE |
10 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Off | 10A (AC/DC) | - | - | Round, Button, Flush | - | Green | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
|
A3PA-90B12-24APWSWITCH PUSHBUTTON SPDT 5A 125V |
2 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | White | LED, White | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 23.50mm x 22.50mm | -10°C ~ 40°C |
|
XB4BL734155DOUBLE HEADED PUSH BUTTON, HARMO |
3 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 10A (AC) | 600 V | - | Rectangular, Button, Flush | - | Green, Red | - | - | Screw Terminal | IP67/IP69/IP69K - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

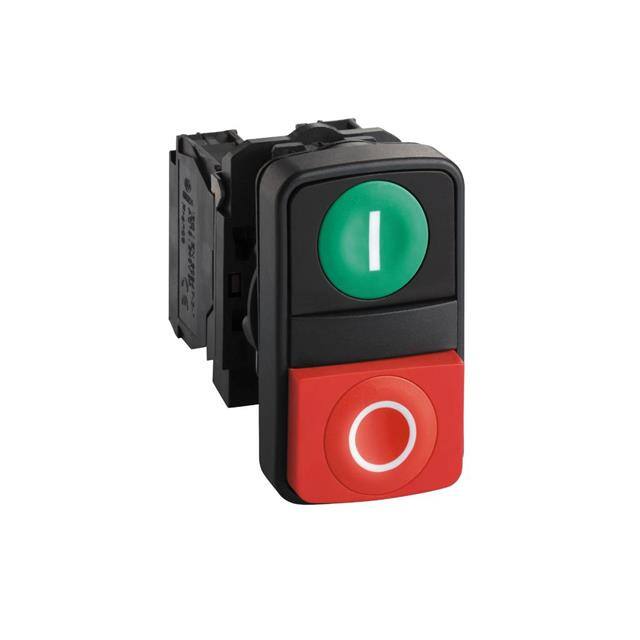

XB5AL73415HARMONY XB5, DOUBLE-HEADED PUSH |
6 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Green, Red | - | - | Screw Terminal | IP67/IP69/IP69K - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
K30LGRBPPB2K30L SERIES EZ-LIGHT: 3-COLOR IN |
2 |
|
Datasheet |
K30 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 150mA (DC) | - | 30 V | Round, Button, Domed | - | - | LED, Blue/Green/Red | 30 VDC | Cable Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 50°C |
|
11-272.825SWITCH PB DPDT 5A 250V |
5 |
|
Datasheet |
11 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT (DB/DM) | On-On | 5A (AC), 2A (DC) | 250 V | 24 V | Round, Button (Not Included) | No Marking | - | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | - |
|
00433-0011.25" CYLINDRICAL PUSH BUTTON |
25 |
|
- |
- | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 3A (AC), 1.1A (DC) | 120 V | 125 V | Round, Button | No Marking | Black | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | 0°C ~ 55°C |
|
|
A3PA-90C12-24APWSWITCH PUSHBUTTON DPDT 5A 125V |
2 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | White | LED, White | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 23.50mm x 22.50mm | -10°C ~ 40°C |
|
|
A3PJ-90B12-24AGSWITCH PUSHBUTTON SPDT 5A 125V |
2 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Green | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 30.50mm x 23.50mm | -10°C ~ 40°C |
|
|
A3PJ-90C12-24AOSWITCH PUSHBUTTON DPDT 5A 125V |
2 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Orange | LED, Orange | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 30.50mm x 23.50mm | -10°C ~ 40°C |
|
|
9001BG206CONTROL STATION 600VAC 5A T-B |
10 |
|
Datasheet |
Harmony 9001B | Box | Obsolete | Panel Mount, Front | Standard | DPST-NO | Off-On | 5A (AC) | 600 V | - | Rectangular, Button, Dual | - | Black | - | - | Screw Terminal | - | - | - | - |
|
|
9001BG207CONTROL STATION 600VAC 5A T-B |
10 |
|
Datasheet |
Harmony 9001B | Box | Obsolete | Panel Mount, Front | Standard | DPST-NO | Off-On | 5A (AC) | 600 V | - | Rectangular, Button, Dual | - | Black | - | - | Screw Terminal | - | - | - | - |
|
|
9001BG209CONTROL STATION 600VAC 5A T-B |
10 |
|
Datasheet |
Harmony 9001B | Box | Active | Panel Mount, Front | Standard | DPST-NO | Off-Mom | 5A (AC) | 600 V | - | Rectangular, Button, Dual | - | Black | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
9001BG208CONTROL STATION 600VAC 5A T-B |
8 |
|
Datasheet |
Harmony 9001B | Box | Active | Panel Mount, Front | Standard | DPST-NO | Off-On | 5A (AC) | 600 V | - | Rectangular, Button, Dual | - | Black | - | - | Screw Terminal | - | - | - | - |
|
|
A3PJ-90D11-24AOSWITCH PUSHBUTTON DPDT 5A 125V |
2 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Orange | LED, Orange | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 30.50mm x 23.50mm | -10°C ~ 40°C |
|
AML32FBK4ADSWITCH PUSH DPST-NO 10A 125V |
0 |
|
Datasheet |
AML32 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO (DM) | Off-On | 10A (AC/DC) | 125 V | 30 V | Rectangular, Button (Not Included) | No Marking | - | Neon, Clear | 125 VAC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 29.00mm x 19.00mm | - |
|
|
40302-501SELECTOR PUSH BUTTON MOMENTARY |
25 |
|
- |
- | Bulk | Active | Chassis Mount | Standard | - | - | 6A (AC), 2.2A (DC) | 120 V | 125 V | Round, Button | No Marking | Black | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 30.73mm Dia | 0°C ~ 55°C |
|
XB7NW36G1HARMONY XB7, MONOLITHIC ILLUMINA |
5 |
|
Datasheet |
Harmony XB7 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Blue | LED, Blue | 120 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
A3PJ-90D12-24AOSWITCH PUSHBUTTON DPDT 5A 125V |
2 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Orange | LED, Orange | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 30.50mm x 23.50mm | -10°C ~ 40°C |
|
07-26 BLKSWITCH PUSH SPDT 10A 115V |
0 |
|
Datasheet |
7 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 10A (AC) | 115 V | - | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | - | -40°C ~ 85°C |
