Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBNR15A2W40SNAP-ACTION BRACKET PC MOUNT PUS |
99 |
|
- |
MB2400 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Plunger for Cap | - | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
UB15NKW01N-BSWITCH PUSHBUTTON SPDT 5A 125V |
20 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | White | - | - | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|

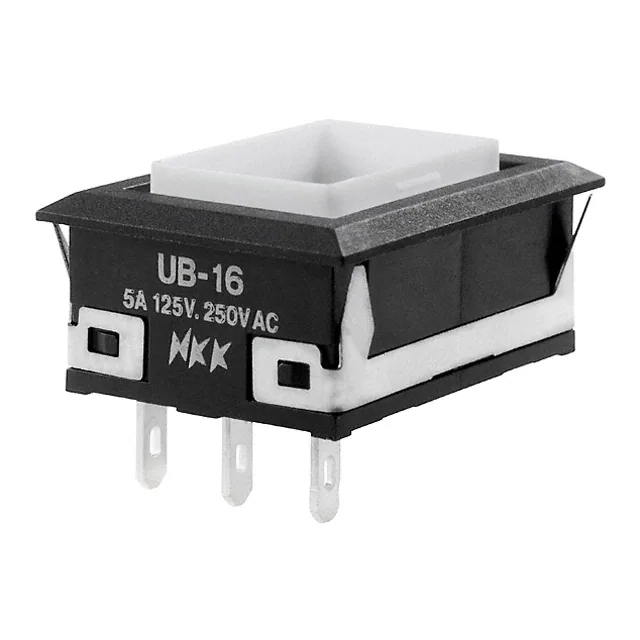

UB16NKW01NSWITCH PUSHBUTTON SPDT 5A 125V |
1 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|

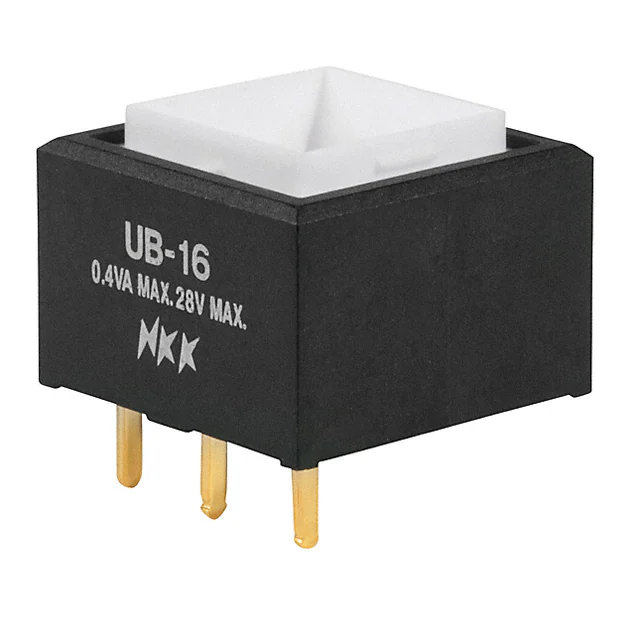

UB16SKG03NSWITCH PUSH SPDT 0.4VA 28V |
19 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
|
PV0H24011SWITCH PB SPST-NO 2A 36V |
38 |
|
Datasheet |
PV0, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | - | Black | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 55°C |
|

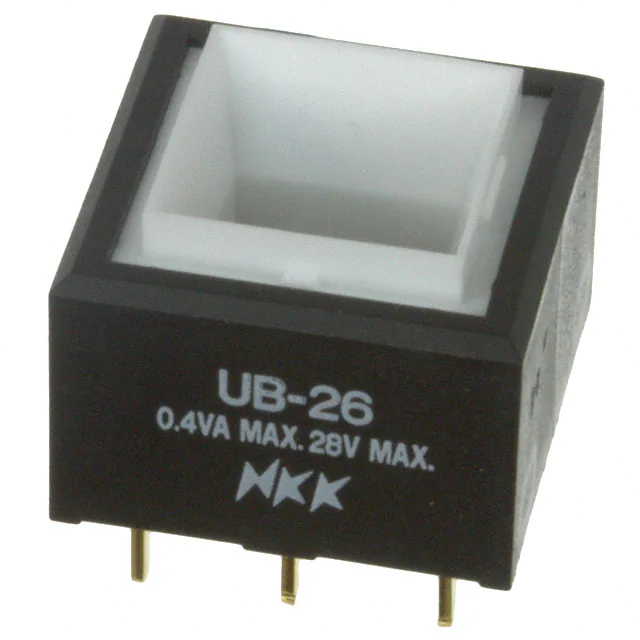

UB26SKG03NSWITCH PUSH DPDT 0.4VA 28V |
40 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Stainless Steel | - | -20°C ~ 70°C |
|
E112SD1AQESWITCH PUSHBUTTON SPDT 4A 125V |
8 |
|
Datasheet |
E010 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
|
HB16SKW01-FMINIATURE PUSHBUTTON/ILLUMINATED |
18 |
|
Datasheet |
HB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 100mA (DC) | 30 V | 30 V | Square, Button | No Marking | Green | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
UB15RKW035FSWITCH PUSHBUTTON SPDT 5A 125V |
12 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|

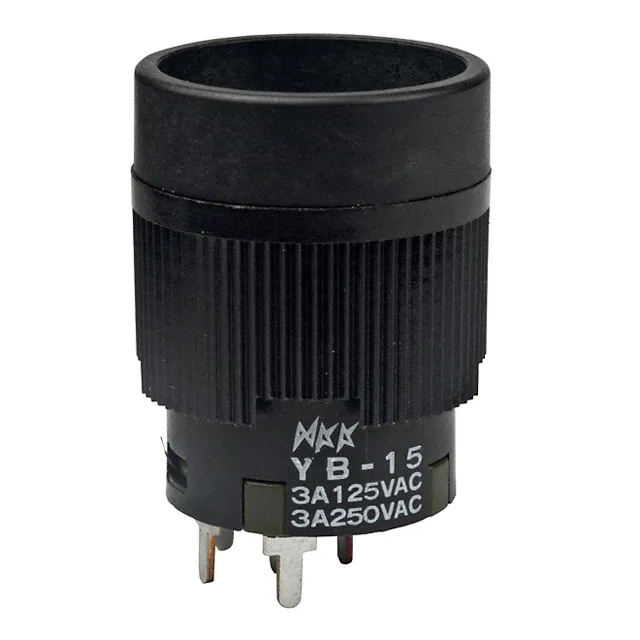

YB15CKW03SWITCH PUSHBUTTON SPDT 3A 125V |
24 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

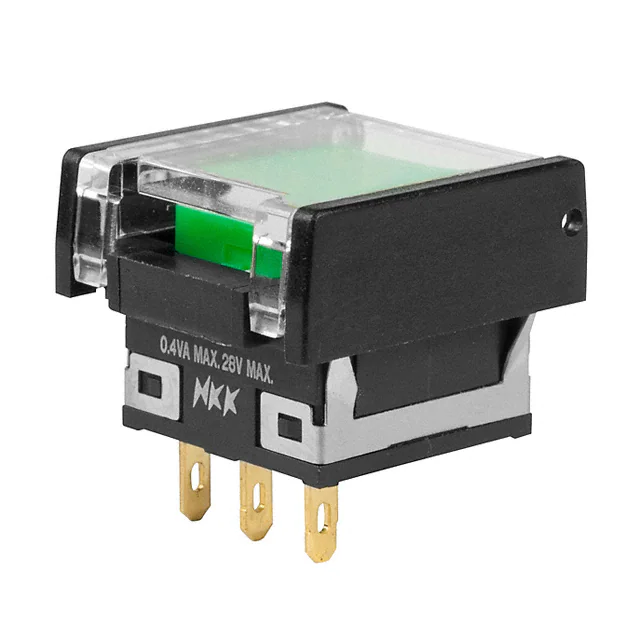

UB15KKG01N-F/AT499SWITCH PUSH SPDT 0.4VA 28V |
17 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Green | - | - | Solder Lug | - | Overtravel, Tactile Feedback | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
|
MBNF15S4G01SNAP-ACTION BUSHING MOUNT PUSHBU |
11 |
|
- |
MB2500 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | - | - | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBN12SS1W01-CABUSHING MOUNT MINIATURE PUSHBUTT |
6 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1241.1106.7097SWITCH PUSH SPST-NO 80MA 24V |
6 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 80mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Black | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
|
KP0215ANAKG03RGBP-1FJBSWITCH PB MINI ILLUMINATED RGB |
20 |
|
Datasheet |
KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|

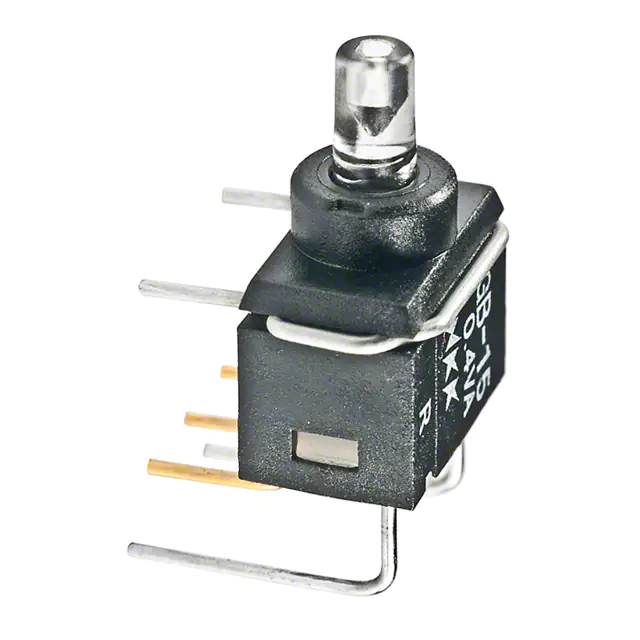

GB15JHCSWITCH PUSH SPDT 0.4VA 28V |
18 |
|
Datasheet |
GB | Box | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Clear | LED, Red | 1.95 VDC | PC Pin | - | - | - | -25°C ~ 55°C |
|

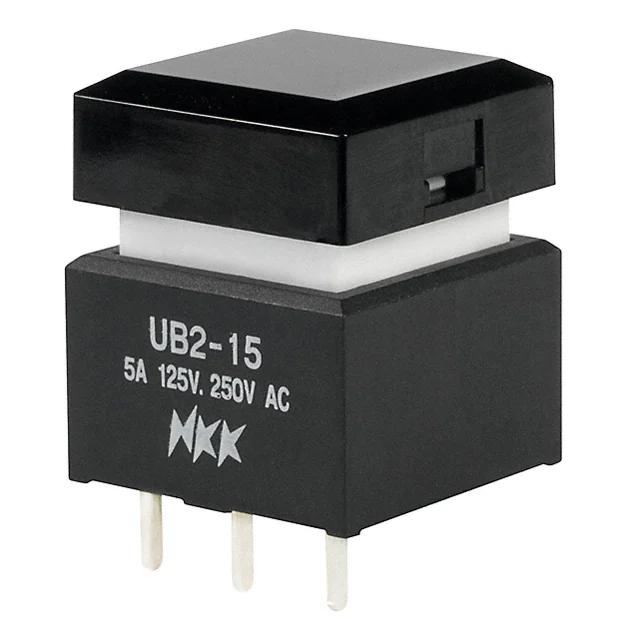

UB215SKW03N-5ASWITCH PUSHBUTTON SPDT 5A 125V |
14 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|

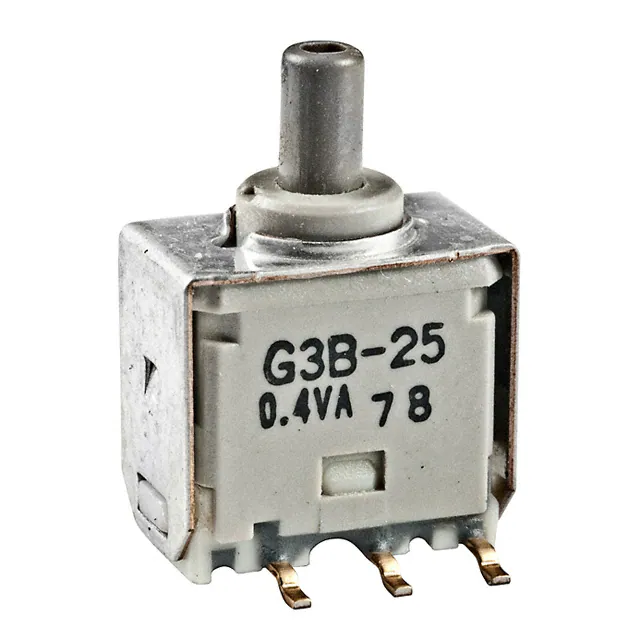

G3B25APSWITCH PUSH DPDT 0.4VA 28V |
41 |
|
Datasheet |
G3B | Tray | Active | Surface Mount | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Gray | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
HB15SKW01SWITCH PUSH SPDT 0.1A 30V |
43 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
HB16SKW01SWITCH PUSH SPDT 0.1A 30V |
39 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
