Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GB25AH-XASWITCH PUSH DPDT 0.4VA 28V |
29 |
|
Datasheet |
GB | Tray | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
G3B15AB-S-XASWITCH PUSH SPDT 0.4VA 28V |
47 |
|
Datasheet |
G3B | Tube | Active | Surface Mount | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
BB25ABSWITCH PUSH DPDT 0.4VA 28V |
53 |
|
Datasheet |
BB | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
BH16NBSBOSWITCH PB SPST 1A 125VAC |
28 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | - | Silver | LED, Orange | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 55°C |
|

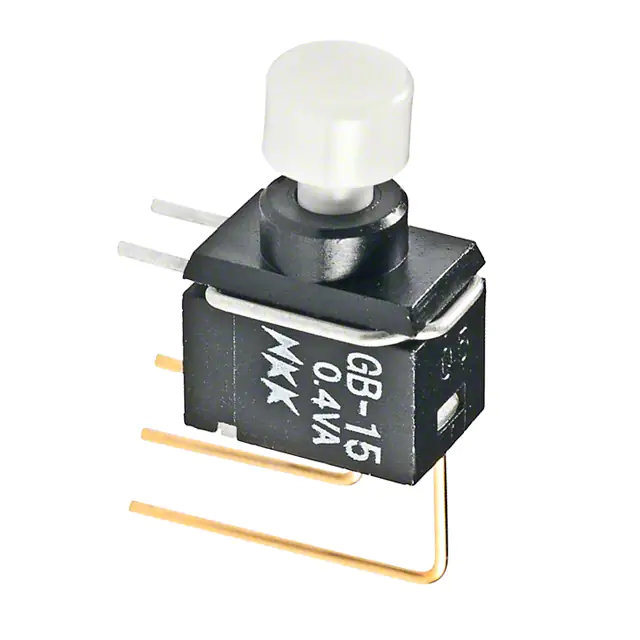

GB15AV-XBSWITCH PUSH SPDT 0.4VA 28V |
97 |
|
Datasheet |
GB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
FC71055P/B SWITCH DPDT ON/OFF/ST |
86 |
|
Datasheet |
4066 | Bag | Active | Panel Mount, Rear | Standard | DPDT | On-On | 4A (AC) | 125 V | - | Round, Button | - | - | - | - | Solder Lug | - | - | - | -20°C ~ 65°C |
|

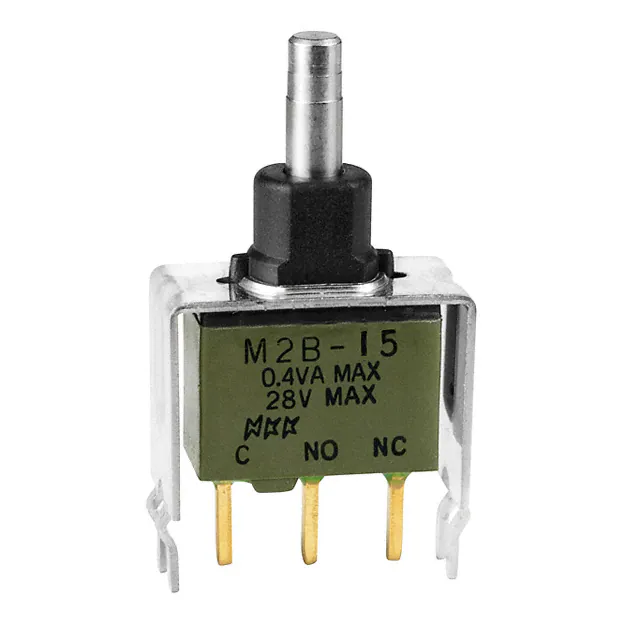

M2B15AA5G13SWITCH PUSH SPDT 0.4VA 28V |
132 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
EB2085PSWITCH PUSHBUTTON DPDT 3A 125V |
90 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
30-15SWITCH PUSH SPST-NO 1A 115V |
72 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC) | 115 V | - | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | Overtravel | Circular - 6.75mm Dia | -40°C ~ 85°C |
|
|
BH16NMUBXSWITCH PB SPST 1A 125VAC |
50 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button | - | Blue | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
BH16NFUBXSWITCH PB SPST 1A 125VAC |
45 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | - | Blue | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
BB25AV-HASWITCH PUSH DPDT 0.4VA 28V |
96 |
|
Datasheet |
BB | Box | Active | Through Hole, Right Angle, Vertical | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|

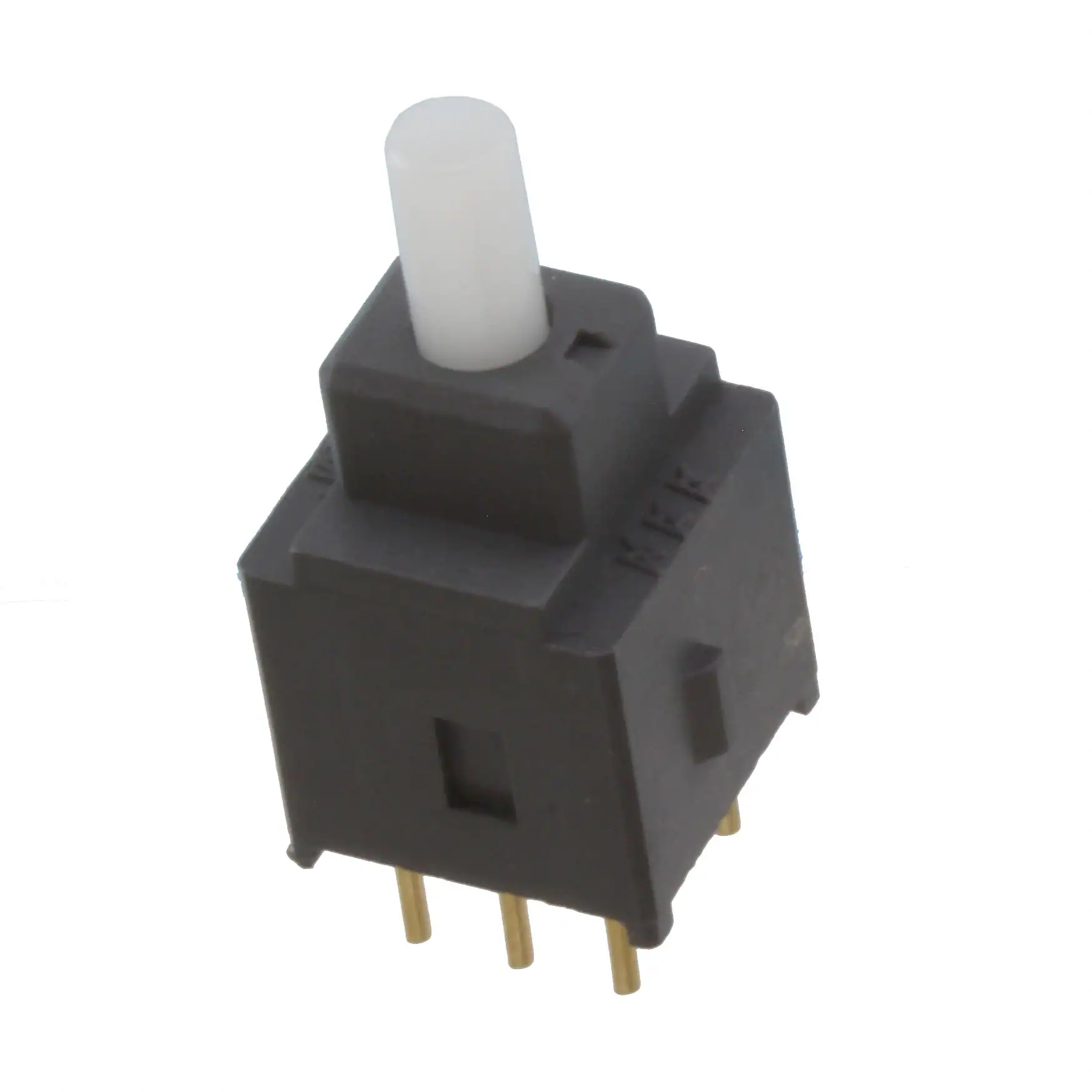

AB25APSWITCH PUSH DPDT 0.4VA 28V |
70 |
|
Datasheet |
AB | Box | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
EB2061-BFSWITCH PUSHBUTTON DPDT 3A 125V |
18 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Green | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

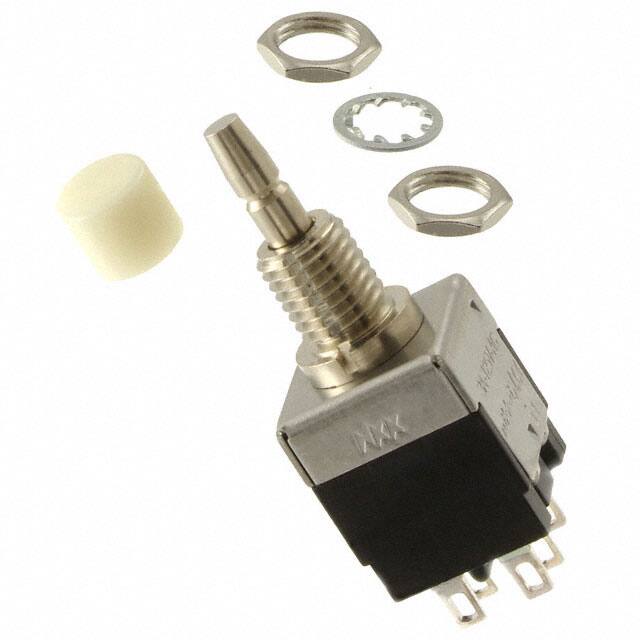

EB2061-CBSWITCH PUSHBUTTON DPDT 3A 125V |
5 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
G3B25AB-SSWITCH PUSH DPDT 0.4VA 28V |
54 |
|
Datasheet |
G3B | Tube | Active | Surface Mount | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Gray | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|

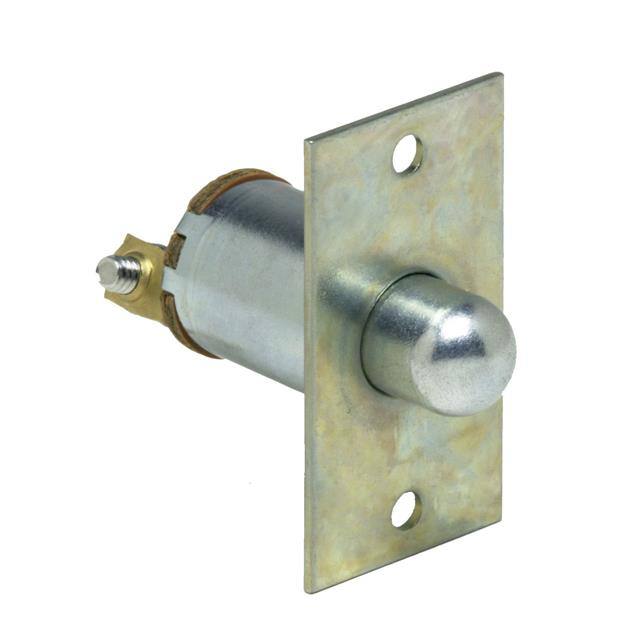

9050-01SWITCH P-P MOM NC 2POS SCW |
96 |
|
Datasheet |
- | Bulk | Active | Chassis Mount | Standard | SPST-NC | On-Mom | 5A (DC) | - | 12 V | Round, Plunger | No Marking | Silver | - | - | Screw Terminal | - | - | - | - |
|
MP0016/RDSWITCH PUSH SPST-NO 1A 28V |
94 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | - | Circular - 6.60mm Dia | -20°C ~ 85°C |
|
UB15SKW03NSWITCH PUSHBUTTON SPDT 5A 125V |
48 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
|
EH12NMSS4ZXSWITCH PB SPST-NO 2A 48V |
40 |
|
Datasheet |
EH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Yellow | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -20°C ~ 70°C |
