Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EH12NMSS3ZXSWITCH PB SPST-NO 2A 48V |
40 |
|
Datasheet |
EH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Red | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
|
HB15CKW01/UMINIATURE PUSHBUTTON/ILLUMINATED |
30 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (DC) | 30 V | 30 V | Round, Button | No Marking | - | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
CTHS15CIC07ALARMSWITCH PUSH CAPACITIVE ILLUM SQ |
89 |
|
Datasheet |
CTH | Tube | Active | Through Hole | Capacitive, Illuminated | - | Off-On | - | - | - | Square, Button | Alarm Symbol | Black | LED, Yellow | 3.2 VDC | PC Pin | - | - | - | - |
|
|
G3B25AP-S-XASWITCH PUSHBUTTON DPDT 0.4VA 28V |
48 |
|
Datasheet |
G3B | Bulk | Active | Surface Mount | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|

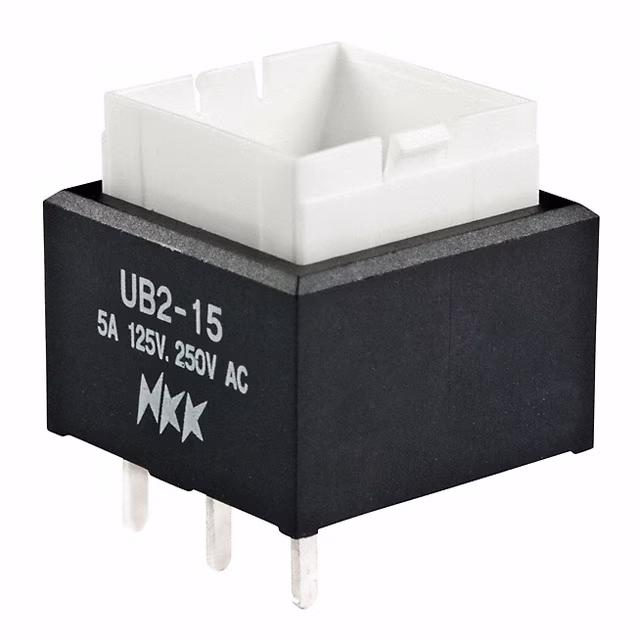

UB215SKW03NSWITCH PUSHBUTTON SPDT 5A 125V |
81 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
|
EB2085-CASWITCH PUSHBUTTON DPDT 3A 125V |
22 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
FHNFSBWNSWITCH PB SPST 2A 48VDC |
29 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Silver | LED, White | 3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHNFSBGNSWITCH PB SPST 2A 48VDC |
28 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Silver | LED, Green | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
A9PS16-0013SWITCH PUSH SPST-NO 0.1A 28V |
91 |
|
Datasheet |
A9PS | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 100mA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | IP64 - Dust Tight, Water Resistant | Sealed - Flux Protection | - | -20°C ~ 80°C |
|
|
BH19NFGBXSWITCH PB SPST 1A 125VAC |
51 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | - | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
|
BH19NMRBXSWITCH PB SPST 1A 125VAC |
41 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button | - | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
|
BH19NMGBXSWITCH PB SPST 1A 125VAC |
40 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button | - | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
|
BH19NRUBXSWITCH PB SPST 1A 125VAC |
40 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button | - | Blue | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
|
BH19NRRBXSWITCH PB SPST 1A 125VAC |
37 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button | - | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
UB15SKG03NSWITCH PUSH SPDT 0.4VA 28V |
52 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
UB15KKW015CSWITCH PUSHBUTTON SPDT 5A 125V |
72 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Overtravel, Tactile Feedback | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
BH19NMBBXSWITCH PB SPST 1A 125VAC |
38 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button | - | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
UB15KKW01NSWITCH PUSHBUTTON SPDT 5A 125V |
98 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Plunger and Panel Seal | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|

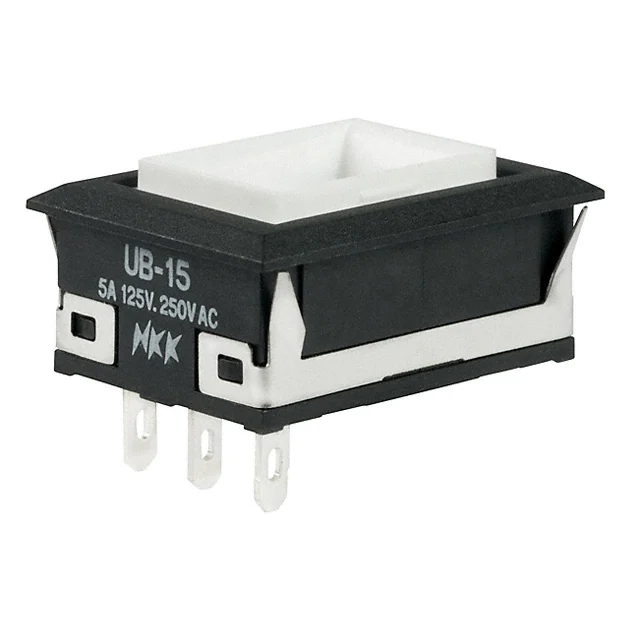

UB15NKW01NSWITCH PUSHBUTTON SPDT 5A 125V |
7 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|

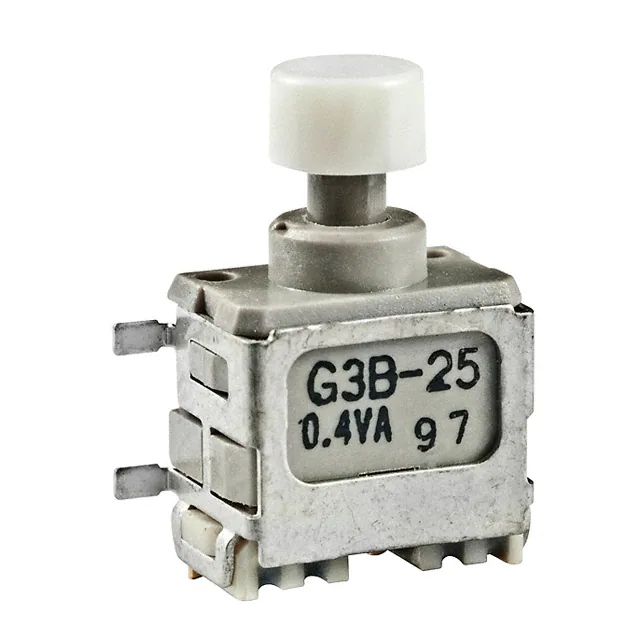

G3B25AH-XBSWITCH PUSH DPDT 0.4VA 28V |
31 |
|
Datasheet |
G3B | Tray | Active | Surface Mount, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
