Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BH19NMBZXSWITCH PB SPST 1A 125VAC |
38 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button | - | Black | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
|
G3B15AP-S-XBULTRA MINIATURE PUSHBUTTON/SMD |
46 |
|
Datasheet |
G3B | Tube | Active | Surface Mount | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
|
GB25AH-XBSWITCH PUSH DPDT 0.4VA 28V |
27 |
|
Datasheet |
GB | Tray | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
BH19NBBBBSWITCH PB SPST 1A 125VAC |
18 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | - | Black | LED, Blue | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
|
MBN12SS1W01BUSHING MOUNT MINIATURE PUSHBUTT |
20 |
|
Datasheet |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | - | - | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
EB2011-BGSWITCH PUSHBUTTON SPDT 3A 125V |
30 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Blue | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

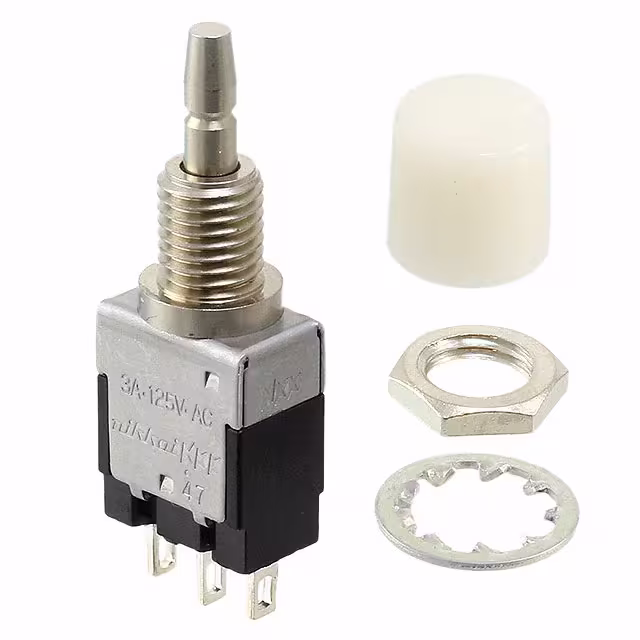

EB2011-BBSWITCH PUSHBUTTON SPDT 3A 125V |
13 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

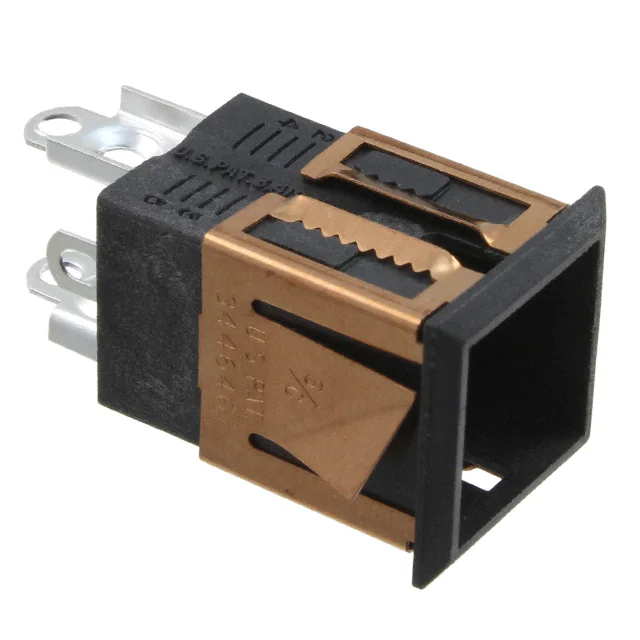

LUS001SWITCH PUSH SPST-NO 0.25A 28V |
72 |
|
Datasheet |
LUS | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 250mA (DC) | - | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Square - 15.70mm x 15.70mm | - |
|
|
MBNR15E1W01SNAP-ACTION BUSHING MOUNT PUSHBU |
71 |
|
- |
MB2400 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Plunger for Cap | - | - | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
CTHS15CIC01ONOFFSWITCH PUSH CAPACITIVE ILLUM SQ |
98 |
|
Datasheet |
CTH | Tube | Active | Through Hole | Capacitive, Illuminated | - | Off-On | - | - | - | Square, Button | Power Symbol | Black | LED, Red | 3.2 VDC | PC Pin | - | - | - | - |
|
CTHS15CIC04ARROWSWITCH PUSH CAPACITIVE ILLUM SQ |
86 |
|
Datasheet |
CTH | Tube | Active | Through Hole | Capacitive, Illuminated | - | Off-On | - | - | - | Square, Button | Arrow, Right | Black | LED, White | 3.2 VDC | PC Pin | - | - | - | - |
|

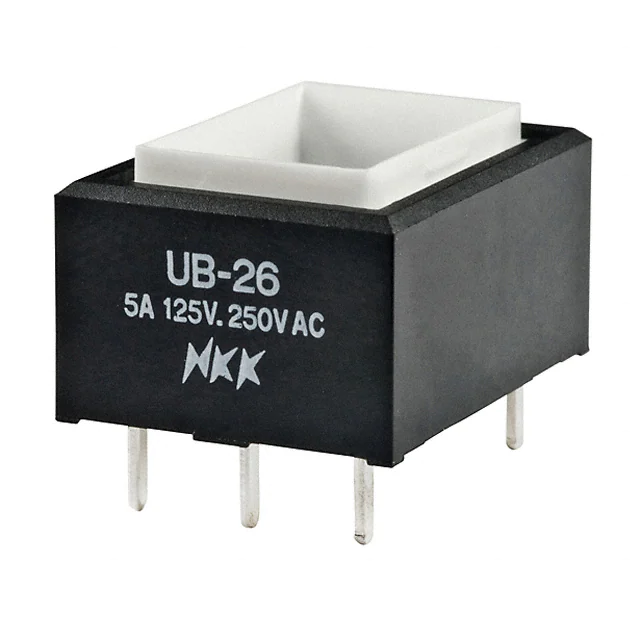

UB26RKW03NSWITCH PUSHBUTTON DPDT 5A 125V |
12 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Stainless Steel | - | -20°C ~ 70°C |
|
HB215SKG03CFSWITCH PUSH SPST-NO 0.4VA 28V |
33 |
|
Datasheet |
HB2 | Box | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green/Red | 2.0, 2.25 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
G3B15AB-XBSWITCH PUSH SPDT 0.4VA 28V |
30 |
|
Datasheet |
G3B | Tray | Active | Surface Mount | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|

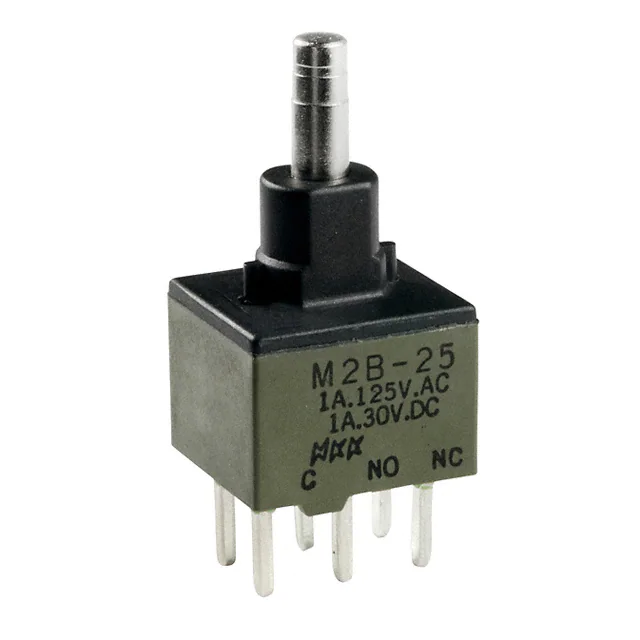

M2B25AA5W03SWITCH PUSHBUTTON DPDT 1A 125V |
18 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
FHNESBYNSWITCH PB SPST 2A 48VDC |
23 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Silver | LED, Yellow | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHNESBONSWITCH PB SPST 2A 48VDC |
19 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Silver | LED, Orange | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHNEBBRNSWITCH PB SPST 2A 48VDC |
19 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Black | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHNBSBWNSWITCH PB SPST 2A 48VDC |
16 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, White | 3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -25°C ~ 55°C |
|

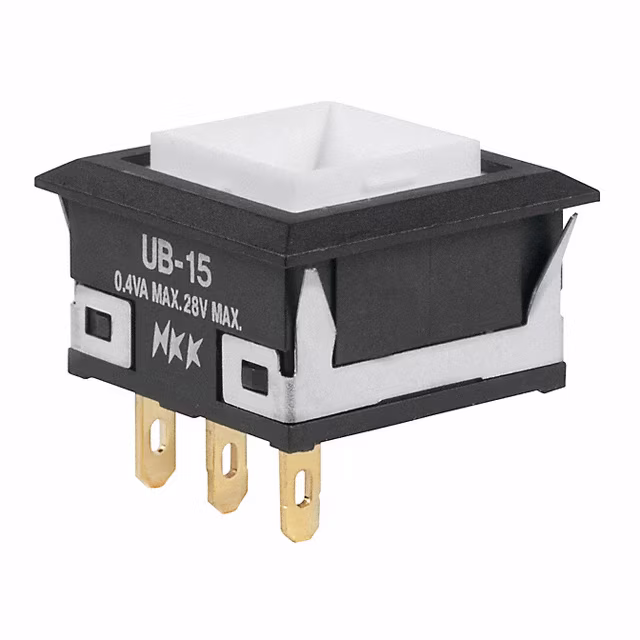

UB15KKG01NSWITCH PUSH SPDT 0.4VA 28V |
90 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
