Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBN15LS1W01-BABUSHING MOUNT MINIATURE PUSHBUTT |
8 |
|
Datasheet |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
70-220.2SSWITCHING ELEMENT WITH ILLUMINAT |
9 |
|
Datasheet |
70 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 42 V | Plunger for Cap | - | - | LED, Red | 2 VDC | PC Pin | - | - | - | - |
|

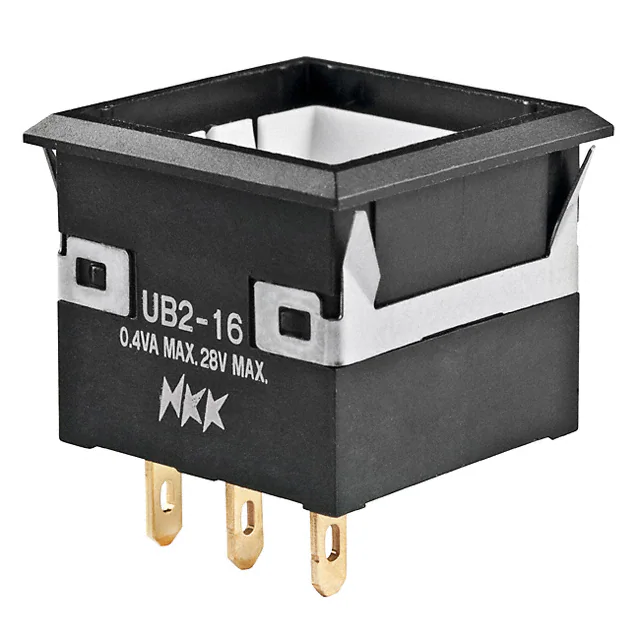

UB216KKG01NSWITCH PUSH SPDT 0.4VA 28V |
9 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
E112SD1V3QESWITCH PUSHBUTTON SPDT 4A 125V |
79 |
|
Datasheet |
E010 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
|
PV6FW4011-341ANTI-VANDAL, 2A, SPST, BLUE |
64 |
|
Datasheet |
PV6 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Black | LED, Blue | 2.8 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
CH1NCBB24SWITCH PB SPDT 1A 125VAC |
17 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Blue | 24 VDC | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
EB2061-F-J21FSWITCH PUSHBUTTON DPDT 3A 125V |
20 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Green | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
|
EB2061-B-J21BSWITCH PUSHBUTTON DPDT 3A 125V |
30 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
UB15KKW015DSWITCH PUSHBUTTON SPDT 5A 125V |
86 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | Solder Lug | - | Overtravel, Tactile Feedback | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
UB15KKW015FSWITCH PUSHBUTTON SPDT 5A 125V |
60 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | Photo Interrupter | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
BH16NBSBYSWITCH PB SPST 1A 125VAC |
21 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | - | Silver | LED, Yellow | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
BH16NBSBWSWITCH PB SPST 1A 125VAC |
15 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | - | Silver | LED, White | 3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
GHNDUBXSWITCH PB SPDT 2A 48VDC |
15 |
|
Datasheet |
GH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | On-Mom | 2A (DC) | - | 48 V | Round, Button | - | Blue | - | - | Solder Lug | IP40 | - | Circular - 10.00mm Dia | -25°C ~ 55°C |
|
|
GHNDRBXSWITCH PB SPDT 2A 48VDC |
14 |
|
Datasheet |
GH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | On-Mom | 2A (DC) | - | 48 V | Round, Button | - | Red | - | - | Solder Lug | IP40 | - | Circular - 10.00mm Dia | -25°C ~ 55°C |
|
|
MBN15SS1W01-BCBUSHING MOUNT MINIATURE PUSHBUTT |
14 |
|
Datasheet |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
GHNESBWNSWITCH PB SPDT 2A 48VDC |
23 |
|
Datasheet |
GH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | On-Mom | 2A (DC) | - | 48 V | Round, Button | - | Silver | LED, White | 3 VDC | Solder Lug | IP40 | Stainless Steel | Circular - 10.00mm Dia | -25°C ~ 55°C |
|
|
CH1NDBSSWITCH PB SPDT 1A 125VAC |
14 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button | - | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
CH1NDSSSWITCH PB SPDT 1A 125VAC |
9 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button | - | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
MBN15SS4W01-CABUSHING MOUNT MINIATURE PUSHBUTT |
23 |
|
Datasheet |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | - | Black | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBN15SS4W01-CCBUSHING MOUNT MINIATURE PUSHBUTT |
12 |
|
Datasheet |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | - | Red | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
