Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AV031003C240NSWITCH PUSH SPST-NO 2A 48V |
20 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP54 - Dust Protected, Water Resistant | - | Circular - 22.20mm Dia | -30°C ~ 70°C |
|
|
AV19LP407SWITCH PUSHBUTTON SPDT 5A 125V |
20 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Sealed - Fully | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
FDAP1F1482F13SWITCH PUSHBUTTON SPST 200MA 12V |
17 |
|
Datasheet |
FD | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 200mA (DC) | - | 12 V | Round, Button | START/STOP (Alternating) | Black | LED, Green/Red | 12 VDC | Solder Lug | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 24.20mm Dia | -40°C ~ 75°C |
|
1241.3258SWITCH PUSH SPST-NO 100MA 42V |
19 |
|
Datasheet |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.10mm Dia | -40°C ~ 85°C |
|
1241.3261SWITCH PUSH SPST-NO 100MA 42V |
17 |
|
Datasheet |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 24 VDC | Connector | IP67 - Dust Tight, Waterproof | - | Circular - 22.10mm Dia | -40°C ~ 85°C |
|
|
PBAR1AF2000A0GSWITCH PUSH SPST-NO 0.2A 24V |
18 |
|
Datasheet |
PBA | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Green | 5 VDC | Wire Leads | IP68 - Dust Tight, Waterproof | Low Temperature Lubricant | Circular - 16.20mm Dia | -40°C ~ 75°C |
|
82-6657.2134SWITCH PB SPDT 3A 240V |
2 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Green | 24 VAC/DC | Connector | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
XB7NJ04M1ILLUMINATED PUSH BUTTON, HARMONY |
9 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 230 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
PN1L-M2AFB002D0S30MM PIEZO RING 12VDC RED |
3 |
|
- |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
|
|
AV031003C940KSWITCH PUSH SPST-NO 2A 48V |
19 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | Sealed - Fully | Circular - 22.20mm Dia | -30°C ~ 70°C |
|
1.22.392.000/2000SWITCH PUSHBUTTON SPST-NO 100MA |
2 |
|
Datasheet |
- | Bulk | Active | Free Hanging | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | - | - | Round, Button, Flush | No Marking | White | LED, White | - | Connector | IP65 - Dust Tight, Water Resistant | Control Box Enclosure | - | -25°C ~ 70°C |
|
AV19LB407SWITCH PUSHBUTTON SPDT 5A 125V |
3 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Domed | No Marking | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Sealed - Fully | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV09C703D240ESWITCH PUSH SPST-NO 0.05A 24V |
20 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP54 - Dust Protected, Water Resistant | - | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
1.11.011.001/0330SWITCH PUSH SPST-NO 100MA 35V |
12 |
|
Datasheet |
RAMO 30 T | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 35 V | Round, Button, Flush | No Marking | Red | LED, Red | 24 VDC | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 30.30mm Dia | -25°C ~ 70°C |
|
XB5AW3565ILLUMINATED PUSH BUTTON, HARMONY |
5 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Orange | LED, Orange | 250 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

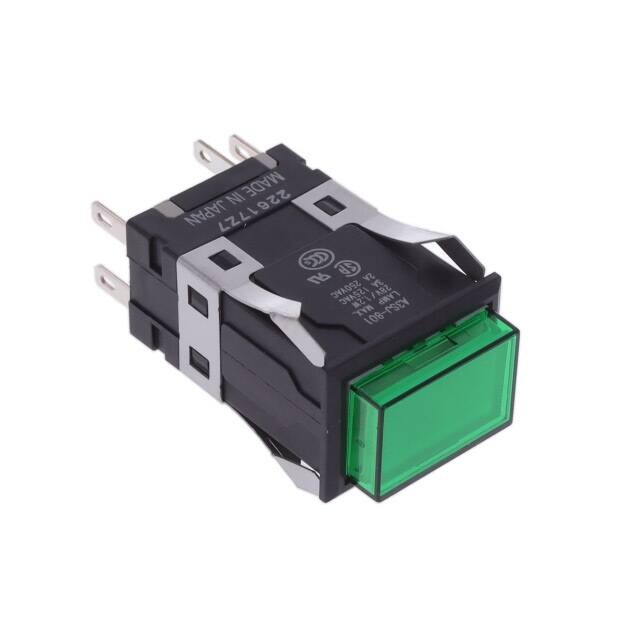

A3SJ-90A124EGSWITCH PUSHBUTTON SPDT 3A 125V |
7 |
|
Datasheet |
A3S | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Green | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Rectangular - 22.40mm x 16.20mm | -10°C ~ 50°C |
|
1241.3012SWITCH PUSH SPST-NO 100MA 42V |
2 |
|
Datasheet |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 30.30mm Dia | -40°C ~ 85°C |
|
ZB5AW0M13COMPLETE BODY/CONTACT ASSEMBLY A |
5 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button (Not Included) | - | White | LED, White | 230 ~ 240 VAC | Screw Terminal | - | - | - | -40°C ~ 70°C |
|
1241.3189SWITCH PUSH SPST-NO 100MA 42V |
20 |
|
Datasheet |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 30.30mm Dia | -40°C ~ 85°C |
|
|
AV091003C240TSWITCH PUSH SPST-NO 2A 48V |
16 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Sealed - Fully | Circular - 19.20mm Dia | -30°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
