Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
07-21SWITCH PUSH SPST-NO 10A 115V |
19 |
|
Datasheet |
7 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 10A (AC) | 115 V | - | Round, Plunger | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | -40°C ~ 85°C |
|
XB6CW5B5BCOMPLETE ILLUMINATED PUSH BUTTON |
4 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Square, Button | - | Yellow | LED, Yellow | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

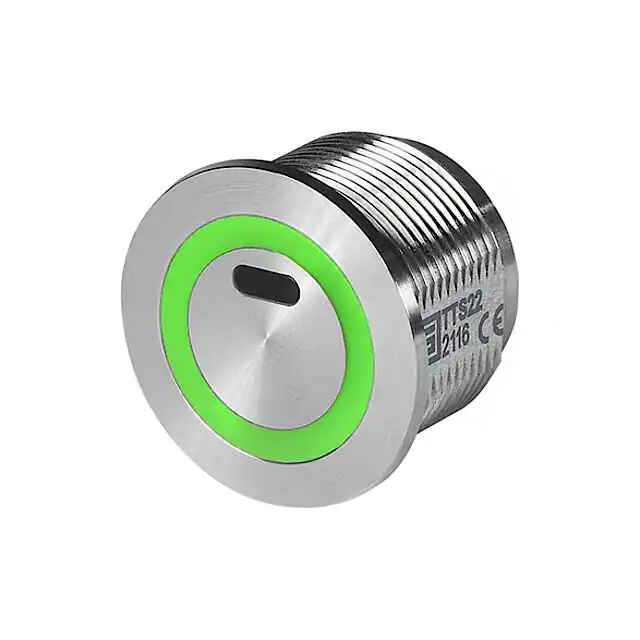

3-131-894TTS 22 SWITCH NO 100MA 06 RI 0RG |
3 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.10mm Dia | -30°C ~ 85°C |
|
1.10.010.301/0201SWITCH PUSH SPST-NO 100MA 35V |
9 |
|
Datasheet |
RAMO 22 T | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 35 V | Round, Button, Flush | No Marking | White | LED, White | 24 VDC | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
ZB5AW0M11COMPLETE BODY/CONTACT ASSEMBLY A |
5 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button (Not Included) | - | White | LED, White | 230 ~ 240 VAC | Screw Terminal | - | - | - | -40°C ~ 70°C |
|
1241.3250SWITCH PUSH SPST-NO 100MA 42V |
20 |
|
Datasheet |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.10mm Dia | -40°C ~ 85°C |
|
PBAR2AF1000SWITCH PUSH SPST-NO 0.2A 24V |
20 |
|
Datasheet |
PBA | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Blue | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | Low Temperature Lubricant | Circular - 22.20mm Dia | -40°C ~ 75°C |
|
PW1L-RYAFB002D0Y22MM PIEZO THIN RING 12VDC YEL |
6 |
|
Datasheet |
PW1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Yellow | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.20mm Dia | -40°C ~ 75°C |
|

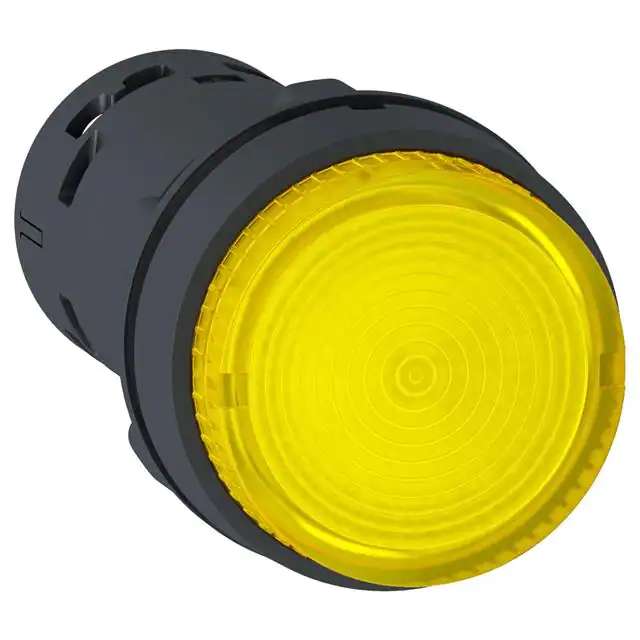

XB7NW38B1HARMONY XB7, MONOLITHIC ILLUMINA |
8 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Yellow | LED, Yellow | 24 VDC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
XB7NW34M1HARMONY XB7, MONOLITHIC ILLUMINA |
8 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 230 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
1241.3257SWITCH PUSH SPST-NO 100MA 42V |
4 |
|
Datasheet |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.10mm Dia | -40°C ~ 85°C |
|
1241.3254SWITCH PUSH SPST-NO 100MA 42V |
20 |
|
Datasheet |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Connector | IP67 - Dust Tight, Waterproof | - | Circular - 22.10mm Dia | -40°C ~ 85°C |
|
|
1241.3318SWITCH PUSHBUTTON |
20 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
AV09C7L3D2006SWITCH PUSH SPST-NO 0.05A 24V |
19 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 2 VDC | Solder Lug | IP54 - Dust Protected, Water Resistant | - | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
PN1L-M4AFB002E0S30MM PIEZO RING 24VDC RED |
8 |
|
Datasheet |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
|

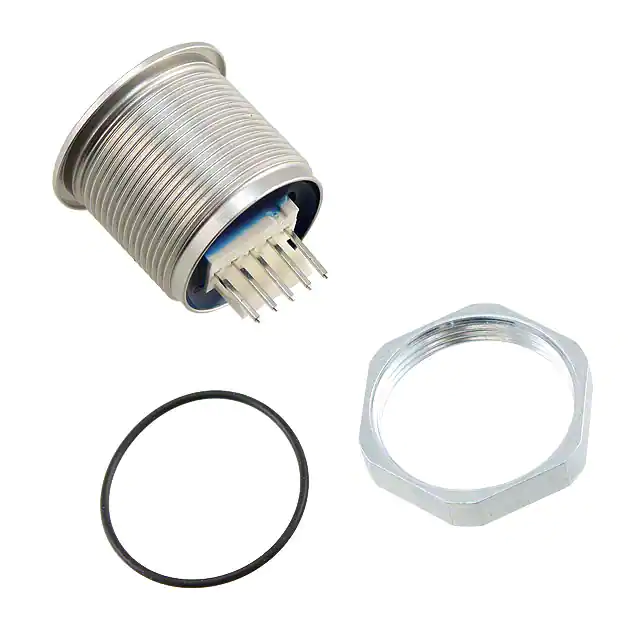

1241.3255SWITCH PUSH SPST-NO 100MA 42V |
20 |
|
Datasheet |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 12 VDC | Connector | IP67 - Dust Tight, Waterproof | - | Circular - 22.10mm Dia | -40°C ~ 85°C |
|
PN1L-M2AFB002D0B30MM PIEZO RING 12VDC BLUE |
16 |
|
Datasheet |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
|
|
PN1L-M2AFB002E0Y30MM PIEZO RING 24VDC YELLOW |
8 |
|
Datasheet |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Yellow | 24 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
|
|
PN1L-M2AFB002D2A30MM PIEZO RING 12VDC RED-GRE |
7 |
|
Datasheet |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
|
|
PBAR2AF2000L0SSWITCH PUSH SPST-NO 0.2A 24V |
19 |
|
Datasheet |
PBA | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Red | 5 VDC | Wire Leads | IP68 - Dust Tight, Waterproof | Mechanical Timer | Circular - 22.20mm Dia | -40°C ~ 75°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
